Specification： | |||||
Bore size: | 10 | 16 | 20 | 25 | 32 |
Acting type: | Double Acting | ||||
Fluid: | Air(to be filtered by a 40μm filter element) | ||||
Operating Pressure: | 0.2~1.0MPa | 0.15~1.0MPa | |||
Proof pressure: | 1.5MPa（215psi） | ||||
Temperature（℃）: | -20~70 | ||||
Speed range (mm/s): | 30~500 | ||||
Adjustable Stroke(mm): | -5~0 | ||||
Cushion Type: | Burmper | ||||
Non-rotating Tolerance: | ±0.4° | ±0.3° | |||
Port Size： | M5X0.8 | PT1/8 | |||

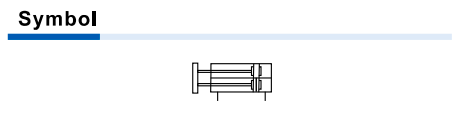

Compact Body. High Stability. Anti-Rotation Design.

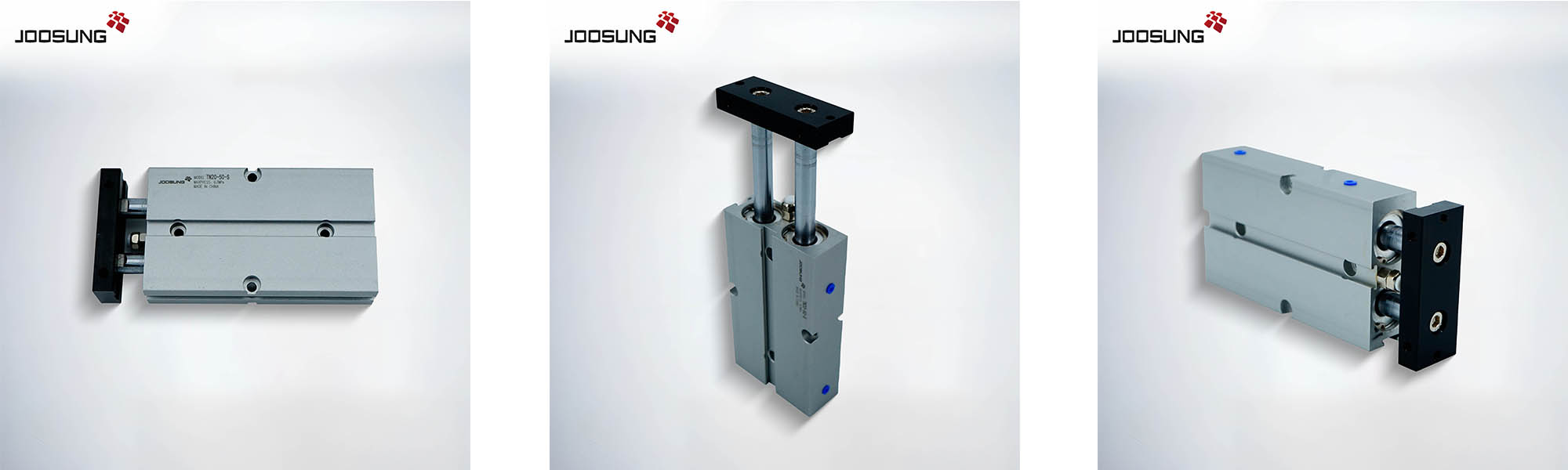

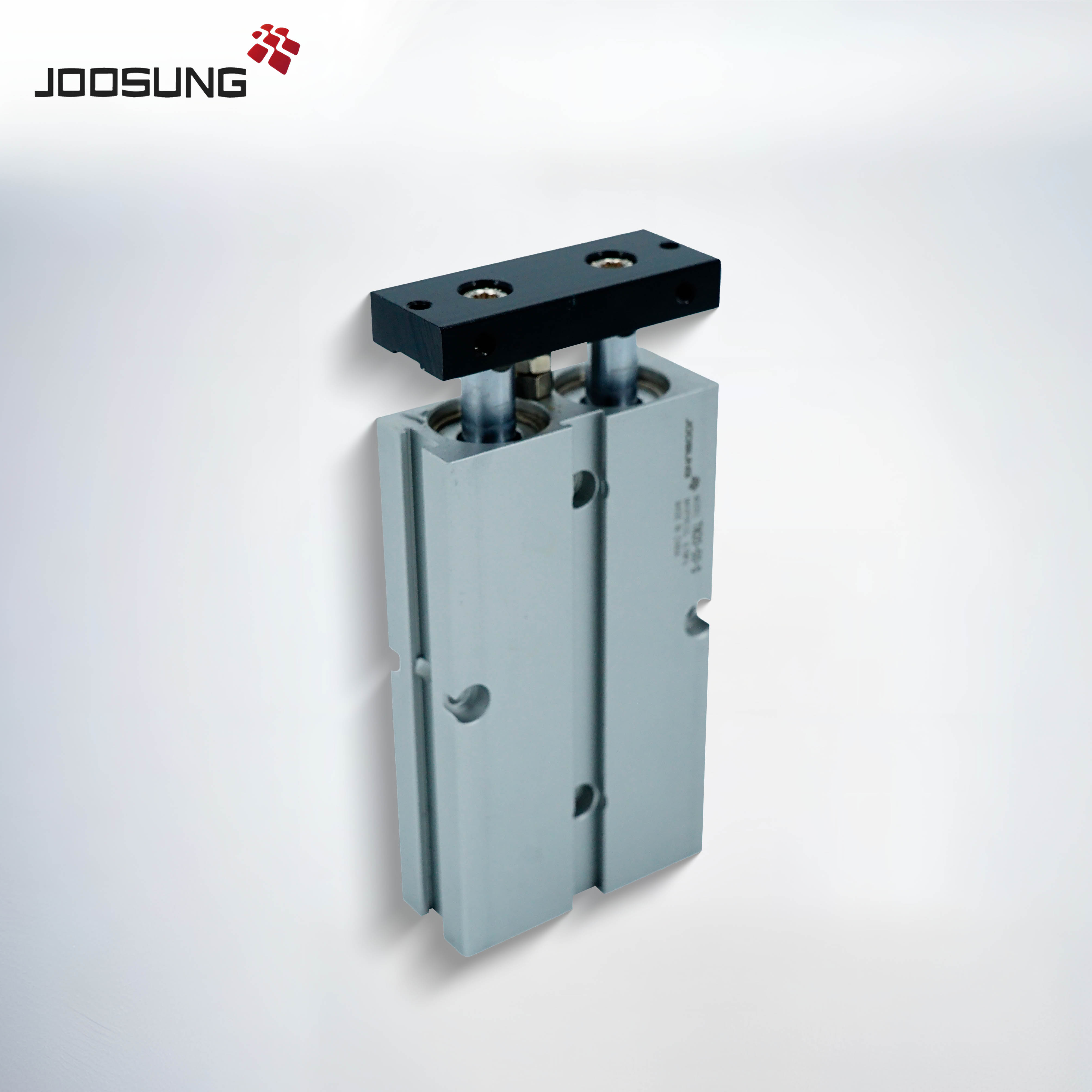

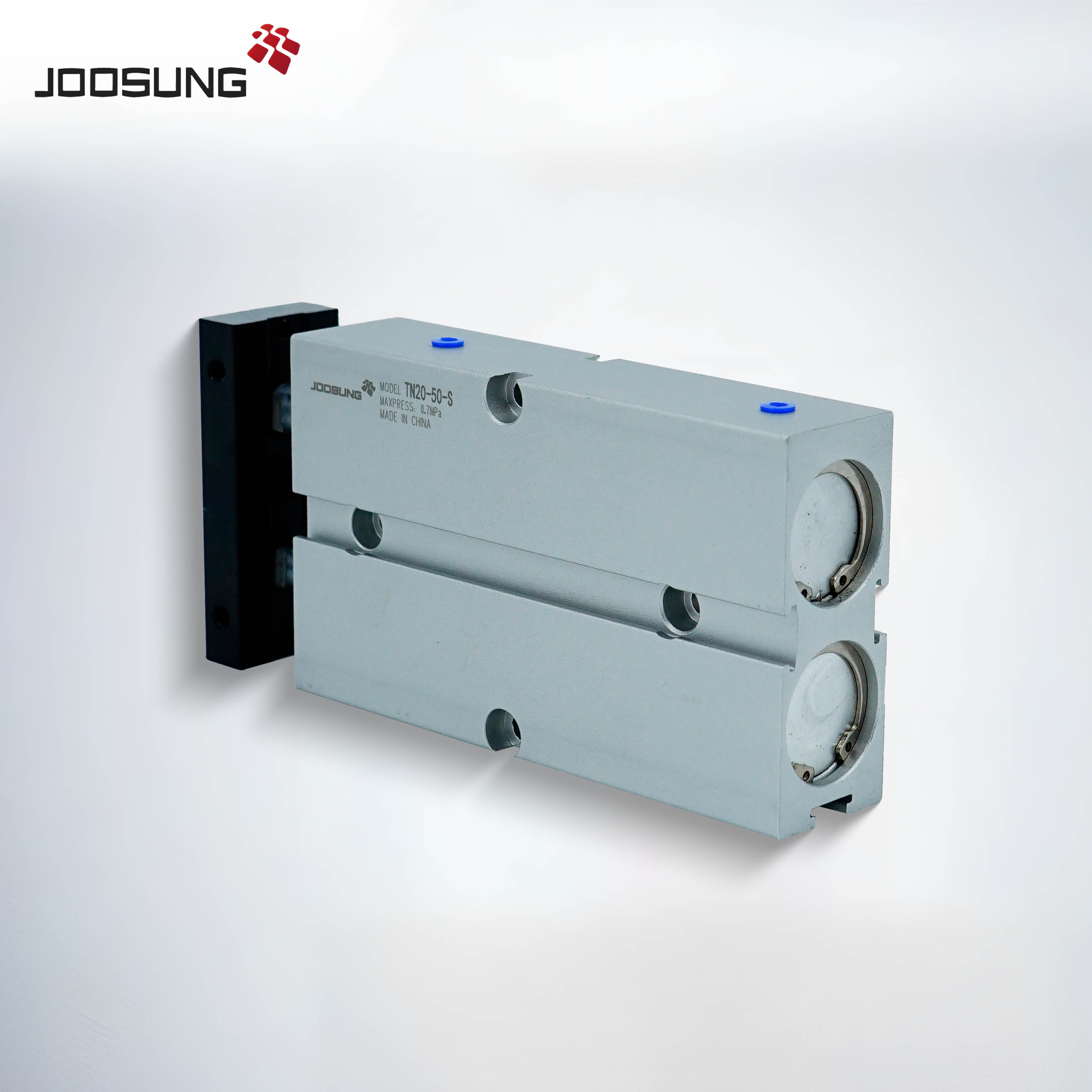

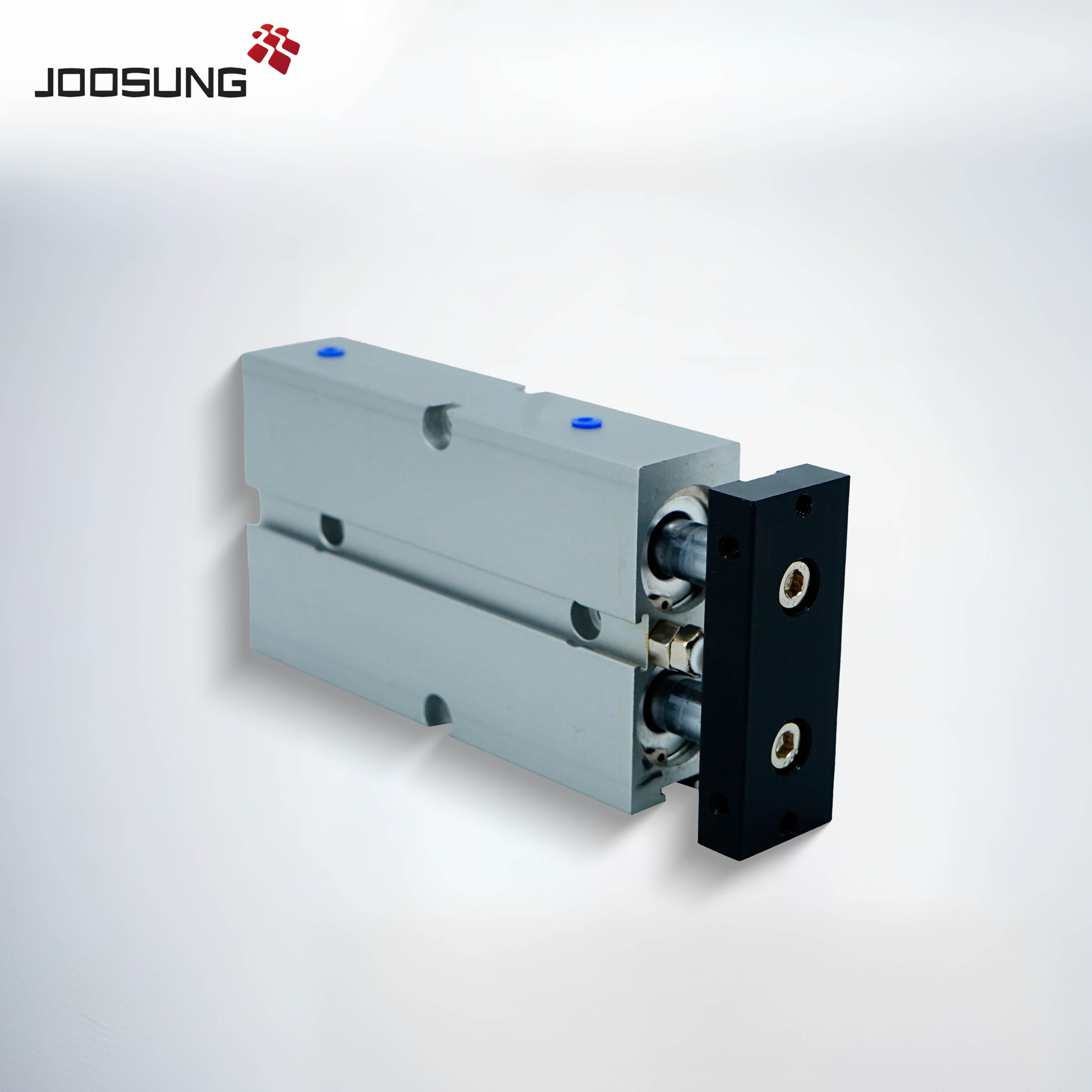

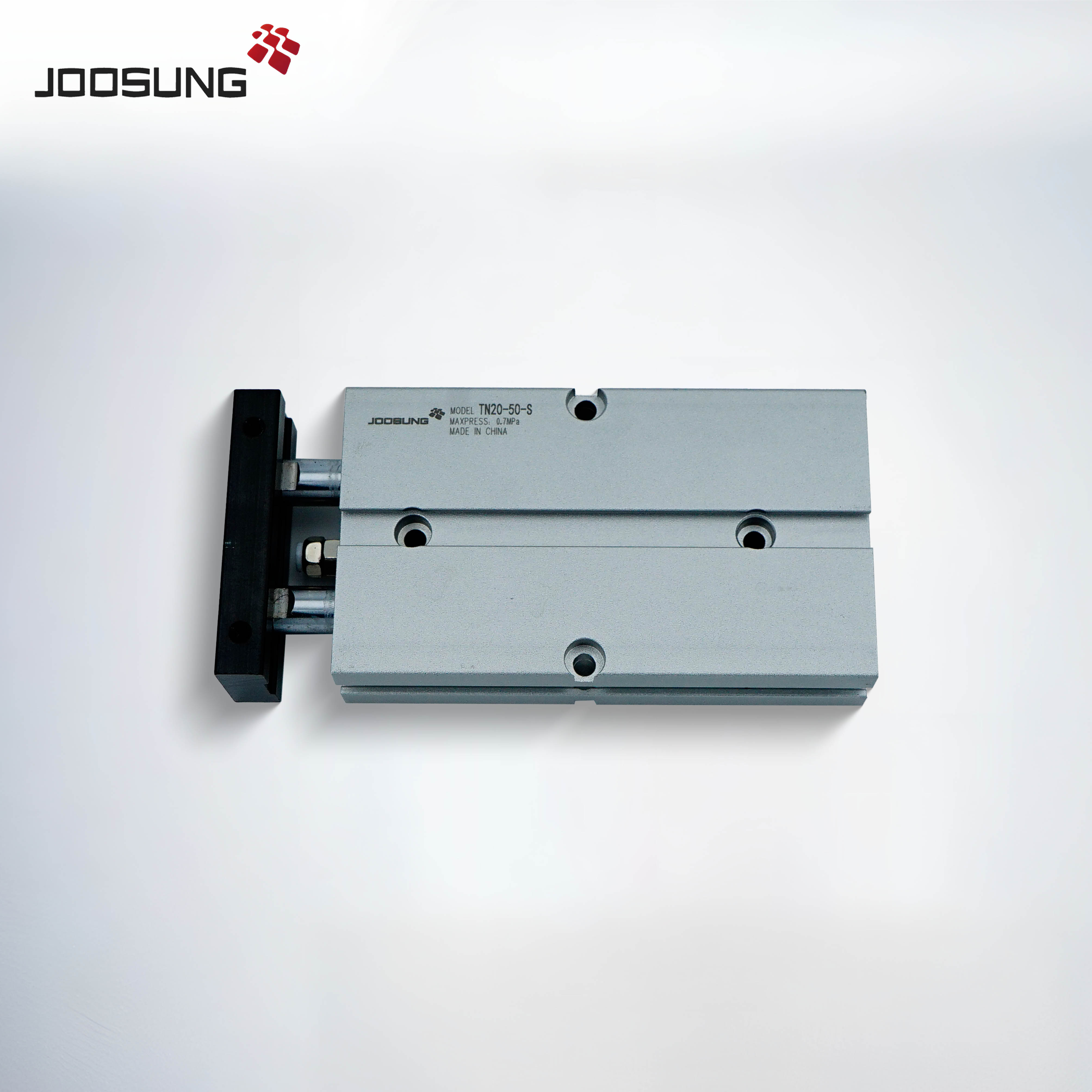

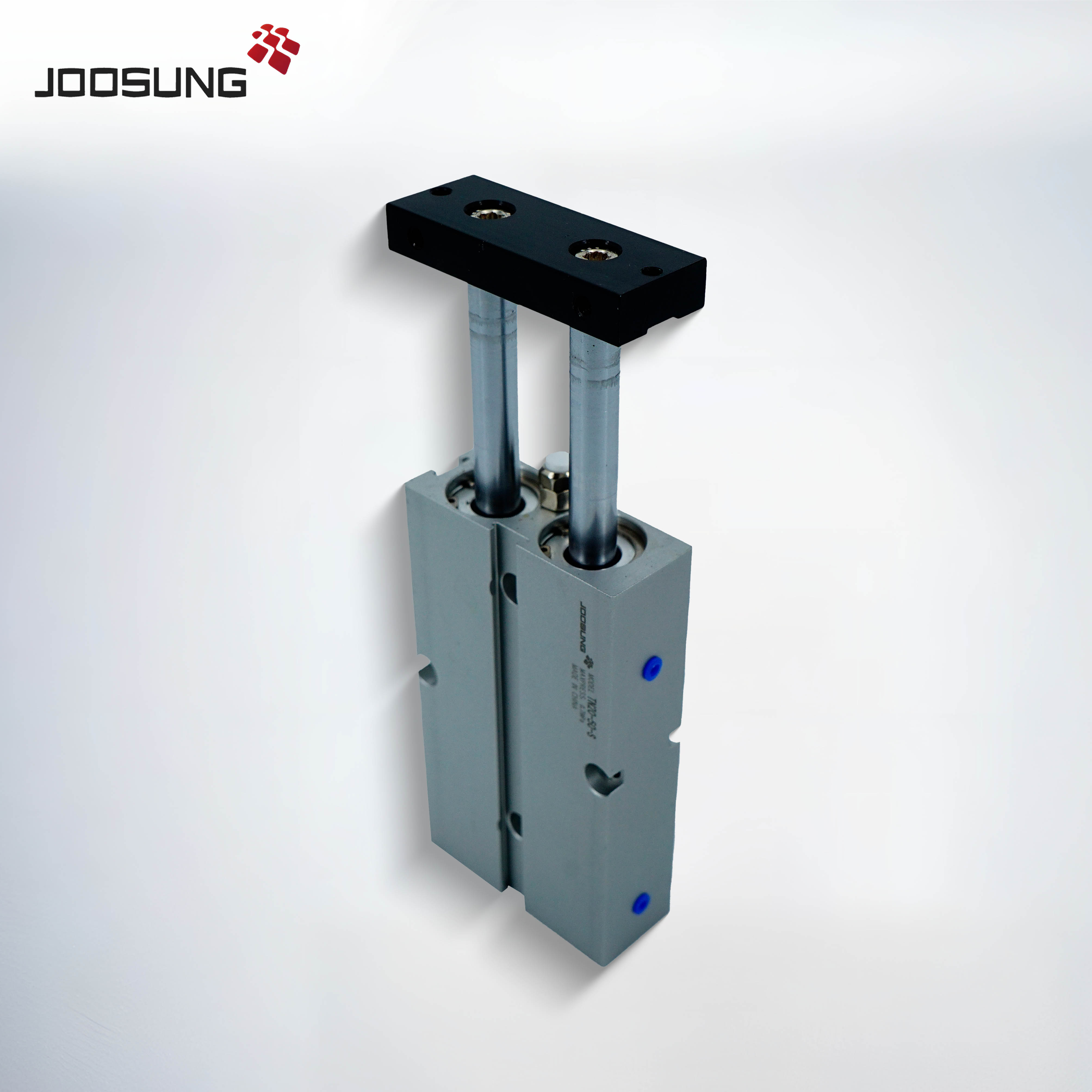

The TN Series Twin-Rod Pneumatic Cylinder is a compact, high-performance actuator designed for precise linear motion in tight automation setupsin double acting type. It features two parallel guide rods for improved stability and strong resistance to rotation, making it ideal for accurate pushing, lifting, and clamping applications. Fully compliant with standards, the TN cylinder is trusted across industries for its durability and easy installation.
Compact & Space-Saving Design
Embedded mounting style reduces overall installation space.
Stable Twin-Rod Construction
Dual guide rods deliver strong support, resist side loads, and prevent piston rod rotation.
Multiple Mounting Surfaces
Mounting holes on three sides allow flexible and secure installation.
Adjustable Stroke Bumper
Built-in bumper helps reduce impact at end stroke and allows fine-tuning.
Standard Magnetic Piston
All models come with magnet-compatible pistons for sensor integration. Non-magnetic versions are not available.
The TN Series Twin-Rod Pneumatic Cylinder is widely used in:
Precision positioning and clamping systems
Compact pick-and-place automation setups
Vertical pushing or lifting in confined spaces
Packaging, testing, and sorting machinery
Equipment that needs strong anti-rotation support
JoosungAuto is a professional pneumatic cylinder manufacturer more than 10 years based in China, offering a full line of standard air cylinders, valves, and fittings for automation industries. Our TN Series Twin-Rod Pneumatic Cylinders are built for performance, reliability, and global compatibility.
With strong OEM support, fast production, and flexible customization, JoosungAuto provides stable, affordable, and globally compatible pneumatic solutions.
Looking for a compact and durable pneumatic cylinder with enhanced precision and stability? The TN Series Twin-Rod Pneumatic Cylinder or Double Acting Types Cylinders is your trusted choice for advanced automation systems.
Visit us:
www.joosungauto.com
www.autojoosung.com
Email:bob@joosungauto.com
WhatsApp: +86 137 8010 1113
#TN #TwinRodCylinder #DoubleActingCylinder #PneumaticCylinder #AutomationCylinder #JoosungAuto #OEMPneumatics #AirCylinders #CompactCylinder

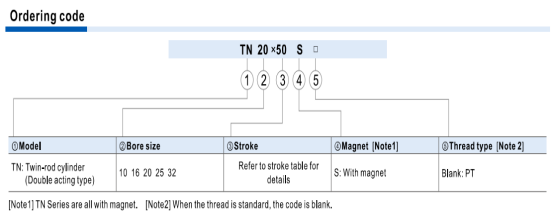

Series Model | Available Models |
TN10 Series | TN10-10S, TN10-20S, TN10-30S, TN10-40S, TN10-50S, TN10-60S, TN10-70S, TN10-80S, TN10-90S, TN10-100S |
TN16 Series | TN16-10S, TN16-20S, TN16-30S, TN16-40S, TN16-50S, TN16-60S, TN16-70S, TN16-80S, TN16-90S, TN16-100S, TN16-125S, TN16-150S, TN16-175S, TN16-200S |
TN20 Series | TN20-10S, TN20-20S, TN20-30S, TN20-40S, TN20-50S, TN20-60S, TN20-70S, TN20-80S, TN20-90S, TN20-100S, TN20-125S, TN20-150S, TN20-175S, TN20-200S |
TN25 Series | TN25-10S, TN25-20S, TN25-30S, TN25-40S, TN25-50S, TN25-60S, TN25-70S, TN25-80S, TN25-90S, TN25-100S, TN25-125S, TN25-150S, TN25-175S, TN25-200S |
TN32 Series | TN32-10S, TN32-20S, TN32-30S, TN32-40S, TN32-50S, TN32-60S, TN32-70S, TN32-80S, TN32-90S, TN32-100S, TN32-125S, TN32-150S, TN32-175S, TN32-200S |
