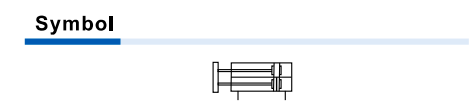

Specification： | ||||||
Bore size: | 6 | 10 | 16 | 20 | 25 | 32 |
Acting type: | Double Acting | |||||
Fluid: | Air(to be filtered by a 40μm filter element) | |||||
Operating Pressure: | 0.2~1.0MPa | 0.15~1.0MPa | ||||
Proof pressure: | 1.5MPa（215psi） | |||||
Temperature（℃）: | -20~70 | |||||
Speed rang (mm/s): | 30~500 | |||||
Adjustable Stroke(mm): | -5~0 | |||||
Cushion Type: | Burmper | |||||
Non-rotating Tolerance: | ±0.2° | ±0.15° | ±0.1° | |||
Port Size： | M5X0.8 | PT1/8 | ||||
High Precision. Strong Side Load Support. Anti-Rotation Design.

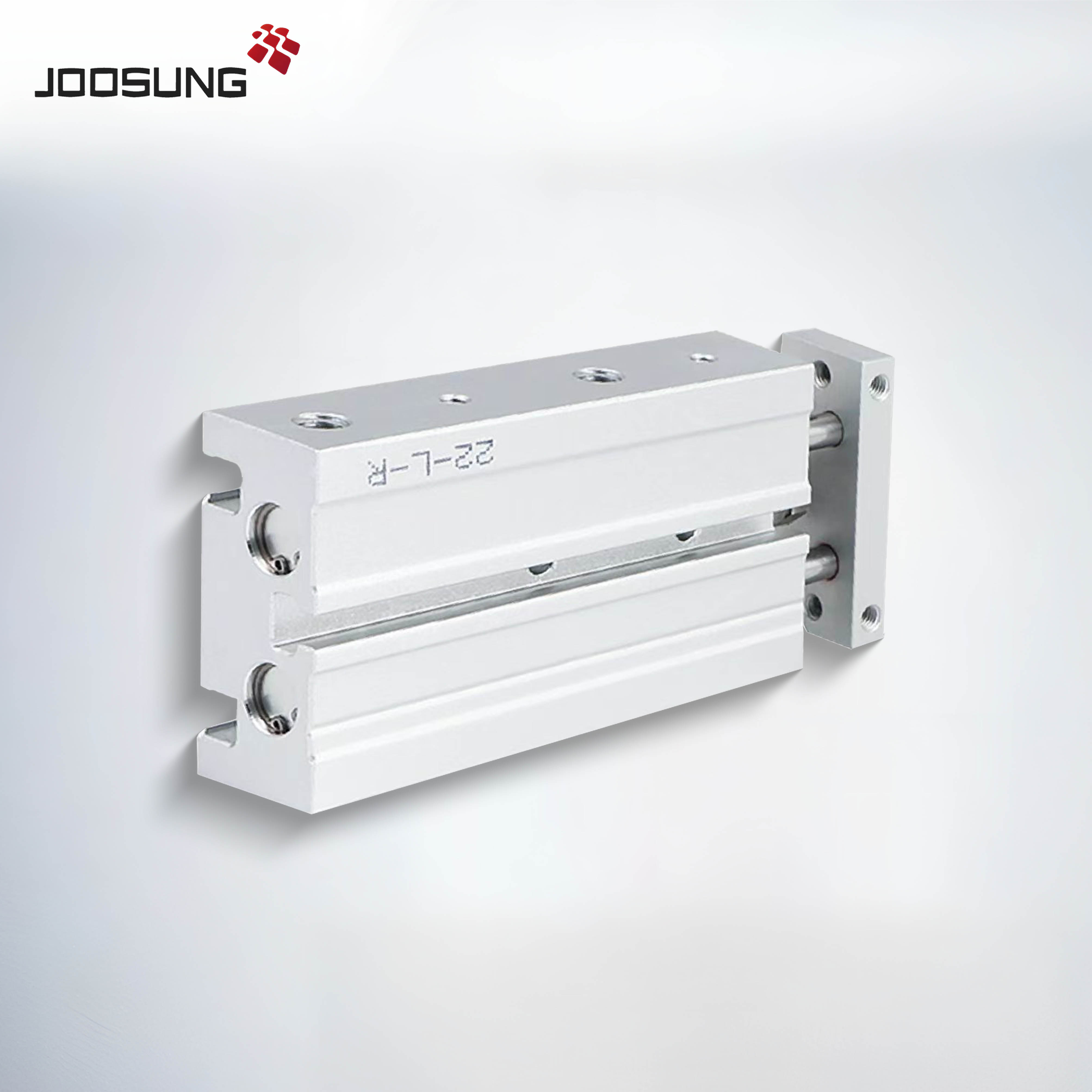

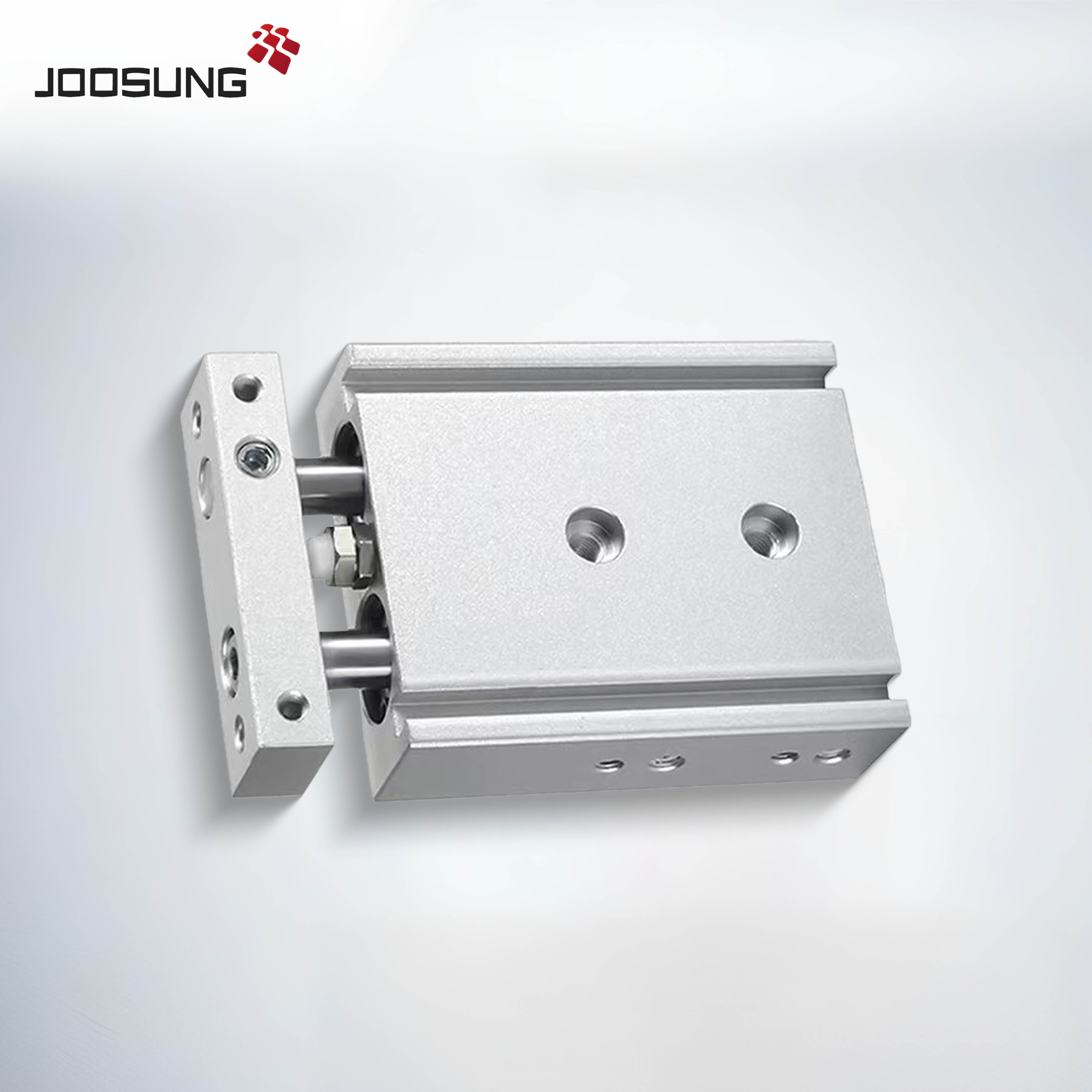

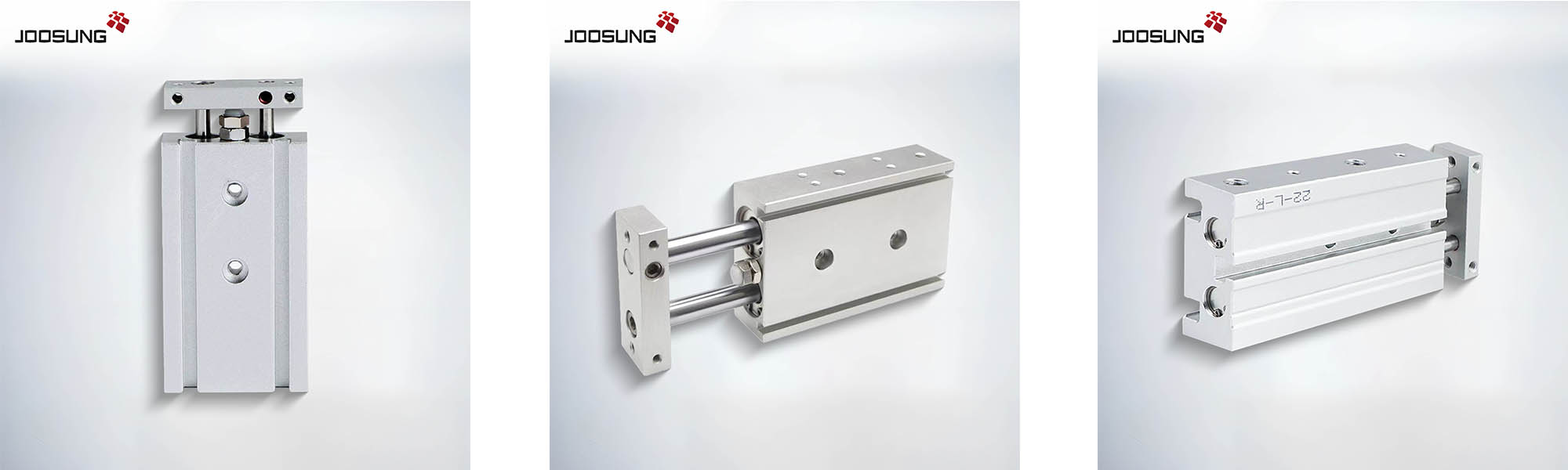

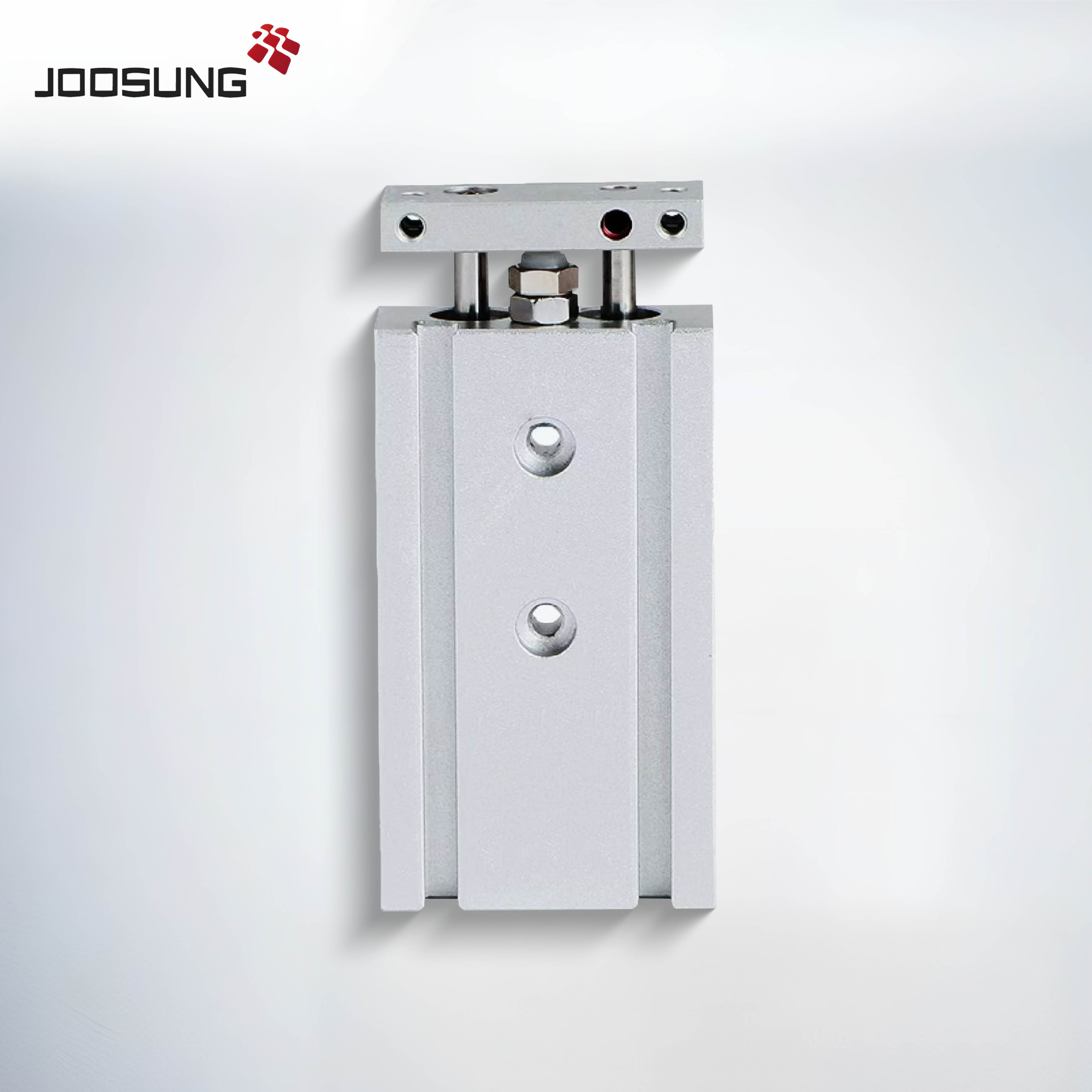

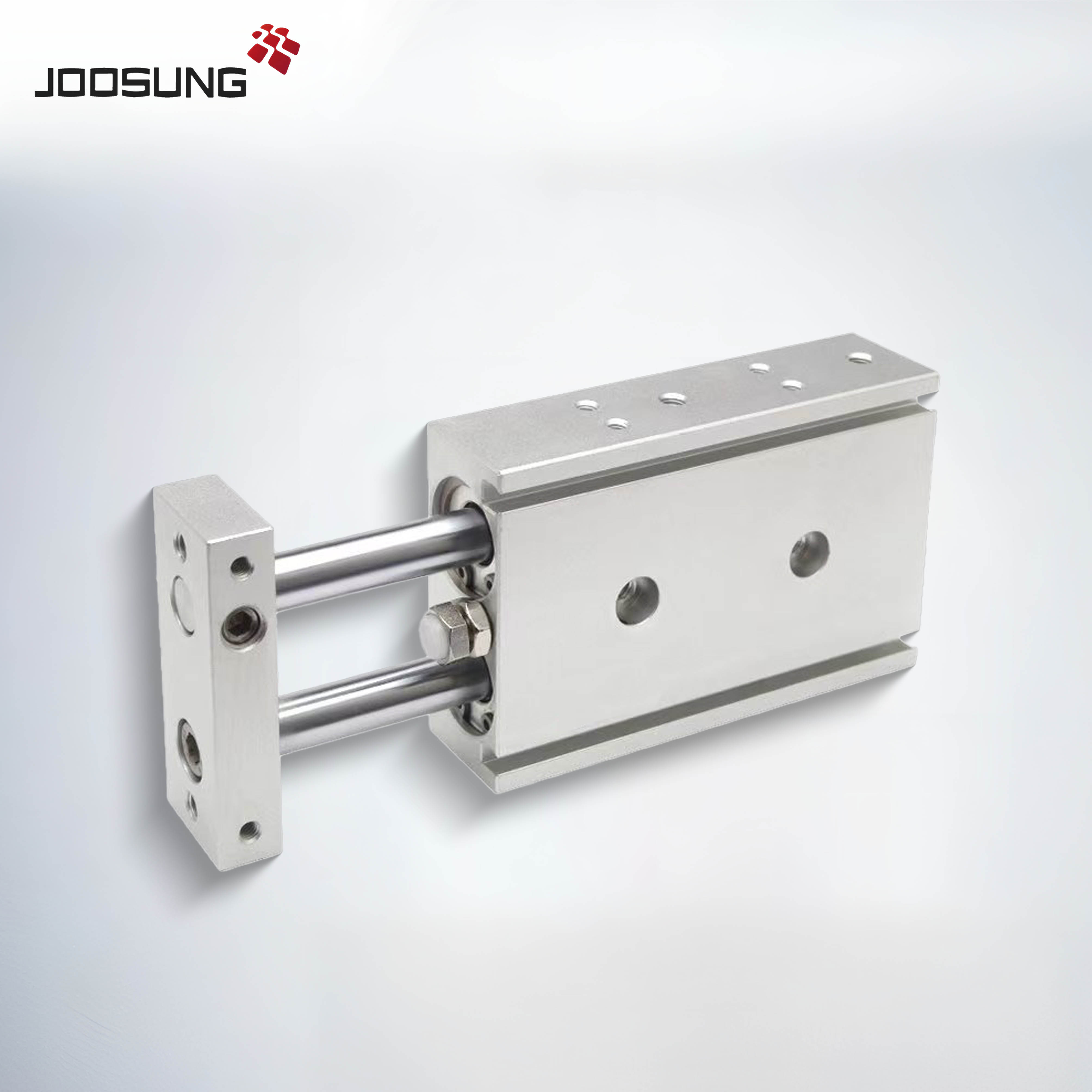

The TR Series Twin-Rod Pneumatic Cylinder is designed for precision linear motion with enhanced stability and high anti-rotation performance. With a compact body and extended sliding guide, the TR cylinder can easily handle radial loads, side thrust, and offset forces. It’s an ideal actuator for applications that require accurate pushing, lifting, or clamping in automation, electronics, and machinery setups.
Fully compliant with JIS standards, the TR Series offers long-lasting durability, smooth operation, and versatile installation options—making it a trusted choice in industrial automation systems.
JIS Standard Compliant
Designed to meet international standards for easy replacement and system compatibility.
Precision Anti-Rotation Design
Dual guide rods with low deflection and high alignment accuracy for precise motion control.
Extended Sliding Bearing Guide
Long-life, self-lubricating bearing ensures reliable operation without additional lubrication.
Multi-Surface Mounting Options
Mounting holes on three faces offer flexibility for different installation layouts.
Handles Side Loads & Torque
Strong resistance to bending and twisting allows stable performance under lateral forces.
Dual Air Inlet/Outlet Ports
Two sets of ports on both sides of the cylinder provide easier air piping options.
Adjustable Front Bumper
Built-in rubber bumper absorbs impact and allows stroke fine-tuning.
Standard Magnetic Piston
All models include a magnet-compatible piston for sensor integration (non-magnetic versions are not available).
The TR Series Twin-Rod Pneumatic Cylinder is widely used in:
Semiconductor production and PCB processing
Electronics and automotive assembly lines
High-precision clamping and fixture systems
Small-size lifting platforms or pressing mechanisms
Packaging, labeling, and inspection machines
Environments requiring compact but stable actuators
JoosungAuto is a professional pneumatic component manufacturer based in China. With over 10 years of experience in OEM and ODM production and international supply, we offer reliable, cost-effective solutions for automation systems.
Our TR Series Twin-Rod Pneumatic Cylinder provides excellent performance, strong stability, and quick installation. We support custom sizes, fast lead times, and global shipping.
Visit Us:
www.joosungauto.com
www.autojoosung.com
Email:bob@joosungauto.com
WhatsApp: +86 137 8010 1113
#TRSeries #TwinRodCylinder #DoubleActingCylinder #AntiRotationCylinder #CompactAirCylinder #PneumaticActuator #AutomationEquipment #JoosungAuto #OEMPneumatics #PrecisionCylinder

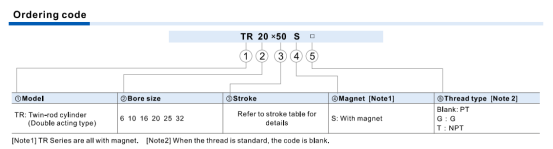

Series Model | Available Models |
TR6 Series | TR10-10S, TR10-20S, TR10-30S, TR10-40S, TR10-50S |
TR10 Series | TR10-10S, TR10-20S, TR10-30S, TR10-40S, TR10-50S, TR10-60S, TR10-70S, TR10-80S, TR10-90S, TR10-100S |
TR16 Series | TR16-10S, TR16-20S, TR16-30S, TR16-40S, TR16-50S, TR16-60S, TR16-70S, TR16-80S, TR16-90S, TR16-100S, TR16-125S, TR16-150S, TR16-175S, TR16-200S |
TR20 Series | TR20-10S, TR20-20S, TR20-30S, TR20-40S, TR20-50S, TR20-60S, TR20-70S, TR20-80S, TR20-90S, TR20-100S, TR20-125S, TR20-150S, TR20-175S, TR20-200S |
TR25 Series | TR25-10S, TR25-20S, TR25-30S, TR25-40S, TR25-50S, TR25-60S, TR25-70S, TR25-80S, TR25-90S, TR25-100S, TR25-125S, TR25-150S, TR25-175S, TR25-200S |
TR32 Series | TR32-10S, TR32-20S, TR32-30S, TR32-40S, TR32-50S, TR32-60S, TR32-70S, TR32-80S, TR32-90S, TR32-100S, TR32-125S, TR32-150S, TR32-175S, TR32-200S |
