Product Specifications | |||||||
Bore size (mm) | 6 | 10 | 16 | 20 | 25 | 32 | |

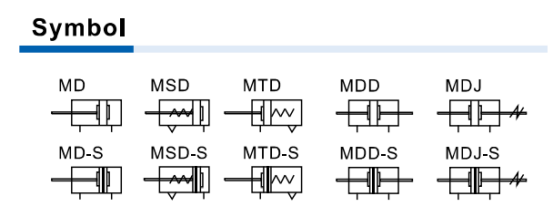

Acting type | MD/MDD/MDJ | Double acting | |||||
MSD/MTD | Single acting | ||||||
Working medium | Air(to be filtered by a 40 μm filter element) | ||||||
Working | Double acting | 0.15 to 1.0 MPa | |||||
pressure | Single acting | 0.2 to 1.0 MPa | |||||
Proof pressure | 1.5 MPa | ||||||
Working Temperatur | -20 to 70℃ | ||||||
Speed range | Double acting: 30 to 500 mm/s Single acting: 50 to 500 mm /s | ||||||
Stroke tolerance | 0 | ||||||
Cushion type | Bamper | ||||||
Port size | M5x0.8 | 1/8’’ | |||||

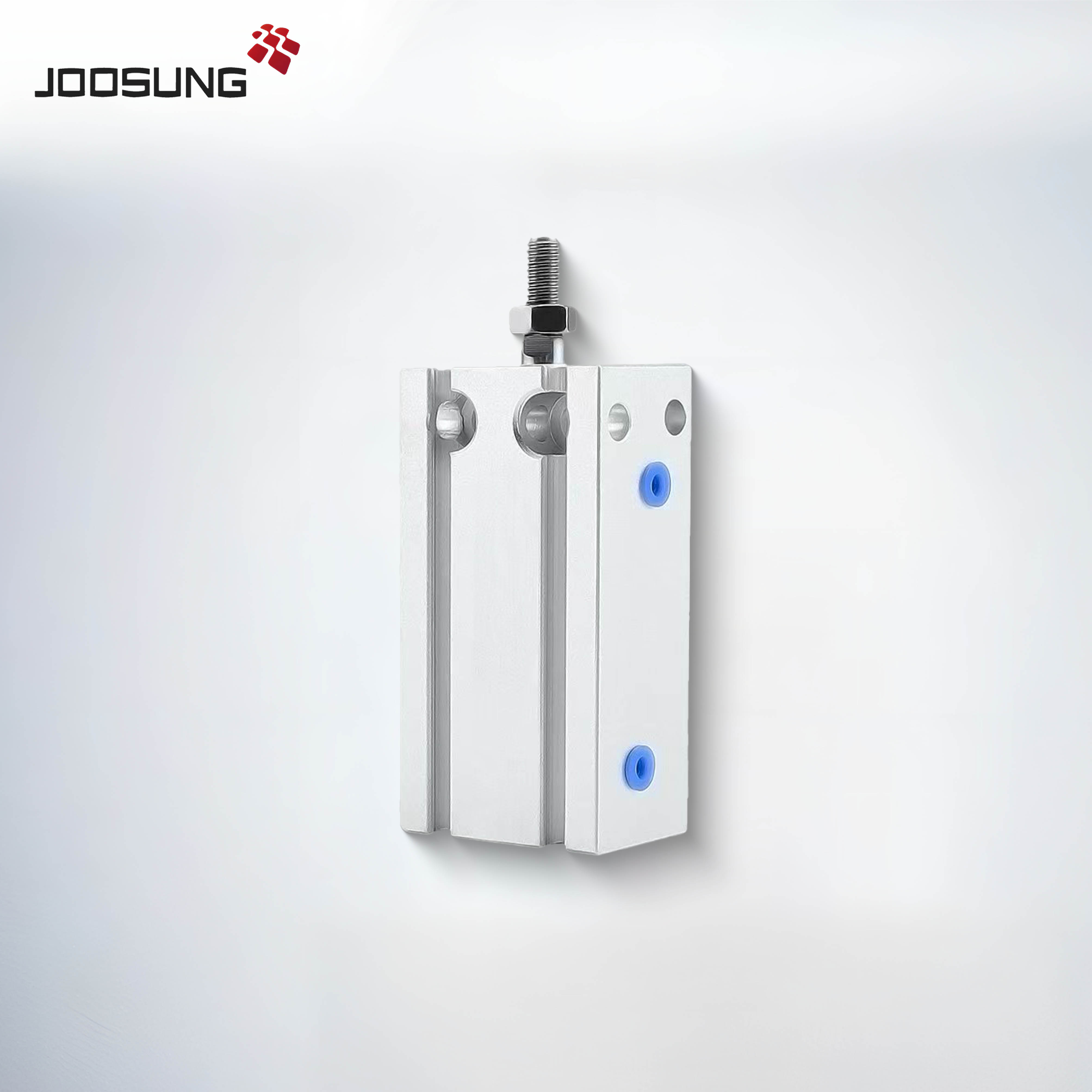

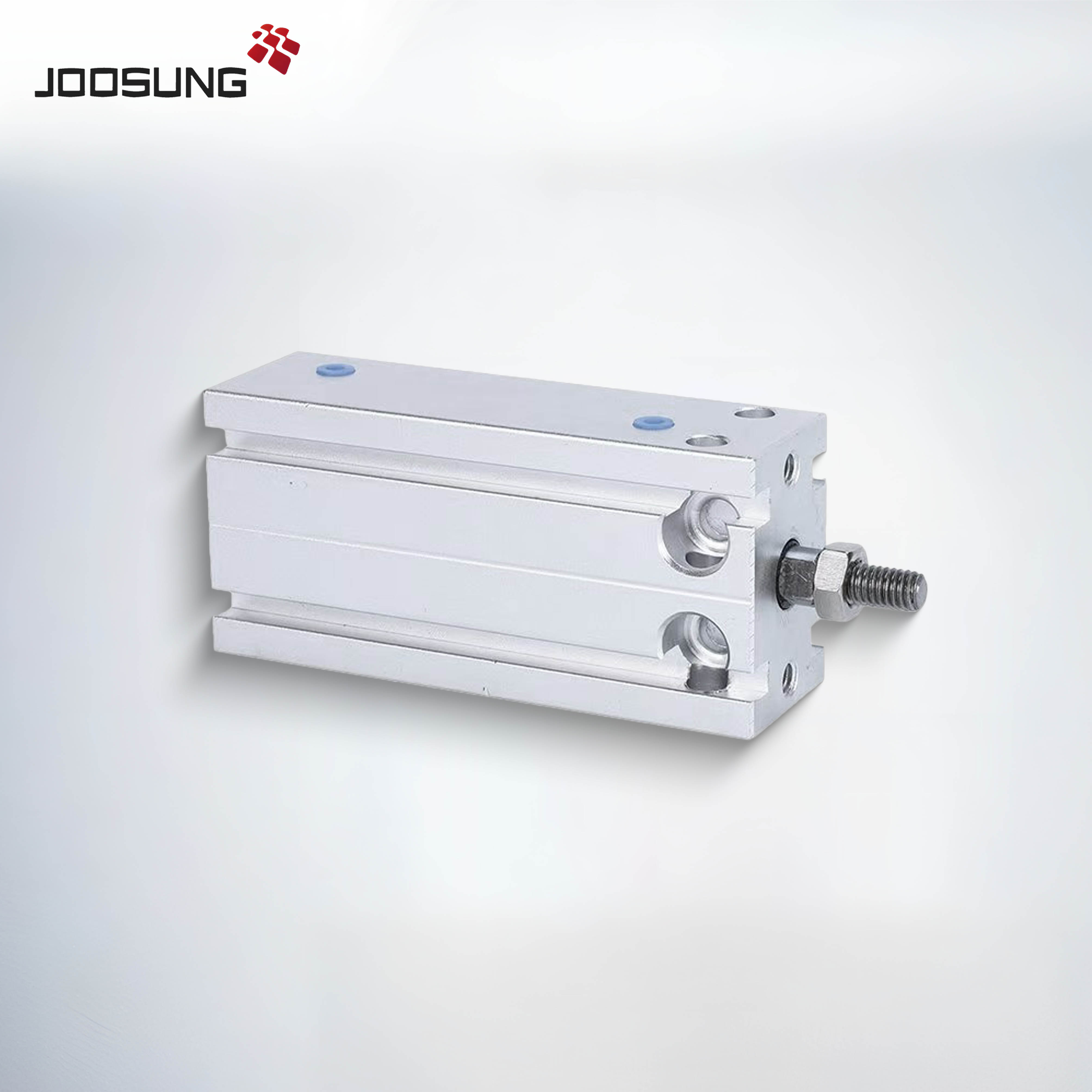

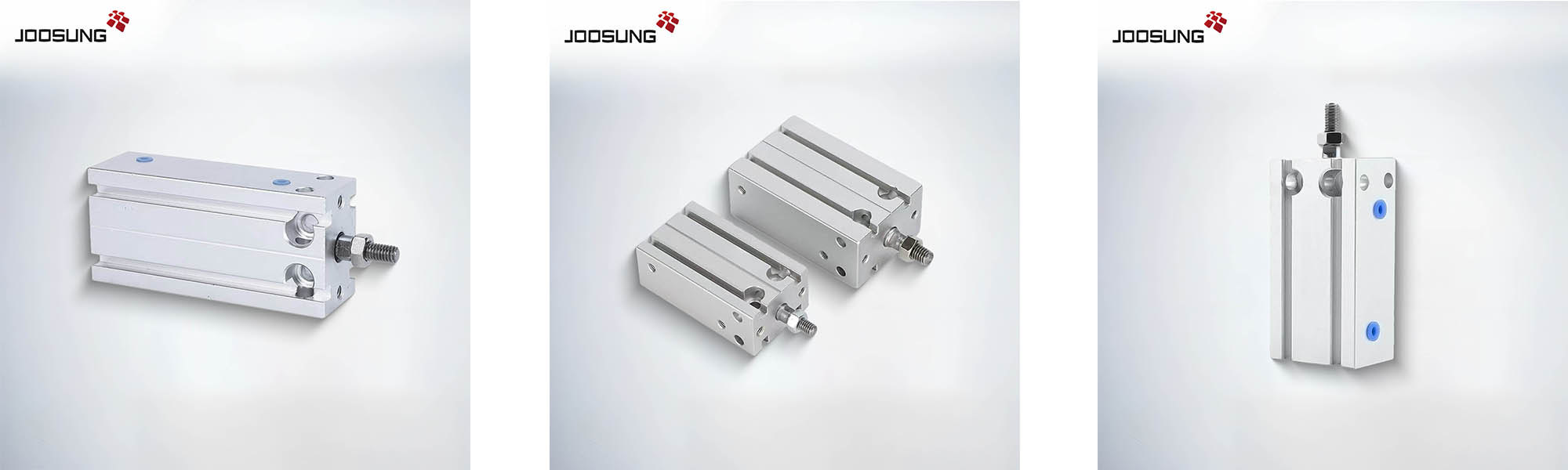

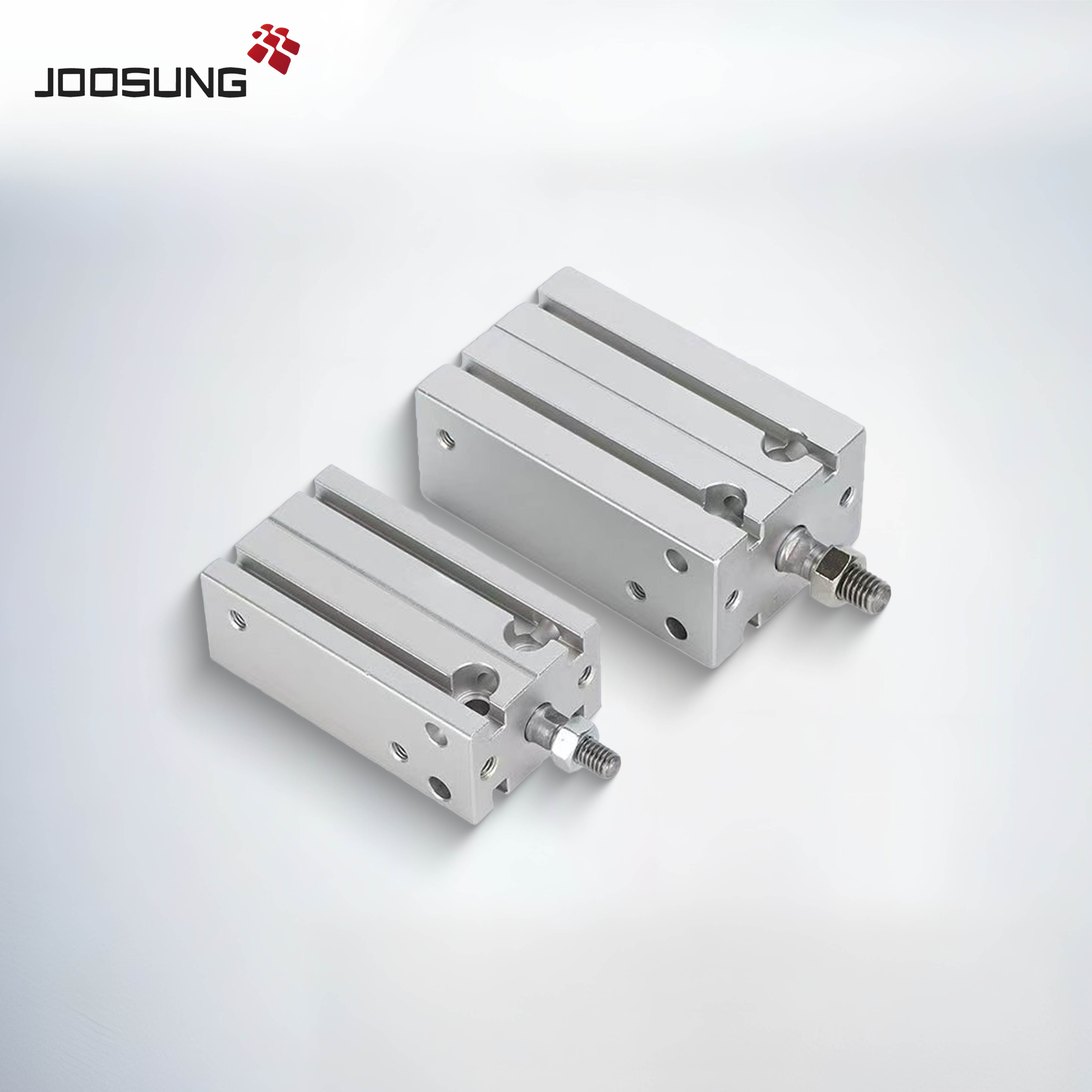

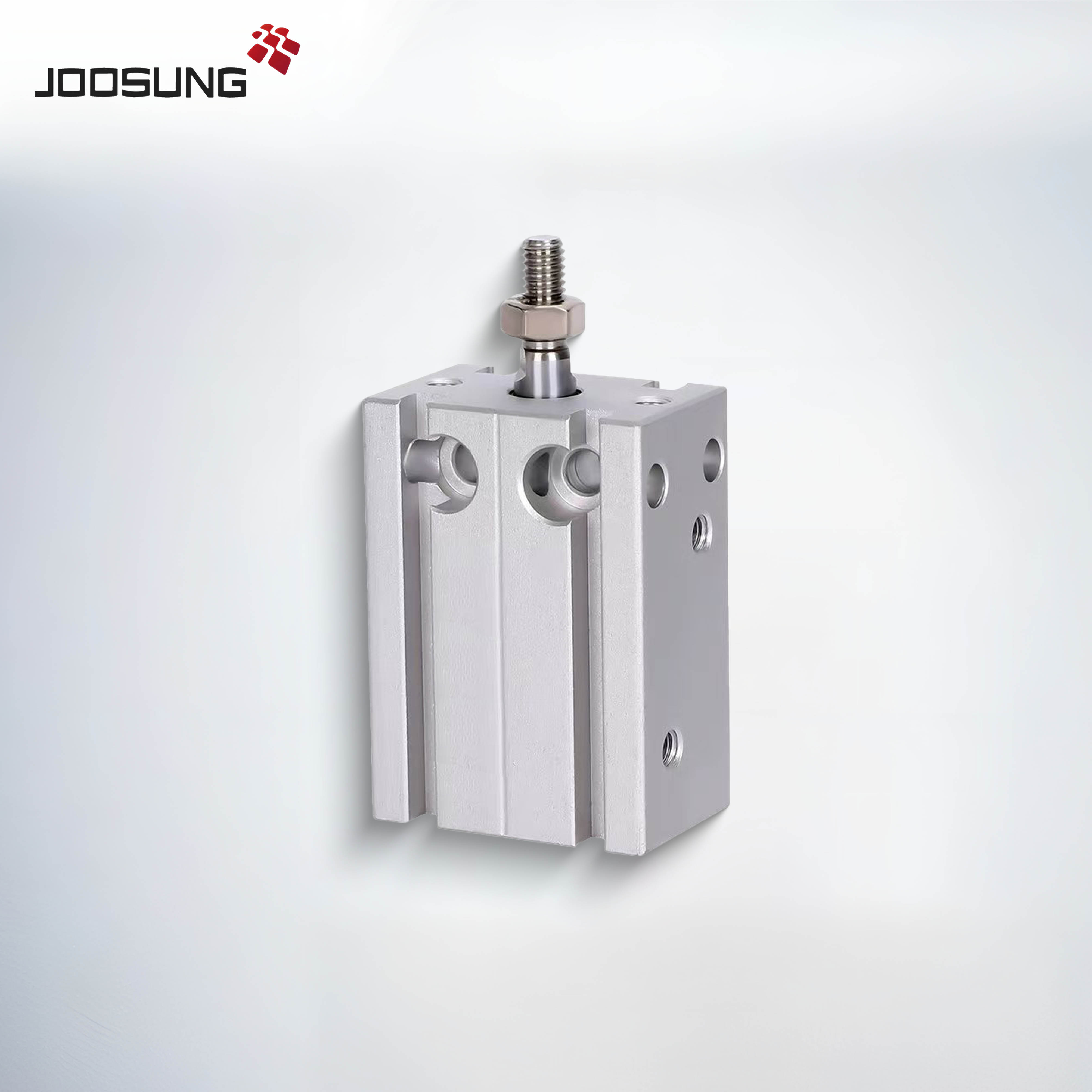

MD Series Multi-mount Pneumatic Cylinder
The MD series is a compact and lightweight air cylinder designed for use in limited-space applications. It is built with a double-acting, twin-rod design, which improves stability and reduces rotation during linear movement.
Key Advantages of the MD series Multi-mount Pneumatic Cylinder
Twin-rod structure for better anti-rotation performance
Compact body for space-saving installation
Built-in magnets for position sensing (optional)
Stainless steel piston rods for durability and corrosion resistance
Mounting holes on both sides for flexible installation
High precision and low friction for smooth operation
Stable motion: Twin rods provide high resistance to torque, keeping the load from rotating.
Easy to install: Multiple mounting options make it simple to fix in small or narrow spaces.
No lubrication needed: Pre-lubricated design saves maintenance time.
Long service life: Seals and components are made to resist wear and pressure.
Clean appearance: Aluminum alloy body with clean surface finish.
Application Fields
The MD series Multi-mount Pneumatic Cylinder is widely used in:
Automatic machines
Conveyor alignment systems
Small part positioning
Assembly lines
Robotics and pick-and-place devices
Request a Quote Today
JoosungAuto is a professional pneumatic cylinder manufacturer in China, offering high-quality air cylinders, valves, and fittings for industrial automation. Our featured products include 4V series solenoid valves, ISO standard compact cylinders, and the MD series Multi-mount Pneumatic Cylinder.
The MD series Multi-mount Pneumatic Cylinder are designed for high precision, stable linear motion, and anti-rotation performance. With a double-rod structure and compact body, they are ideal for applications with limited space and high alignment requirements.
We provide: Full OEM & ODM support, Custom stroke sizes and mounting options, Global delivery and after-sales service, Reliable pneumatic solutions for automation lines.
The MD seriesMulti-mount Pneumatic Cylinderis your best choice for smooth, controlled, and repeatable motion in small-scale automation equipment, pick-and-place units, and precision guides.
Visit us:
www.joosungauto.com
www.autojoosung.com
Contact:
bob@joosungauto.com
WhatsApp: +86 137 8010 1113
#MDcylinder # Multi-mountCylinder #PneumaticCylinder #AutomationSolutions #JoosungAuto #OEMPneumatics

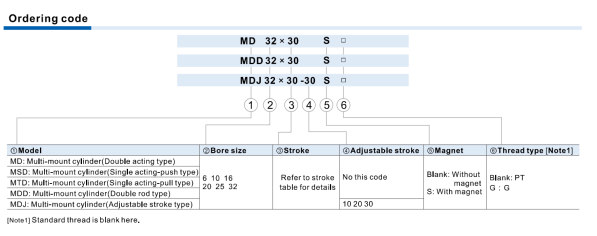

Series Model | Available Models |
MD6 Series | MD6-5, MD6-10, MD6-15, MD6-20, MD6-25, MD6-30, MD6-35 |
MD10Series | MD10-5, MD10-10, MD10-15, MD10-20, MD10-25, MD10-30, MD10-35 |
MD16 Series | MD16-5, MD16-10, MD16-15, MD16-20, MD16-25, MD16-30, MD16-40, MD16-50 |
MD20 Series | MD20-5, MD20-10, MD20-15, MD20-20, MD20-25, MD20-30, MD20-40, MD20-50, MD20-60 |
MD25 Series | MD25-5, MD25-10, MD25-15, MD25-20, MD25-25, MD25-30, MD25-40, MD25-50, MD25-60 |
MD32 Series | MD32-5, MD32-10, MD32-15, MD32-20, MD32-25, MD32-30, MD32-40, MD32-50, MD32-60 |
