Product Specifications | ||||||||
Bore(mm) | 6 | 10 | 16 | 20 | 25 | 32 | ||
Working Medium | Clean Air(40μm Filteration) | |||||||
Acting Type | Double Acting/Single Acting | |||||||
Min Pressure | Double acting | Single piston rod | 0.12 | 0.06 | 0.05 | |||
(Mpa) | Double piston rod | 0.15 | 0.1 | 0.08 | ||||
Double piston rod | 0.18 | 0.13 | 0.11 | |||||
Single acting | Standard | 0.2 | 0.15 | 0.13 | ||||
Non-rotating | 0.23 | 0.18 | 0.16 | |||||
Max Pressure | 0.7Mpa | |||||||
Working Temperature | 5~60°C | |||||||
Cushion Type | Rubber Cushion | |||||||
Stroke Tolerance(mm) | ±0.1 | |||||||
Lubrication | Not required | |||||||
Installation | Free | |||||||
Non-rotating accuracy | ±0.8° | ±0.5° | ||||||
Port Size | M5x0.8 | G1/8 | ||||||

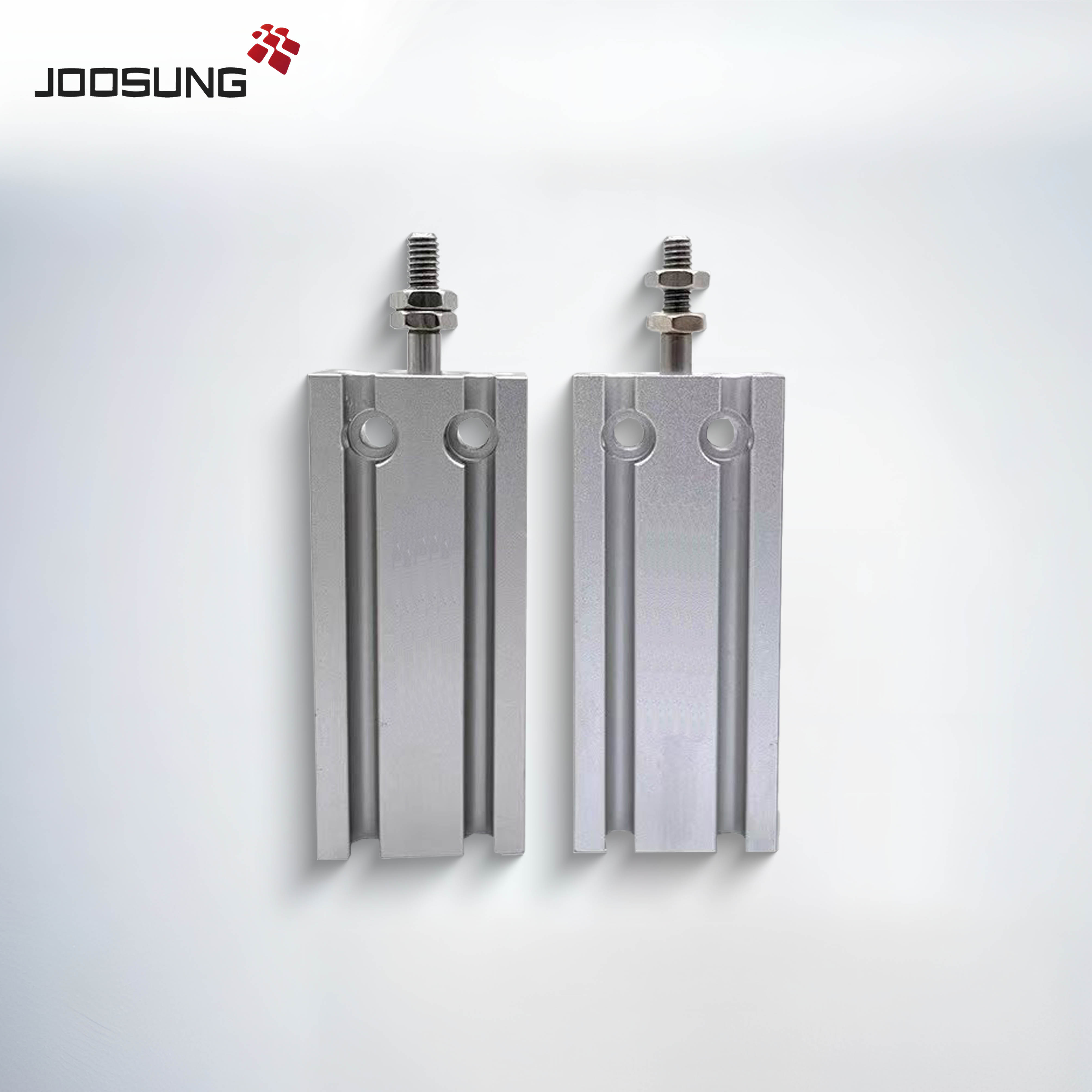

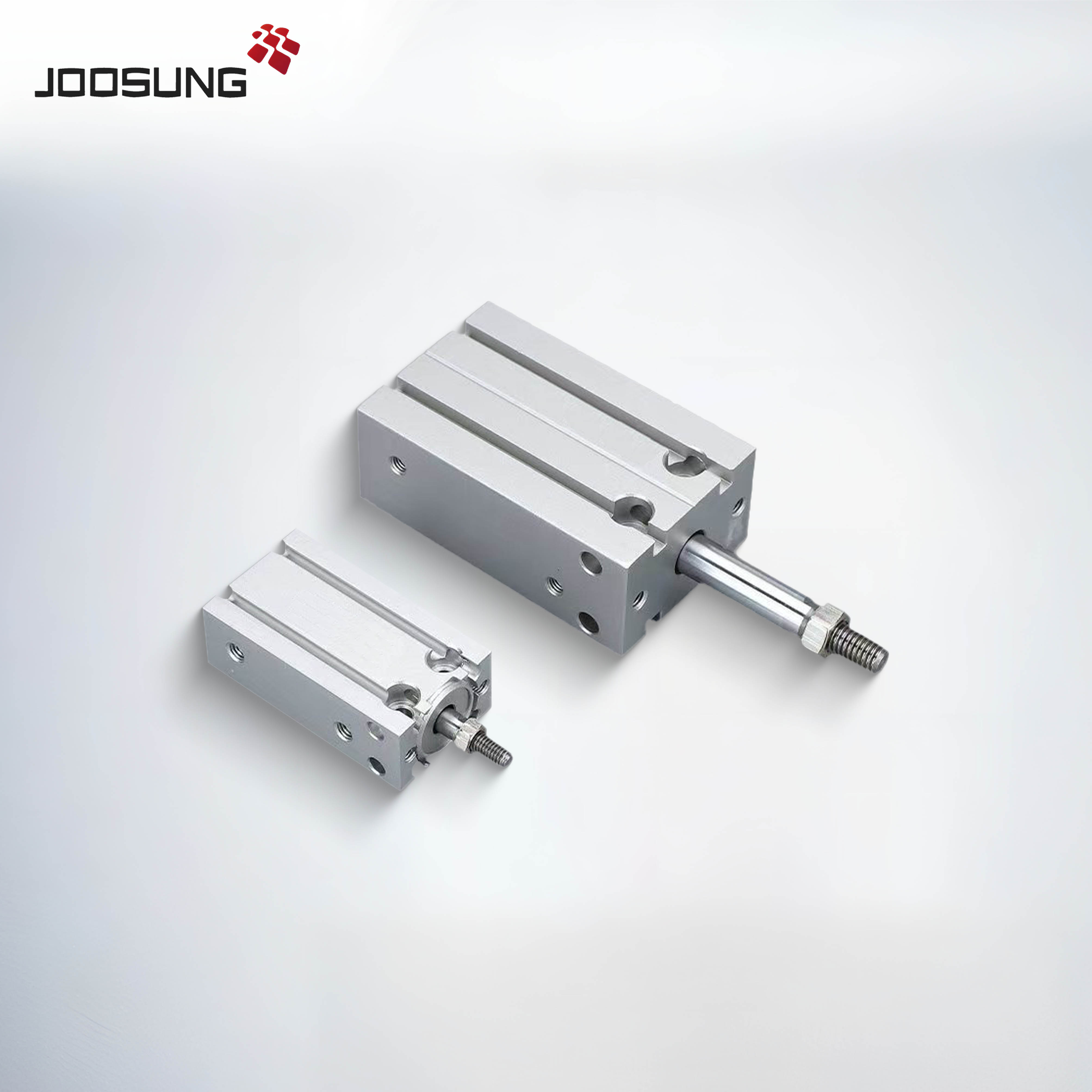

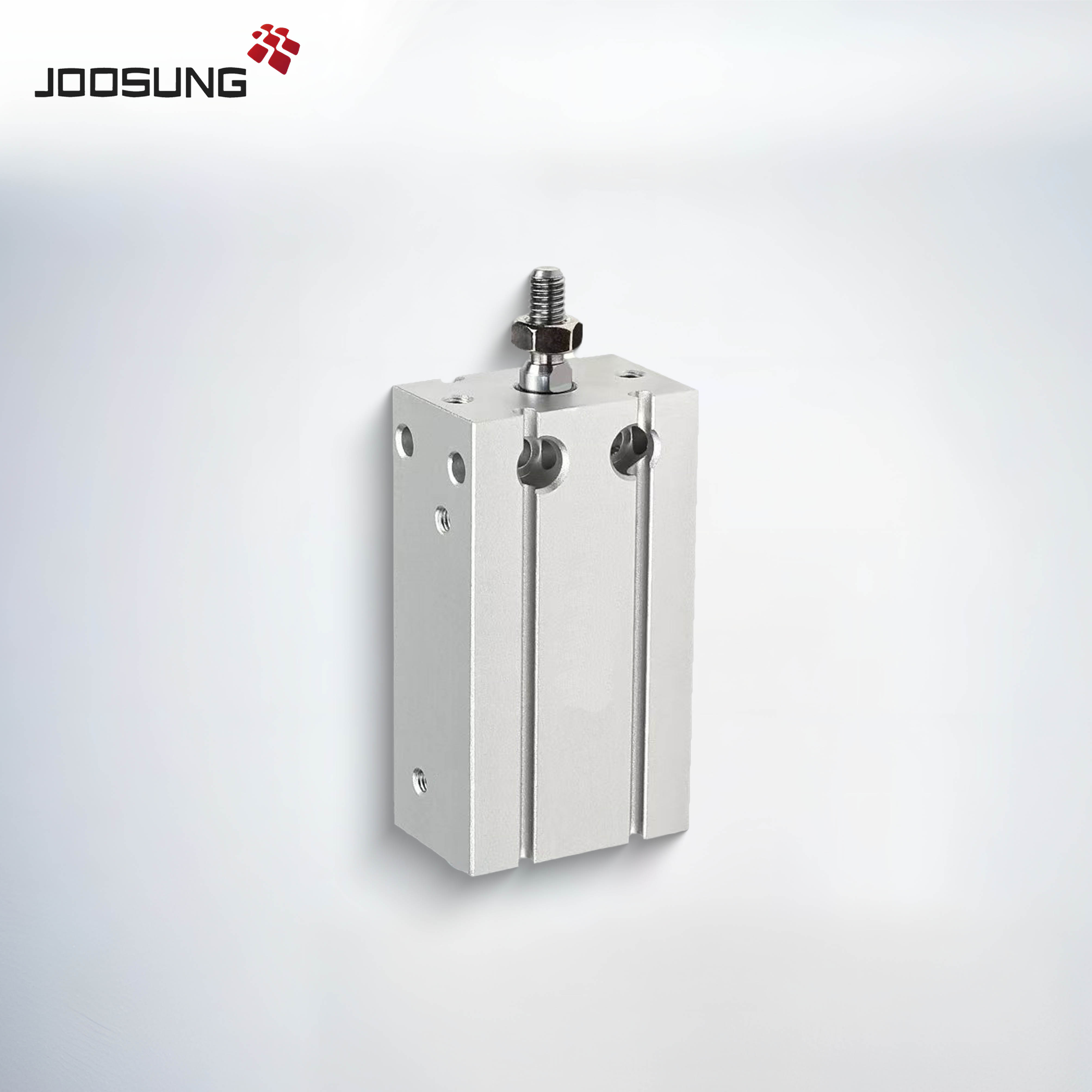

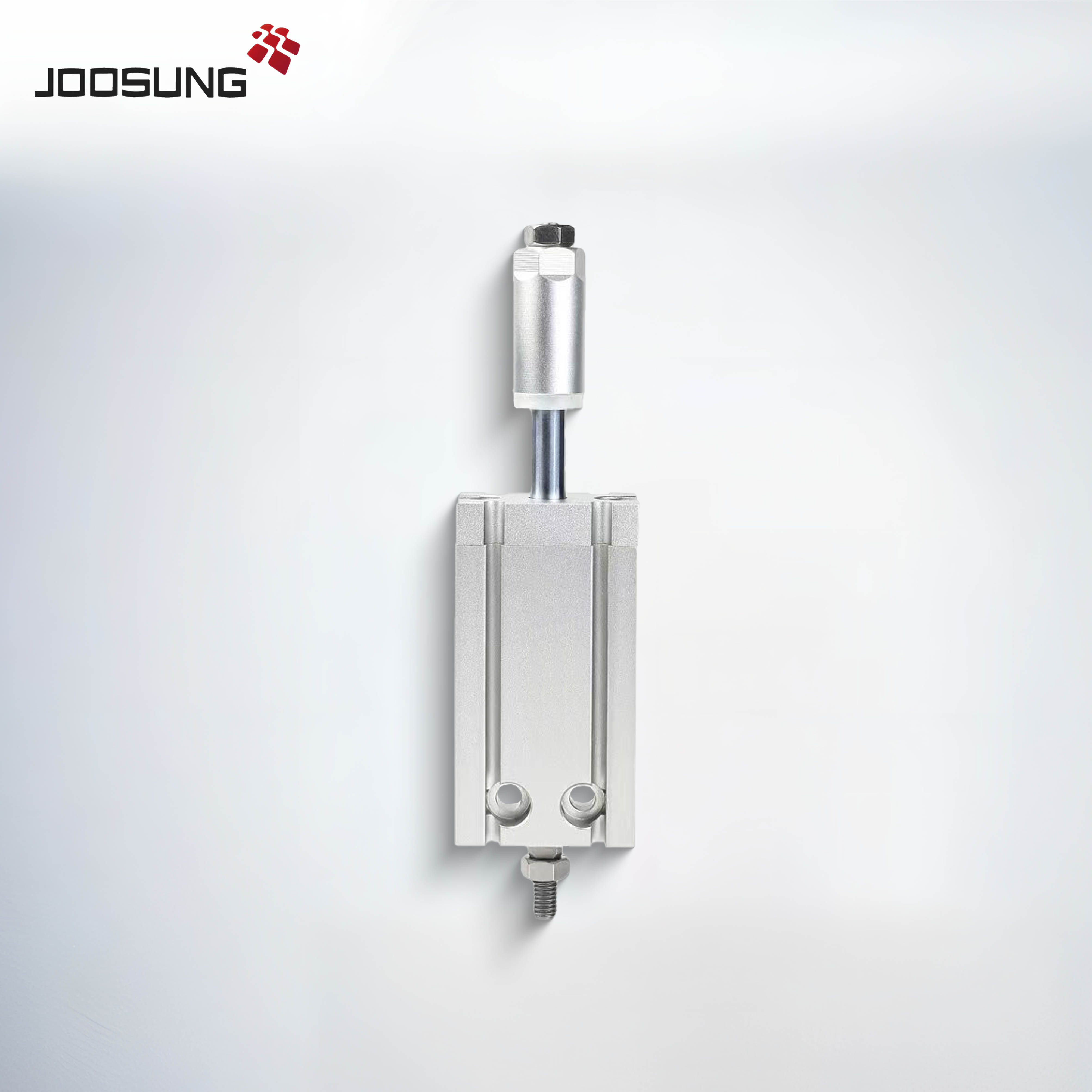

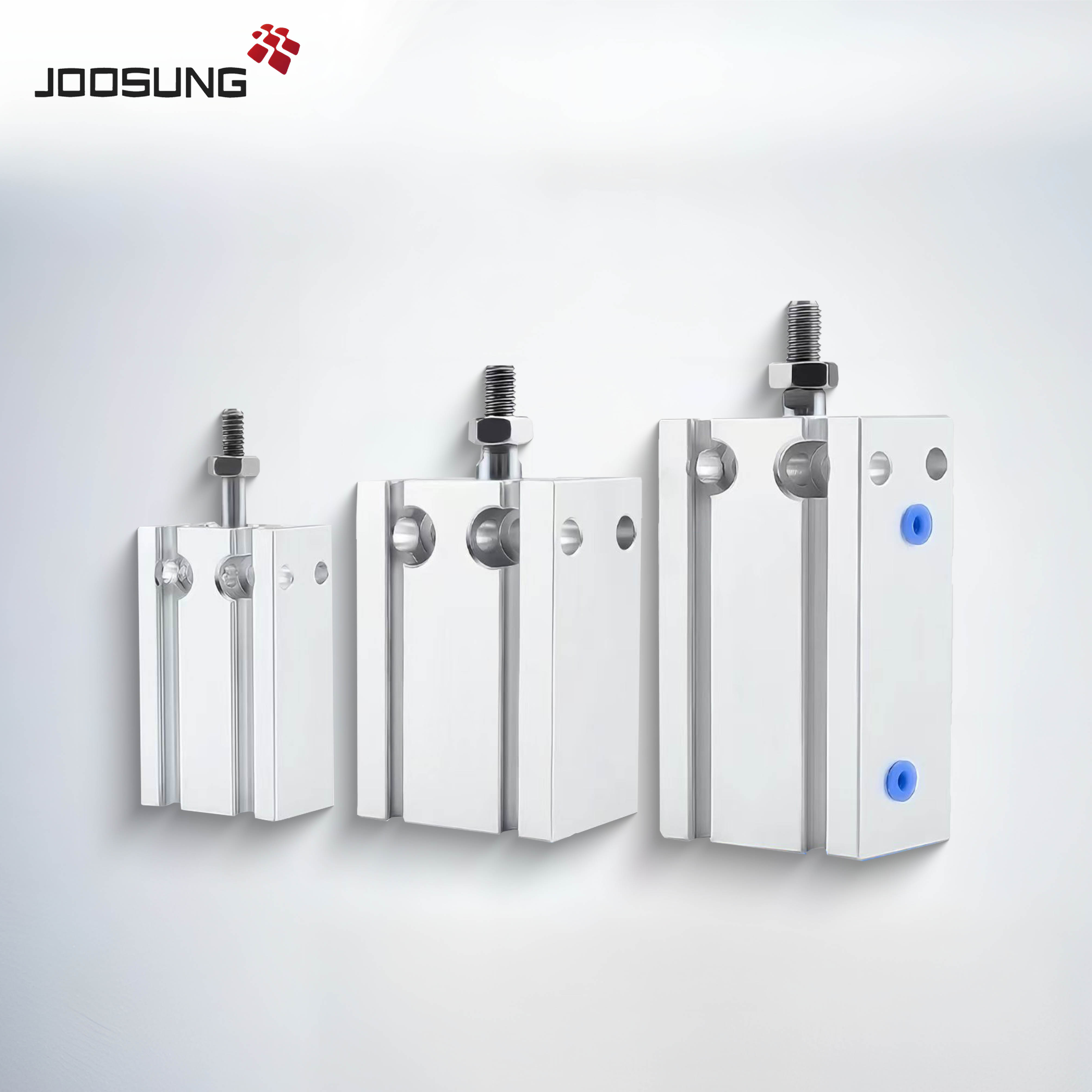

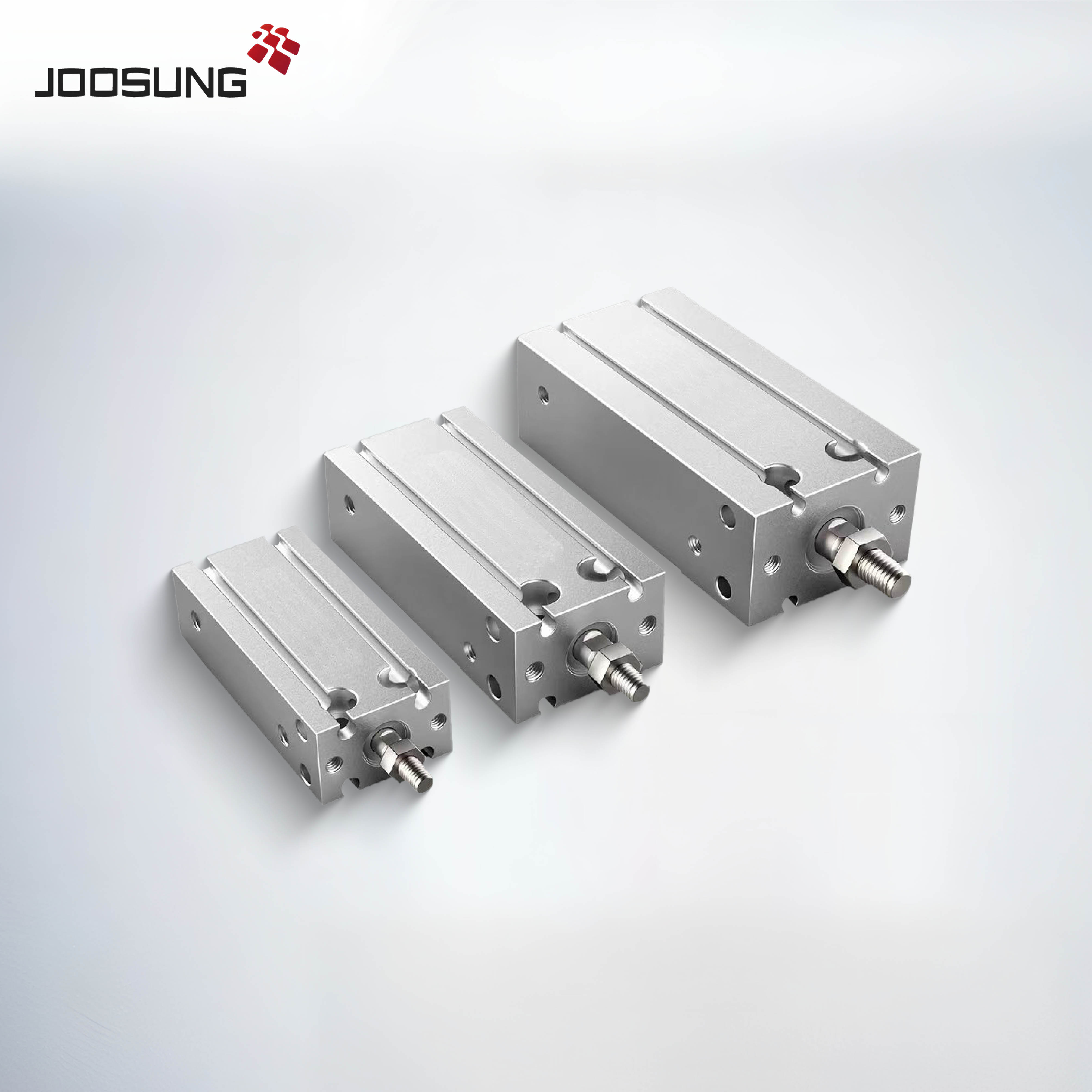

CDU Series Free Mount Pneumatic Cylinders
Versatile and Space-Saving Pneumatic Solution for Automation
The CDU Series Pneumatic Cylinders are designed to deliver exceptional performance in a wide range of industrial applications. These cylinders are perfect for situations where precise control and durability are required. From automation systems to material handling, the CDU Series Pneumatic Cylinders provide reliable and efficient actuation with minimal maintenance needs. These cylinders can be easily mounted without the need for additional hardware, saving valuable space in automation systems.
Key Advantages of CDU Series Pneumatic Cylinders
Compact Design: The CDU Series Pneumatic Cylinders feature a compact body design, which reduces mounting space requirements while still providing high output force.
Precision and Durability: With excellent stroke accuracy and low friction, these cylinders ensure smooth, reliable operation in various environments.
Long Service Life: Made from high-quality aluminum alloy, the CDU Series Pneumatic Cylinders are lightweight yet robust, ensuring a long lifespan and minimal downtime.
Flexible Operation: Available in both single-acting and double-acting configurations, the CDU Series Pneumatic Cylinders are versatile for a range of applications.
Easy Integration: Compatible with standard mounting accessories, these cylinders are easy to install, replace, and integrate into existing systems.
Application Fields
The CDU Series Pneumatic Cylinders are widely used in:
Automation equipment and robotics
Material handling and assembly lines
Packaging machinery
Food processing equipment
Pharmaceutical and medical devices
Automotive manufacturing
Request a Quote Today
JoosungAuto is a professional pneumatic cylinder manufacturer in China, offering a full range of air cylinders, valves, and fittings. Our main products include 4V series, CU series air cylinders, and CDU series pneumatic cylinders. With OEM support and fast global shipping, we provide reliable pneumatic solutions for automation industries worldwide.
If you're looking for a compact, efficient, and globally compatible pneumatic solution, the CU, CDU series Free Mount Air Cylinders are your reliable choice.
We support OEM production, flexible customization, and global delivery with full technical support.
Visit us:
www.autojoosung.com
Contact Us:
Email: bob@joosungauto.com
WhatsApp: +86 137 8010 1113
#CDU #FreeMountCylinder #PneumaticCylinders #AutomationSolutions #JoosungAuto #OEMPneumatics

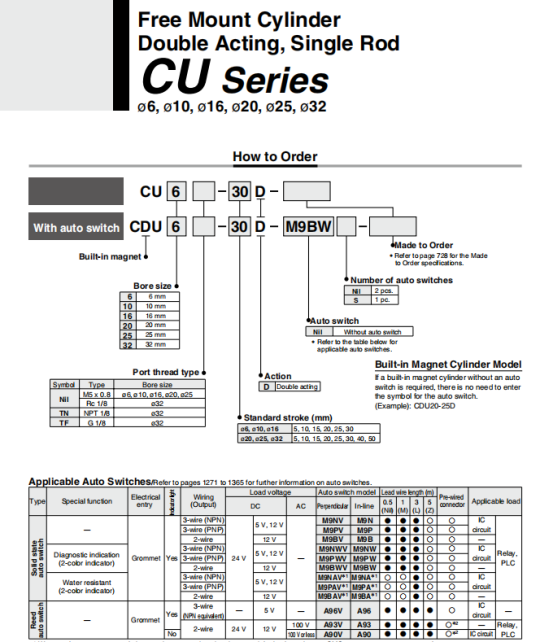

Series Model | Available Models |
CDU6Series | CDU6-5D, CDU6-10D, CDU6-15D, CDU6-20D, CDU6-25D, CDU6-30D |
CDU10Series | CDU10-5D, CDU10-10D, CDU10-15D, CDU10-20D, CDU10-25D, CDU10-30D |
CDU16 Series | CDU16 -5D, CDU16 -10D, CDU16 -15D, CDU16 -20D, CDU16 -25D, CDU16-30D |
CDU20 Series | CDU20 -5D, CDU20 -10D, CDU20 -15D, CDU20 -20D, CDU20 -25D, CDU20-30D, CDU20-40D, CDU20-50D |
CDU25 Series | CDU25-5D, CDU25-10D, CDU25-15D, CDU25-20D, CDU25-25D, CDU25-30D, CDU25-40D, CDU25-50D |
CDU32 Series | CDU32 -5D, CDU32 -10D, CDU32 -15D, CDU32 -20D, CDU32 -25D, CDU32-30D, CDU32-40D, CDU32-50D |
