Generaltechnicaldata | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
Pneumatic connection | M5 | M5 | M5 | M5 | G1/8 | G1/8 | G1/8 | G1/8 | G1/8 | G1/4 | G1/4 |
Piston rod end Female/Male thread | M3 | M4 | M5 | M5 | M6 | M6 | M8 | M8 | M10 | M12 | M16 |
Male thread | M6 | M8 | M10x1.25 | M12x1.25 | M16x1.5 | M20x1.5 | M27x2 | ||||
Operating medium | Compressed air to ISO8573-1:2010[7:4:4] | ||||||||||
Note on the operating/pilot medium | Lubricated operation is possible (in which case, lubricated operation will always be required) | ||||||||||
Design | Piston | ||||||||||
Piston rod | |||||||||||
Cushioning | Elastic cushioning rings/plates at both ends | ||||||||||
Position sensing | Via the proximity switch | ||||||||||
Type of mounting | With through-hole | - | |||||||||
With a female thread | |||||||||||
With accessories | |||||||||||
Mounting position | Any | ||||||||||

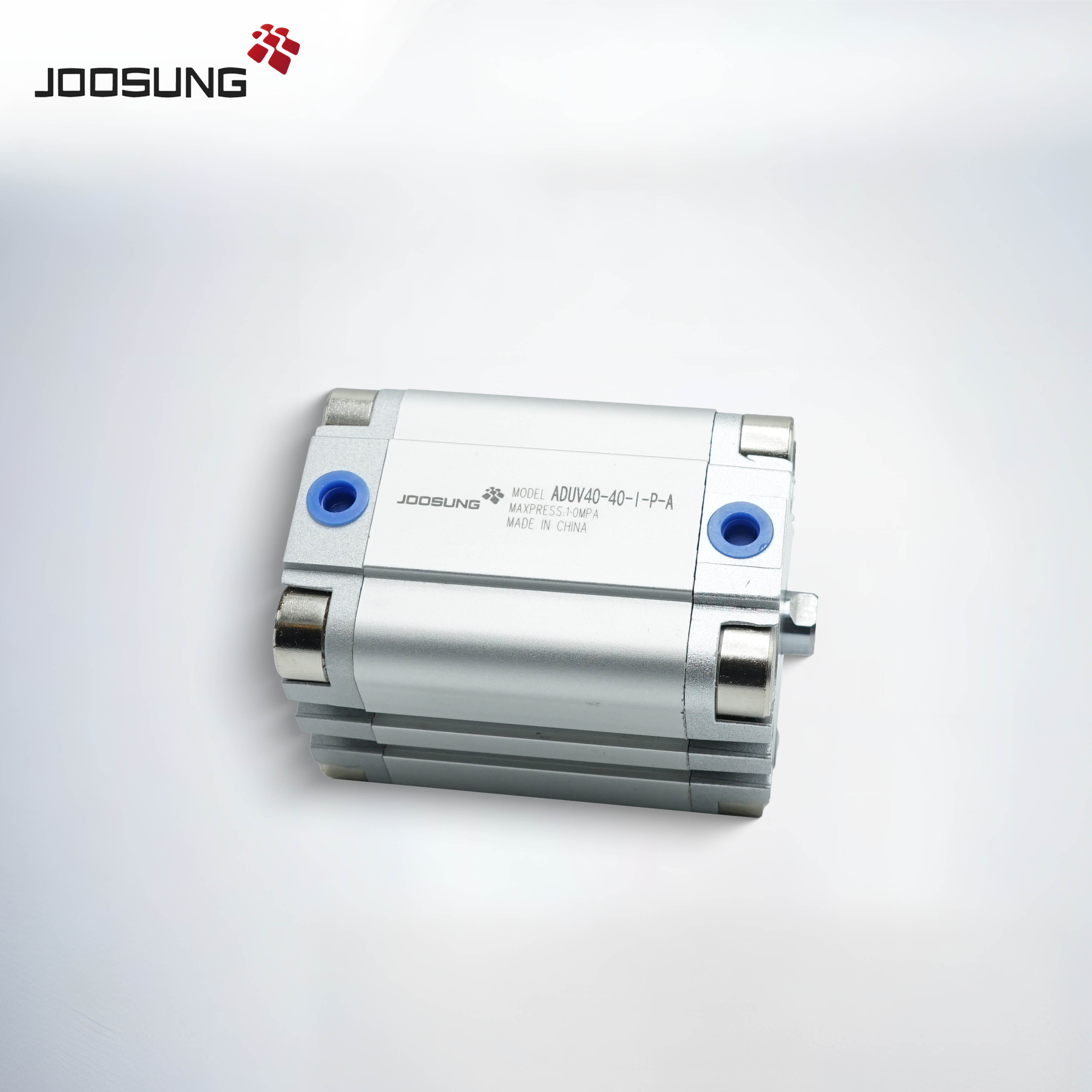

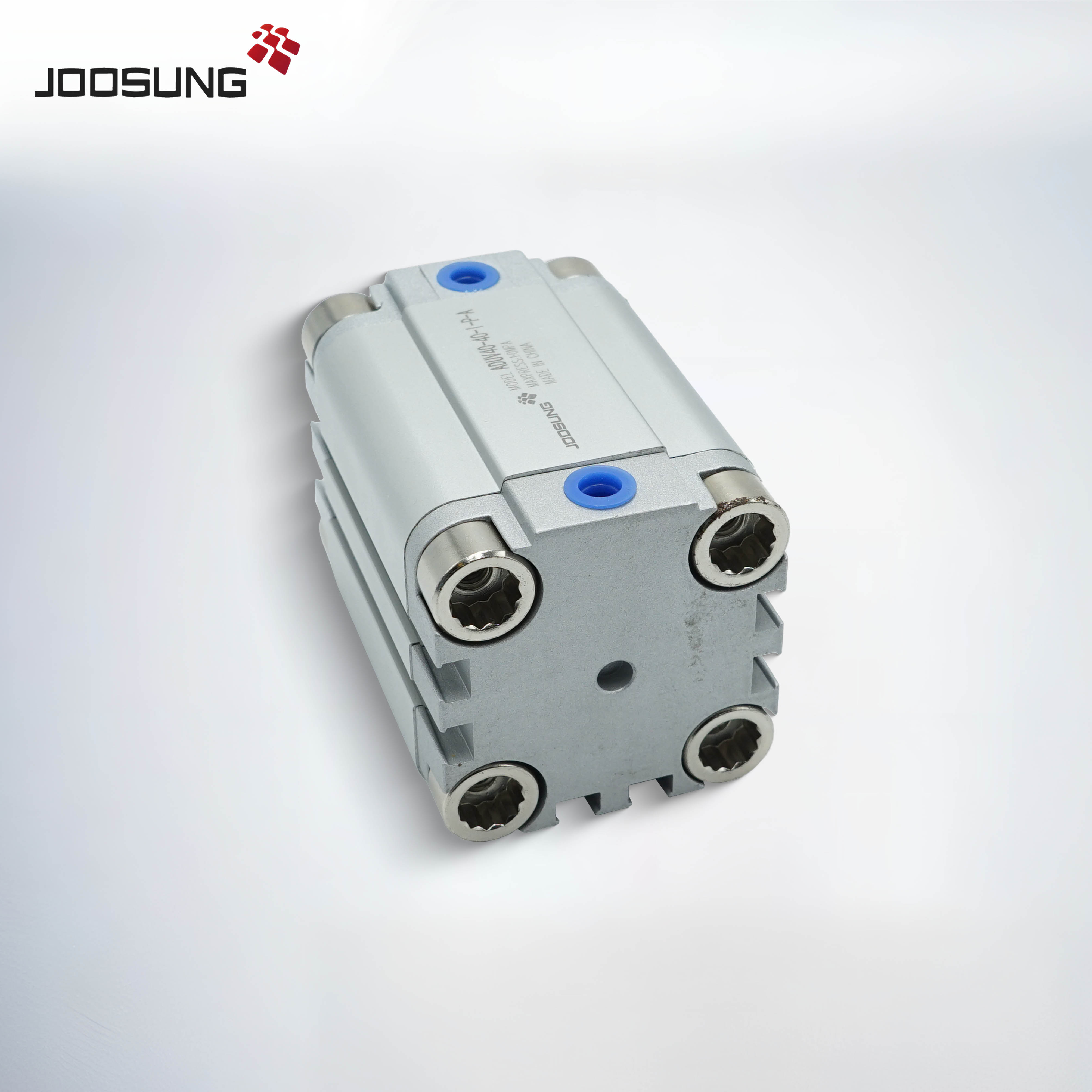

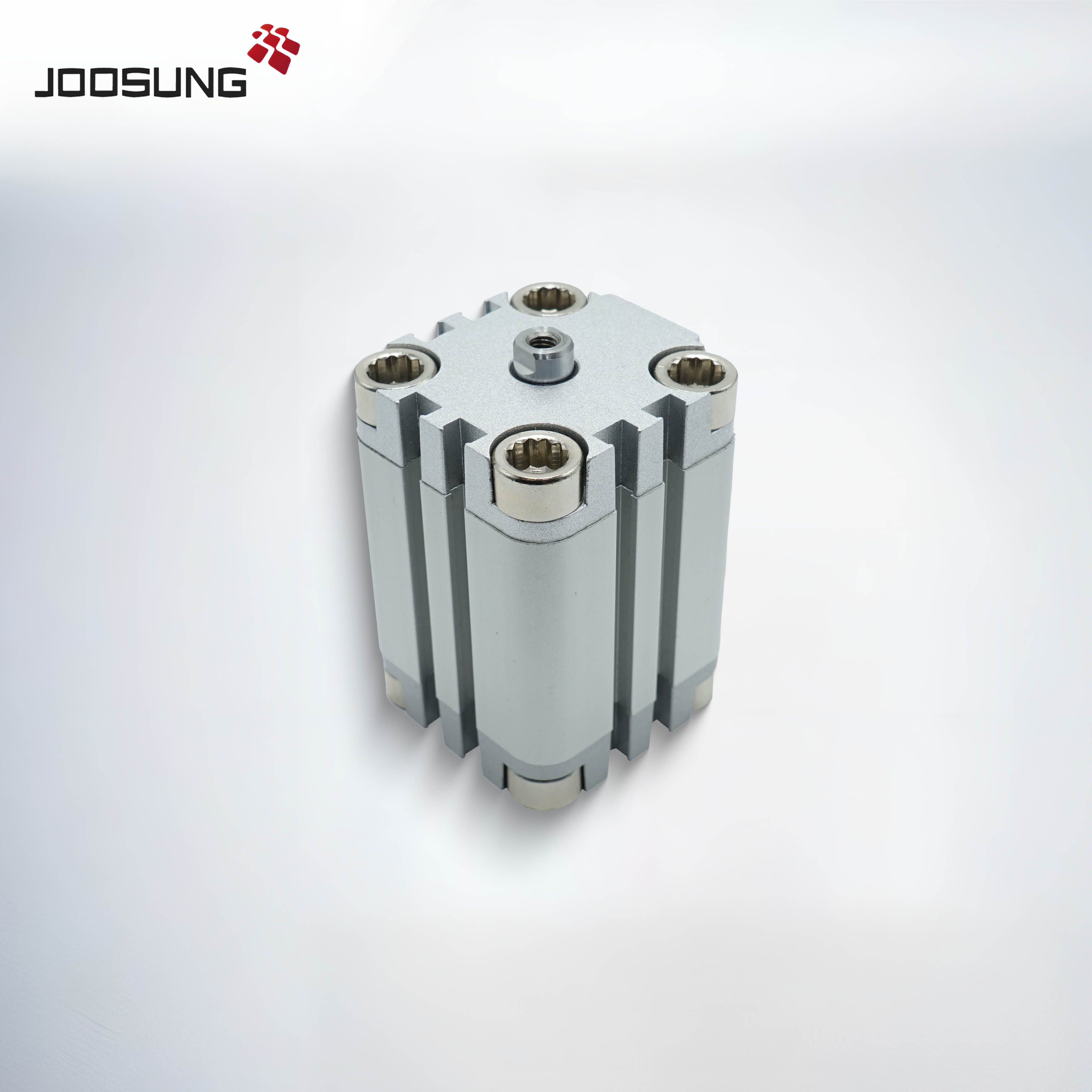

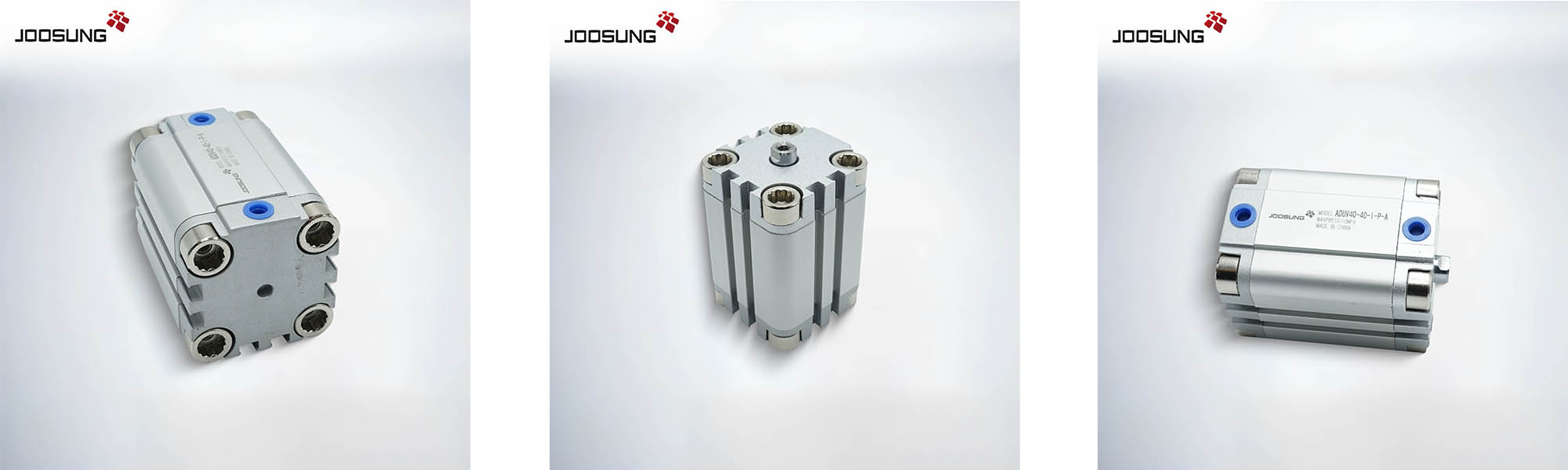

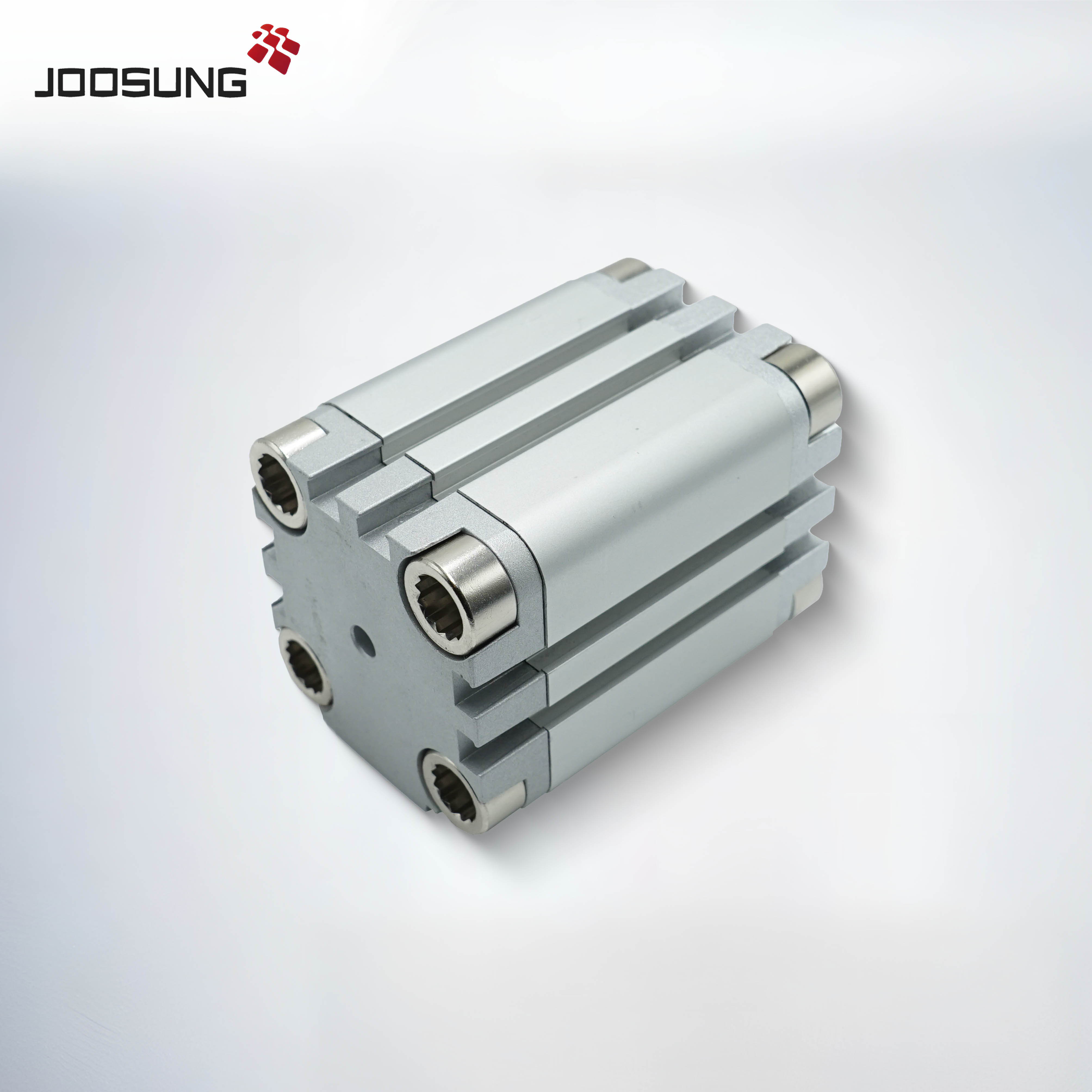

Key Advantages of ADVU Series Compact Cylinders
The ADVU series Compact Cylinders feature a compact, flat body ideal for tight installation spaces.
Manufactured with high-precision aluminum alloy, the ADVU series Compact Cylinders offer exceptional rigidity and long-lasting durability.
The ADVU series Compact Cylinders come with multiple sensor slots and mounting styles to ensure flexible installation in any system.
With excellent concentricity and minimal piston rod play, the ADVU series Compact Cylinders deliver precise and smooth actuation.
The ADVU series Compact Cylinders are compatible with FESTO-standard mounting dimensions, making them easy to replace or upgrade in existing systems.
The ADVU series Compact Cylinders are suitable for:
Semiconductor equipment
Compact assembly lines
Robotic arms and grippers
Small mechanical automation
Medical and inspection devices
Looking for a FESTO-type compact cylinder with high reliability and space efficiency? The ADVU series Compact Cylinders provide a dependable solution for modern automation needs.
OEM service and fast delivery are available. We support customized production and global orders.
�� Visit our websites:
www.joosungauto.com
www.autojoosung.com
Email: carson@joosungauto.com
WhatsApp: +86 153 9708 8192
#ADVU #CompactAirCylinder #FESTOType #PneumaticCylinders #JoosungAuto #OEMAutomationParts
Series Model | Available Models |
ADVU-16 Series | ADVU-16-5-P-A, ADVU-16-10-P-A, ADVU-16-15-P-A, ADVU-16-20-P-A, ADVU-16-25-P-A, ADVU-16-30-P-A, ADVU-16-35-P-A, ADVU-16-40-P-A, ADVU-16-45-P-A, ADVU-16-50-P-A, ADVU-16-55-P-A, ADVU-16-60-P-A |
ADVU-20 Series | ADVU-20-5-P-A, ADVU-20-10-P-A, ADVU-20-15-P-A, ADVU-20-20-P-A, ADVU-20-25-P-A, ADVU-20-30-P-A, ADVU-20-35-P-A, ADVU-20-40-P-A, ADVU-20-45-P-A, ADVU-20-50-P-A, ADVU-20-55-P-A, ADVU-20-60-P-A |
ADVU-25 Series | ADVU-25-5-P-A, ADVU-25-10-P-A, ADVU-25-15-P-A, ADVU-25-20-P-A, ADVU-25-25-P-A, ADVU-25-30-P-A, ADVU-25-35-P-A, ADVU-25-40-P-A, ADVU-25-45-P-A, ADVU-25-50-P-A, ADVU-25-55-P-A, ADVU-25-60-P-A |
ADVU-32 Series | ADVU-32-5-P-A, ADVU-32-10-P-A, ADVU-32-15-P-A, ADVU-32-20-P-A, ADVU-32-25-P-A, ADVU-32-30-P-A, ADVU-32-35-P-A, ADVU-32-40-P-A, ADVU-32-45-P-A, ADVU-32-50-P-A, ADVU-32-55-P-A, ADVU-32-60-P-A, ADVU-32-65-P-A, ADVU-32-70-P-A, ADVU-32-75-P-A, ADVU-32-80-P-A |
ADVU-40 Series | ADVU-40-5-P-A, ADVU-40-10-P-A, ADVU-40-15-P-A, ADVU-40-20-P-A, ADVU-40-25-P-A, ADVU-40-30-P-A, ADVU-40-35-P-A, ADVU-40-40-P-A, ADVU-40-45-P-A, ADVU-40-50-P-A, ADVU-40-55-P-A, ADVU-40-60-P-A, ADVU-40-65-P-A, ADVU-40-70-P-A, ADVU-40-75-P-A, ADVU-40-80-P-A |
ADVU-50 Series | ADVU-50-5-P-A, ADVU-50-10-P-A, ADVU-50-15-P-A, ADVU-50-20-P-A, ADVU-50-25-P-A, ADVU-50-30-P-A, ADVU-50-35-P-A, ADVU-50-40-P-A, ADVU-50-45-P-A, ADVU-50-50-P-A, ADVU-50-55-P-A, ADVU-50-60-P-A, ADVU-50-65-P-A, ADVU-50-70-P-A, ADVU-50-75-P-A, ADVU-50-80-P-A |
ADVU-63 Series | ADVU-63-5-P-A, ADVU-63-10-P-A, ADVU-63-15-P-A, ADVU-63-20-P-A, ADVU-63-25-P-A, ADVU-63-30-P-A, ADVU-63-35-P-A, ADVU-63-40-P-A, ADVU-63-45-P-A, ADVU-63-50-P-A, ADVU-63-55-P-A, ADVU-63-60-P-A, ADVU-63-65-P-A, ADVU-63-70-P-A, ADVU-63-75-P-A, ADVU-63-80-P-A |
ADVU-80 Series | ADVU-80-5-P-A, ADVU-80-10-P-A, ADVU-80-15-P-A, ADVU-80-20-P-A, ADVU-80-25-P-A, ADVU-80-30-P-A, ADVU-80-35-P-A, ADVU-80-40-P-A, ADVU-80-45-P-A, ADVU-80-50-P-A, ADVU-80-55-P-A, ADVU-80-60-P-A, ADVU-80-65-P-A, ADVU-80-70-P-A, ADVU-80-75-P-A, ADVU-80-80-P-A |
