Specifications | |||||
Bore size(mm) | 12 | 16 | 20 | 25 | |
Action | Double acting,Single rod | ||||
Fluid | Air | ||||
Lubrication | Not required(Non-lube) | ||||
Proof pressure | 1.5MPa | ||||
Maximum operating pressure | 1.0 MPa | ||||
Minimum operating pressure | 0.07 MPa | 0.05 MPa | |||
Ambient and fluid temperature | Without auto switch:-10 to 70℃(No freezing) | ||||
With auto switch:-10 to 60C(No freezing) | |||||
Cushion | None, Rubber bumper* | ||||
Rod end thread | Female thread | ||||
Stroke length tolerance | Standard stroke:+1°Long stroke:+14* | ||||
Piston speed | 50 to 500 mm/s | ||||
Allowable kinetic energy(J) | Standard type | 0.022 | 0.038 | 0.055 | 0.09 |
With rubbe bumper | 0.043 | 0.075 | 0.11 | 0.18 | |

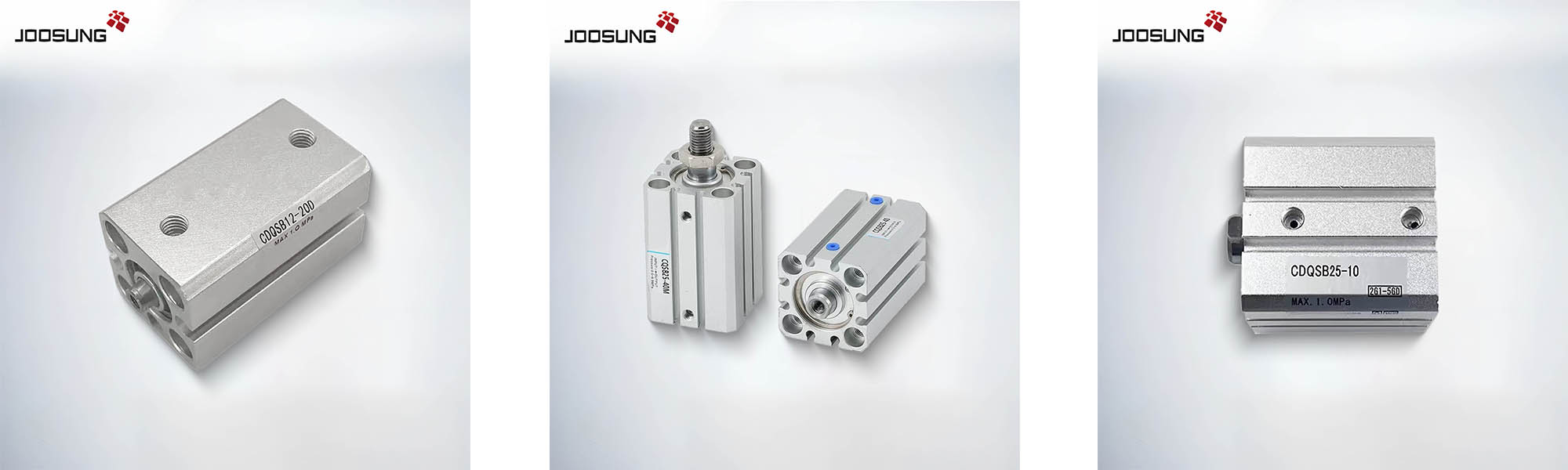

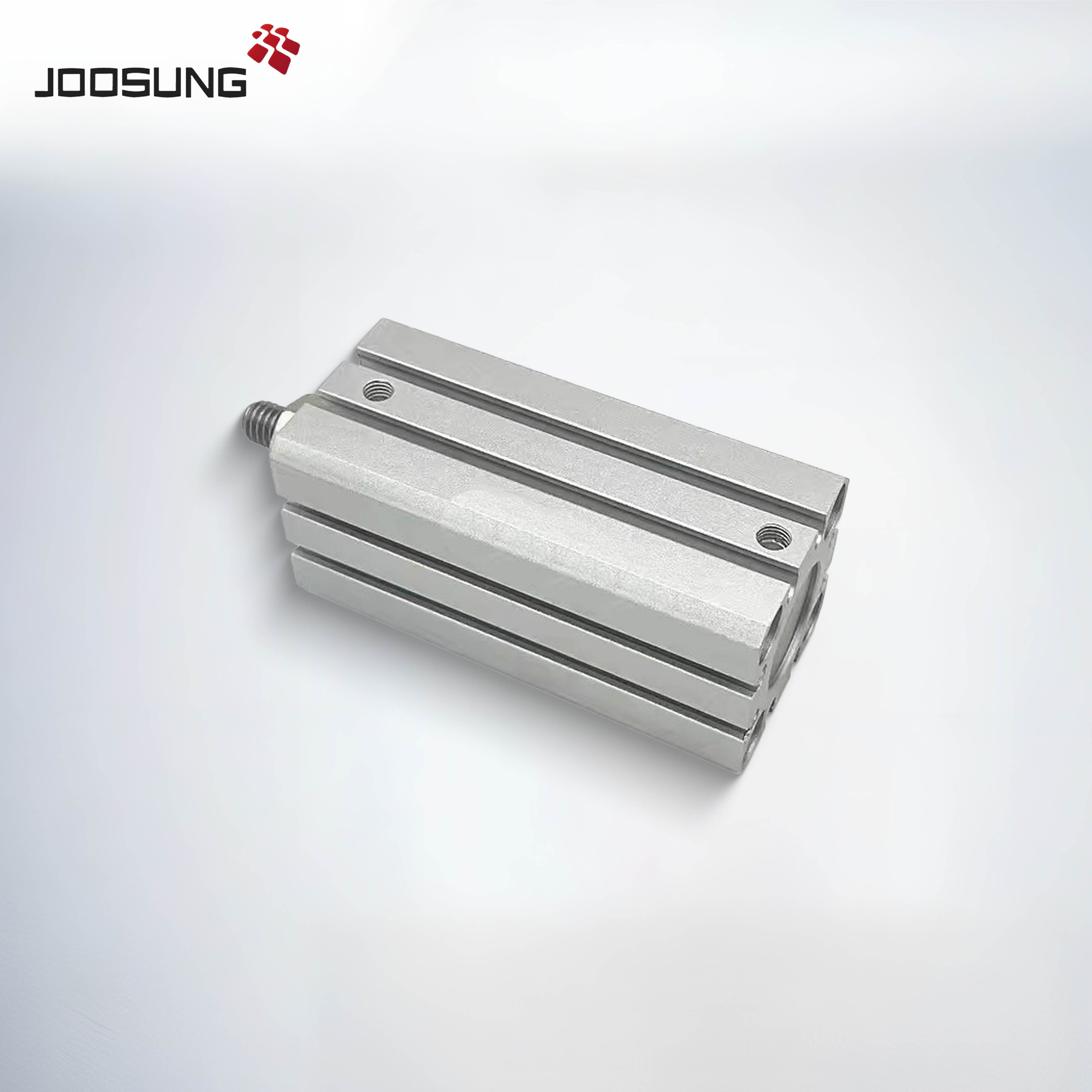

The CQSB, CDQSB series Compact Air Cylinders are engineered for high-performance operation in limited-space applications. These compact air cylinders are widely used in robotics, packaging, and automation systems that require precise movement with minimal footprint. Built with durable materials and designed for easy installation, the CQSB, CDQSB series Compact Air Cylinders deliver smooth and reliable actuation.
The CQSB, CDQSB series Compact Air Cylinders feature a short body design, reducing required mounting space without sacrificing output force.
Designed for efficiency, CQSB, CDQSB series Compact Air Cylinders provide excellent stroke accuracy and low friction performance.
Lightweight yet durable, the CQSB, CDQSB series Compact Air Cylinders are made from high-quality aluminum alloy for long service life.
Compatible with standard mounting accessories, the CQSB, CDQSB series Compact Air Cylinders ensure easy replacement and system integration.
Ideal for compact equipment, the CQSB, CDQSB series Compact Air Cylinders support both single and double acting operation types.
The CQSB, CDQSB series Compact Air Cylinders are widely applied in:
Compact automation equipment
Robotics and electronic assembly
Food packaging machinery
Laboratory and testing devices
Printing and marking systems
Joosung Auto is a professional pneumatic cylinder manufacturer in China, offering a full range of air cylinders, valves, and fittings. Our main products include SAI series, CQSB series compact air cylinders, and CD85 ISO standard pneumatic cylinders. With OEM support and fast global shipping, we provide reliable pneumatic solutions for automation industries worldwide.
Visit us:
www.joosungauto.com
www.autojoosung.com
Email: carson@joosungauto.com
WhatsApp: +86 153 9708 8192
#CQSB #CDQSB #CompactAirCylinder #PneumaticActuator #AutomationParts #MadeInChina #OEMPneumatics #Joosung
Series Model | Available Models |
CQSB12Series | CQSB12-5D, CQSB12-10D, CQSB12-15D, CQSB12-20D, CQSB12-25D, CQSB12-30D, CQSB12-35D, CQSB12-40D, CQSB12-45D, CQSB12-50D, CQSB12-55D, CQSB12-60D |
CQSB16Series | CQSB16-5D, CQSB16-10D, CQSB16-15D, CQSB16-20D, CQSB16-25D, CQSB16-30D, CQSB16-35D, CQSB16-40D, CQSB16-45D, CQSB16-50D, CQSB16-55D, CQSB16-60D |
CQSB20Series | CQSB20-5D, CQSB20-10D, CQSB20-15D, CQSB20-20D, CQSB20-25D, CQSB20-30D, CQSB20-35D, CQSB20-40D, CQSB20-45D, CQSB20-50D, CQSB20-55D, CQSB20-60D |

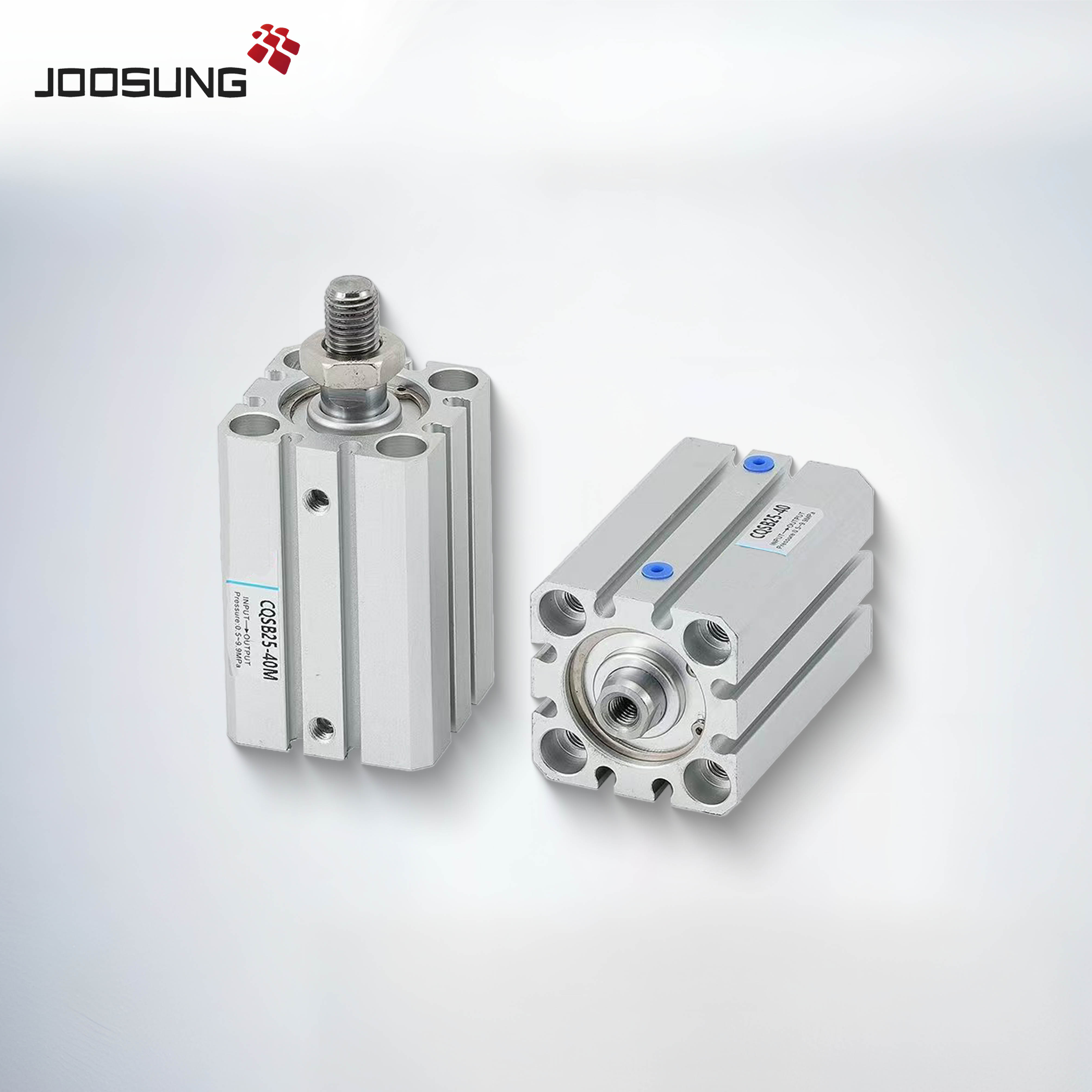

CQSB25Series | CQSB25-5D, CQSB25-10D, CQSB25-15D, CQSB25-20D, CQSB25-25D, CQSB25-30D, CQSB25-35D, CQSB25-40D, CQSB25-45D, CQSB25-50D, CQSB25-55D, CQSB25-60D |
Series Model | Available Models |

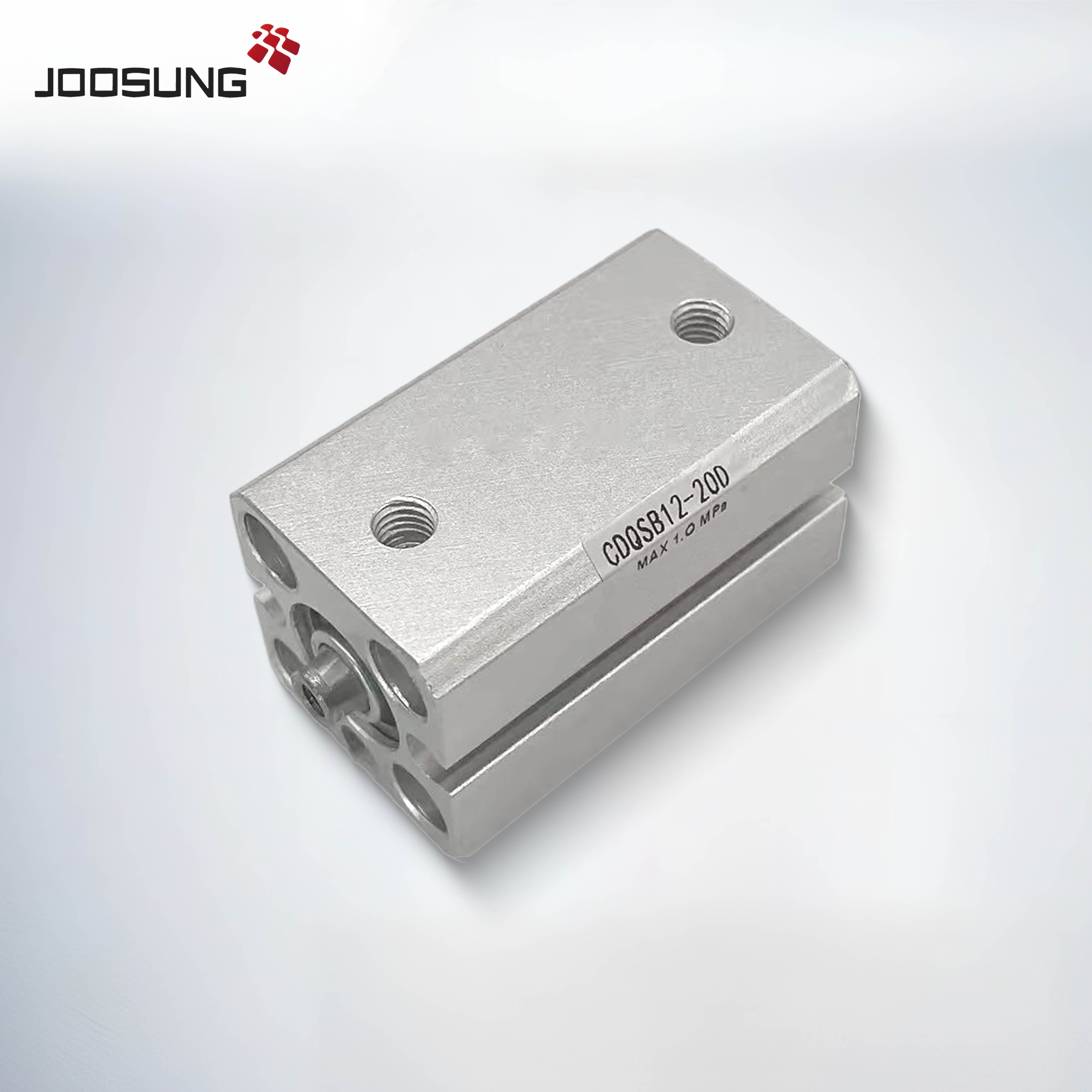

CDQSB12Series | CDQSB12-5D, CDQSB12-10D, CDQSB12-15D, CDQSB12-20D, CDQSB12-25D, CDQSB12-30D, CDQSB12-35D, CDQSB12-40D, CDQSB12-45D, CDQSB12-50D, CDQSB12-55D, CDQSB12-60D |
CDQSB16Series | CDQSB16-5D, CDQSB16-10D, CDQSB16-15D, CDQSB16-20D, CDQSB16-25D, CDQSB16-30D, CDQSB16-35D, CDQSB16-40D, CDQSB16-45D, CDQSB16-50D, CDQSB16-55D, CDQSB16-60D |
CDQSB20Series | CDQSB20-5D, CDQSB20-10D, CDQSB20-15D, CDQSB20-20D, CDQSB20-25D, CDQSB20-30D, CDQSB20-35D, CDQSB20-40D, CDQSB20-45D, CDQSB20-50D, CDQSB20-55D, CDQSB20-60D |

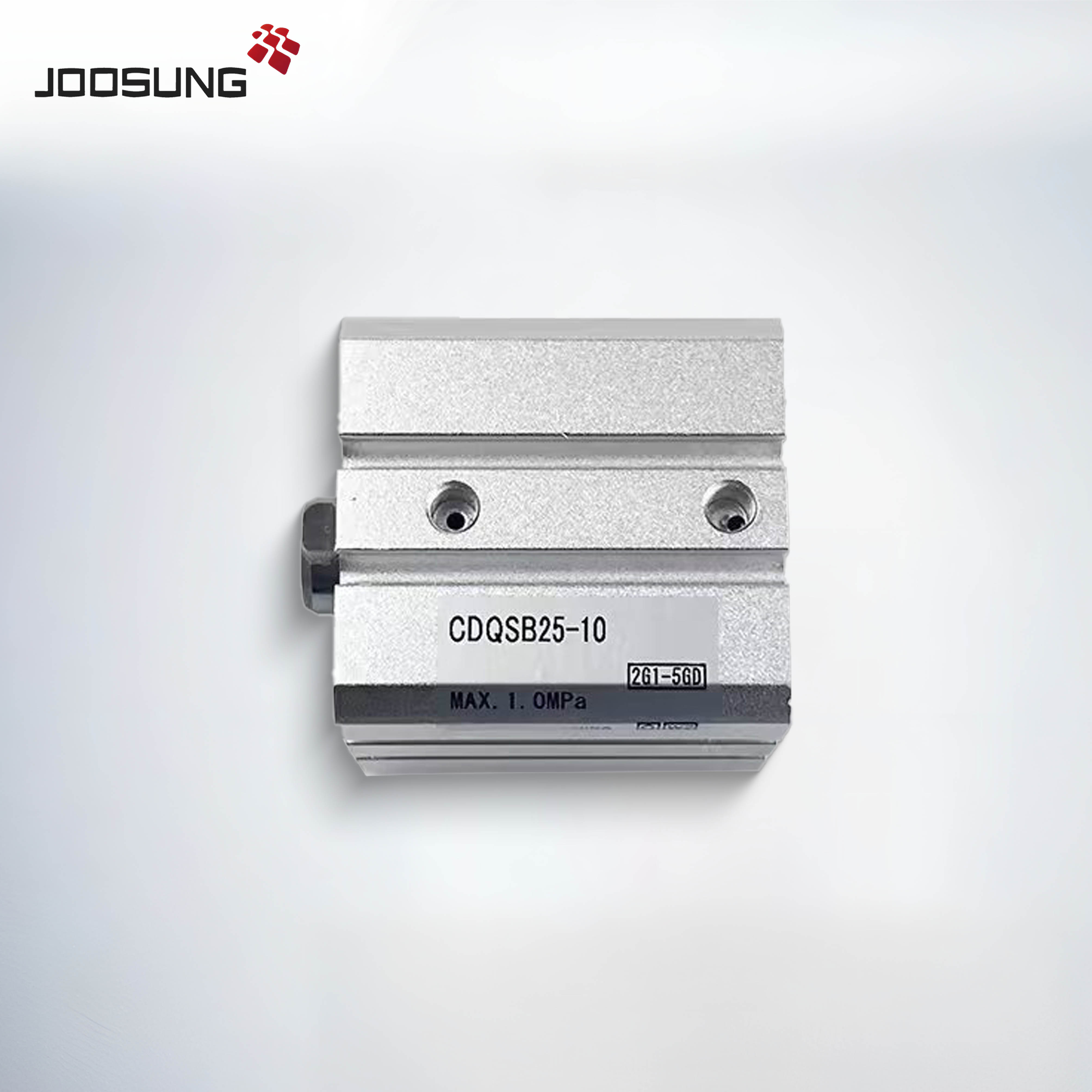

CDQSB25Series | CDQSB25-5D, CDQSB25-10D, CDQSB25-15D, CDQSB25-20D, CDQSB25-25D, CDQSB25-30D, CDQSB25-35D, CDQSB25-40D, CDQSB25-45D, CDQSB25-50D, CDQSB25-55D, CDQSB25-60D |
