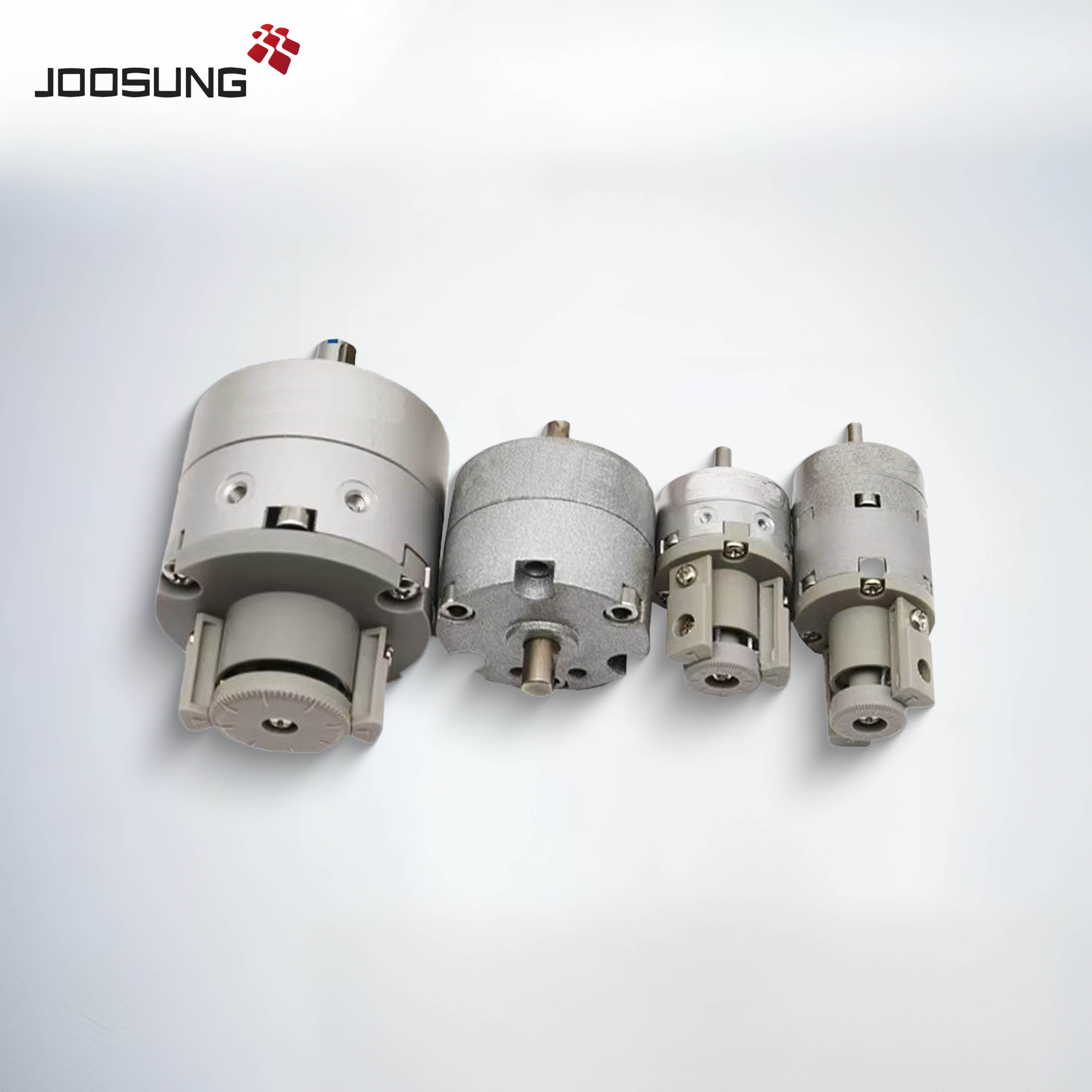

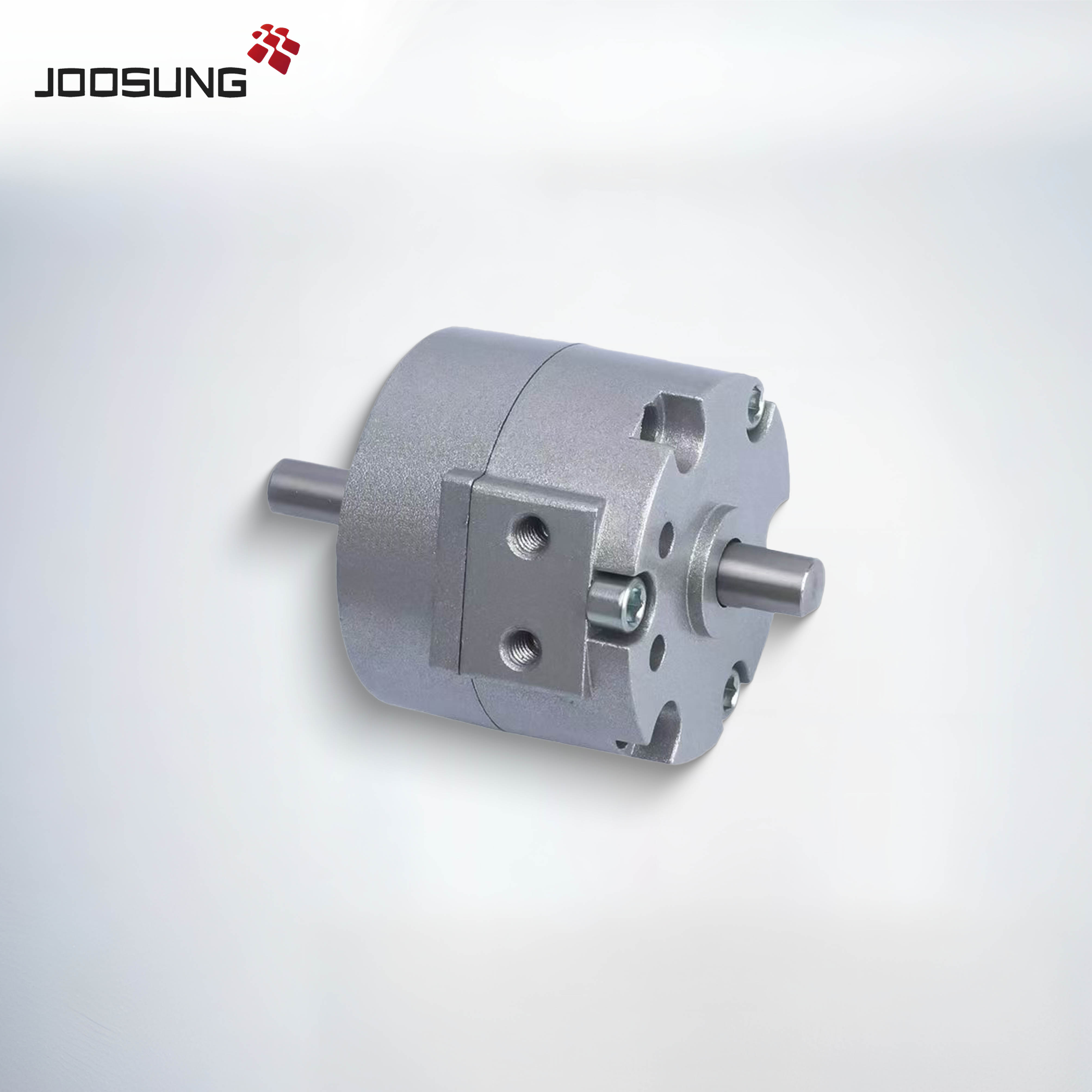

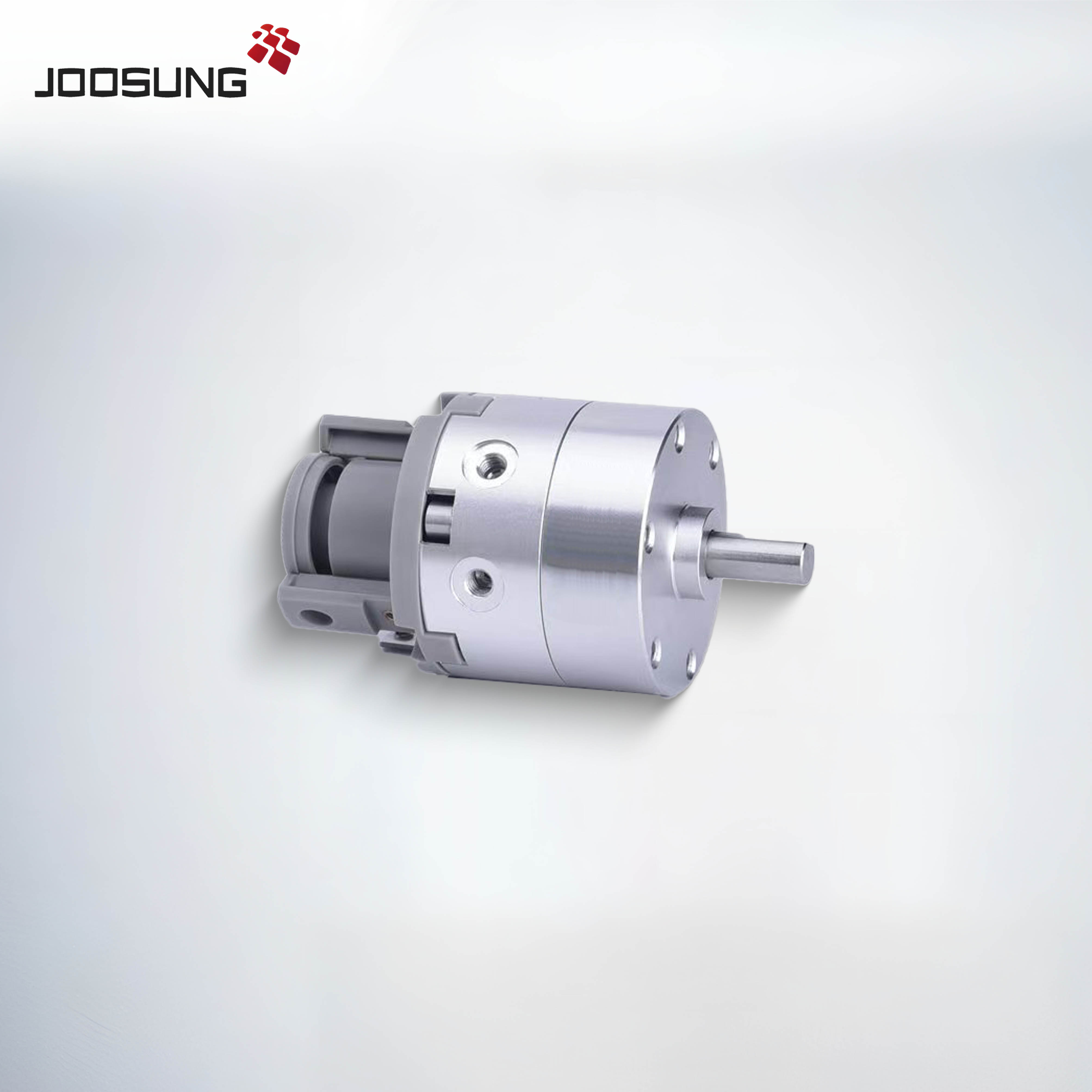

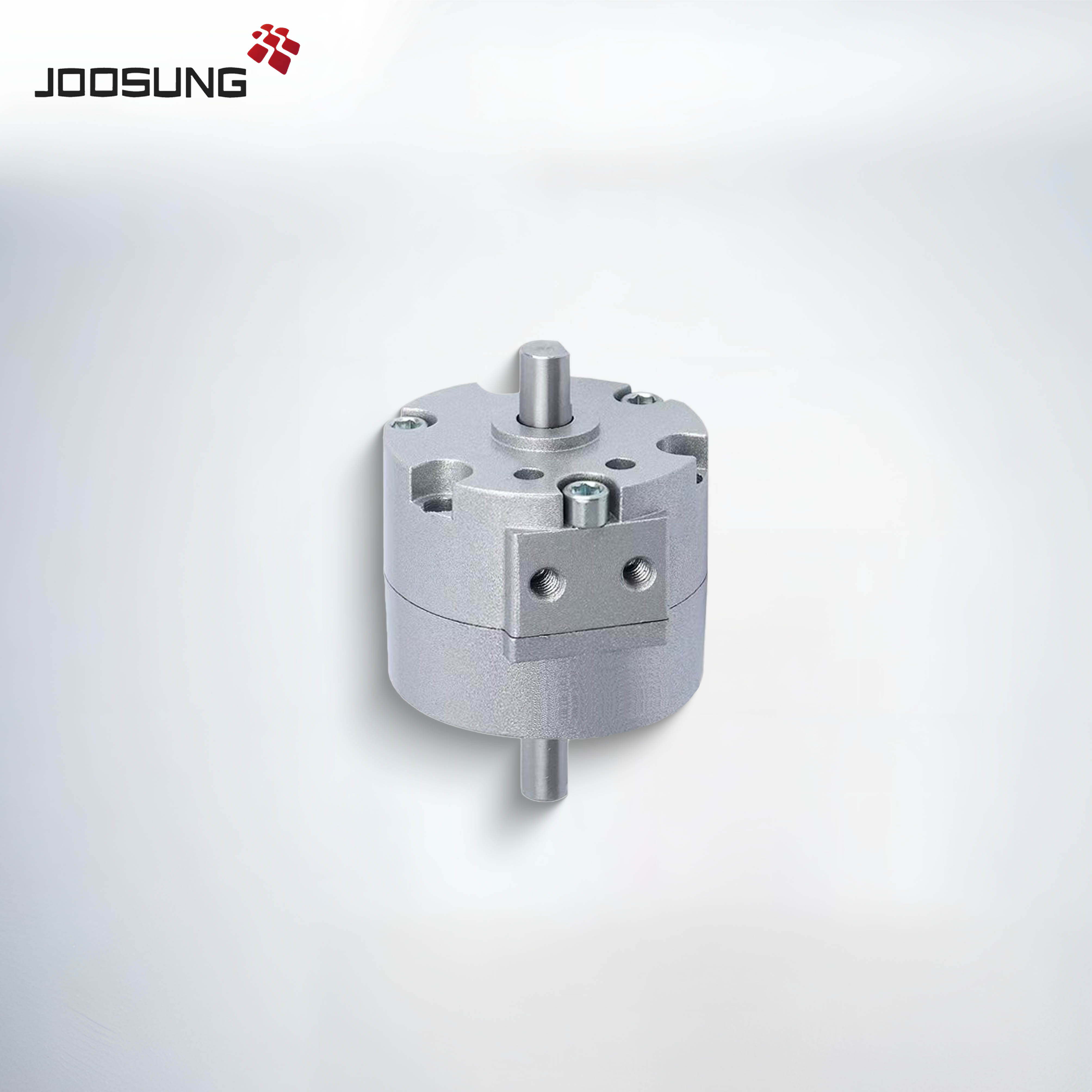

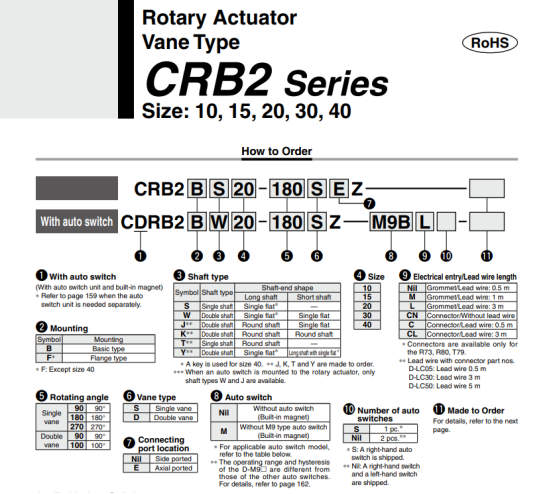

Single Vane Specifications

Size

10

15

20

30

40

Rotating angle

90°,180°,270°

Fluid

Air(Non-lube)

Proof pressure [MPa]

1.05

1.5

Ambient and fluid temperature

5 to 60℃

Max.operating pressure [MPa]

0.7

1.0

Min.operating pressure [MPa]

0.2

0.15

Rotation time adjustment range s/90°Note 1)

0.03 to 0.3

0.04 to 0.3

0.07 to 0.5

Allowable kinetic energy [J]Note 2)

0.00015

0.001

0.003

0.02

0.04

0.00025

0.0004

0.015

0.03

Shaft load
[N]

Allowable radial load

15

15

25

30

60

Allowable thrust load

10

10

20

25

40

Port location

Side ported or Axial ported

Port size (Side ported,Axial ported)

M3×0.5

M5x0.8

Angle adjustable range Note 3)

0 to 230°

0 to 240°

0 to 230°

Note 1)Make sure to use the actuator within the adjustable speed range.Exceeding the low
speed range(0.3 s/90°)can cause the unit to stick or not operate.

For size 10,when operation at the maximum speed (0.03 s/90°)is required,the operating
pressure should be set to 0.35 MPa or higher.

Note 2)The upper numbers in this section in the table indicate the energy factor when the rubber
bumper is used (at the end of the rotation),and the lower numbers indicate the energy
factor when the rubber bumper is not used.

Note 3)Adjustment range in the table is for 270°.For 90°and 180°

Double Vane Specifications

Size

10

15

20

30

40

Rotating angle

90°,100°

Fluid

Air(Non-lube)

Proof pressure [MPa]

1.05

1.5

Ambient and fluid temperature

5 to 60℃

Max.operating pressure [MPa]

0.7

1.0

Min.operating pressure [MPa]

0.2

0.15

Rotation time adjustment range s90 Node¹)

0.03 to 0.3

0.04 to 0.3

0.07 to 0.5

Allowable kinetic energy [J]

0.0003

0.0012

0.0033

0.02

0.04

Shaft load
[N]

Allowable radial load

15

15

25

30

60

Allowable thrust load

10

10

20

25

40

Port location

Side ported or Axial ported

Port size (Side ported,Axial ported)

M3×0.5

M5x0.8

Angle adjustable range Note 2)

0 to 90°

Note 1)Make sure to use the actuator within the adjustable speed range.Exceeding the low
speed range(0.3 s/90°)can cause the unit to stick or not operate.

For size 10,when operation at the maximum speed (0.03 s/90°)is required,the operating
pressure should be set to 0.35 MPa or higher.

Note 2)Adjustment range in the table is for 100°.For 90°
