Specification | ||||||||||
Boresize(mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 200 | |
Acting type | Double acting | |||||||||
Fluid | Air(to be filtered by a 40μm filter element) | |||||||||
Mounting | SAl | Basic FA FB CA CB CR LB TC FTC TCM1 TCM2 | ||||||||
SAID、SAIJ | Basic FA LB TC FTC TCM1 TCM2 | |||||||||
Operating pressure | 0.15~1.0MPa(22~145psi)(1.5~10.0bar) | |||||||||
Proof pressure | 1.5MPa(215psi)(15bar) | |||||||||
Temperature ℃ | -20~70 | |||||||||
Speed range mm/s | 30~800 | 30~500 | ||||||||
Stroke tolerance | 0~250+6°251~1000+b⁵1001~1500+30 | |||||||||
Cushion type | Variable cushion | |||||||||
Adjustable cushion stroke | 27 | 30 | 36 | 40 | 50 | |||||
Port size [Note1] | 1/8" | 1/4" | 3/8" | 1/2" | 3/4" | |||||

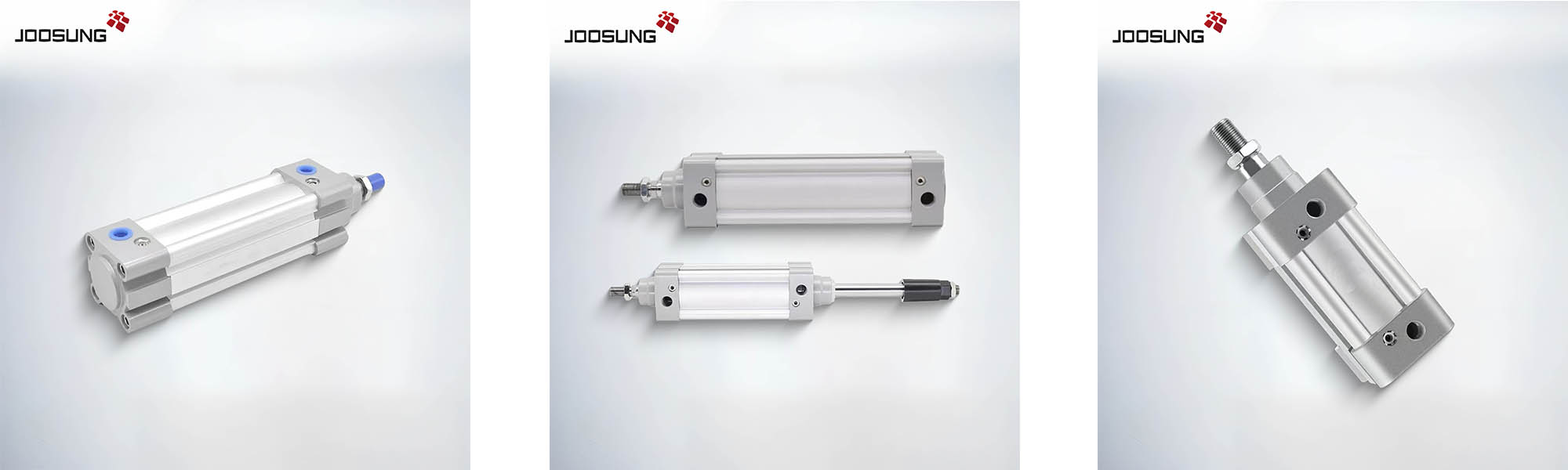

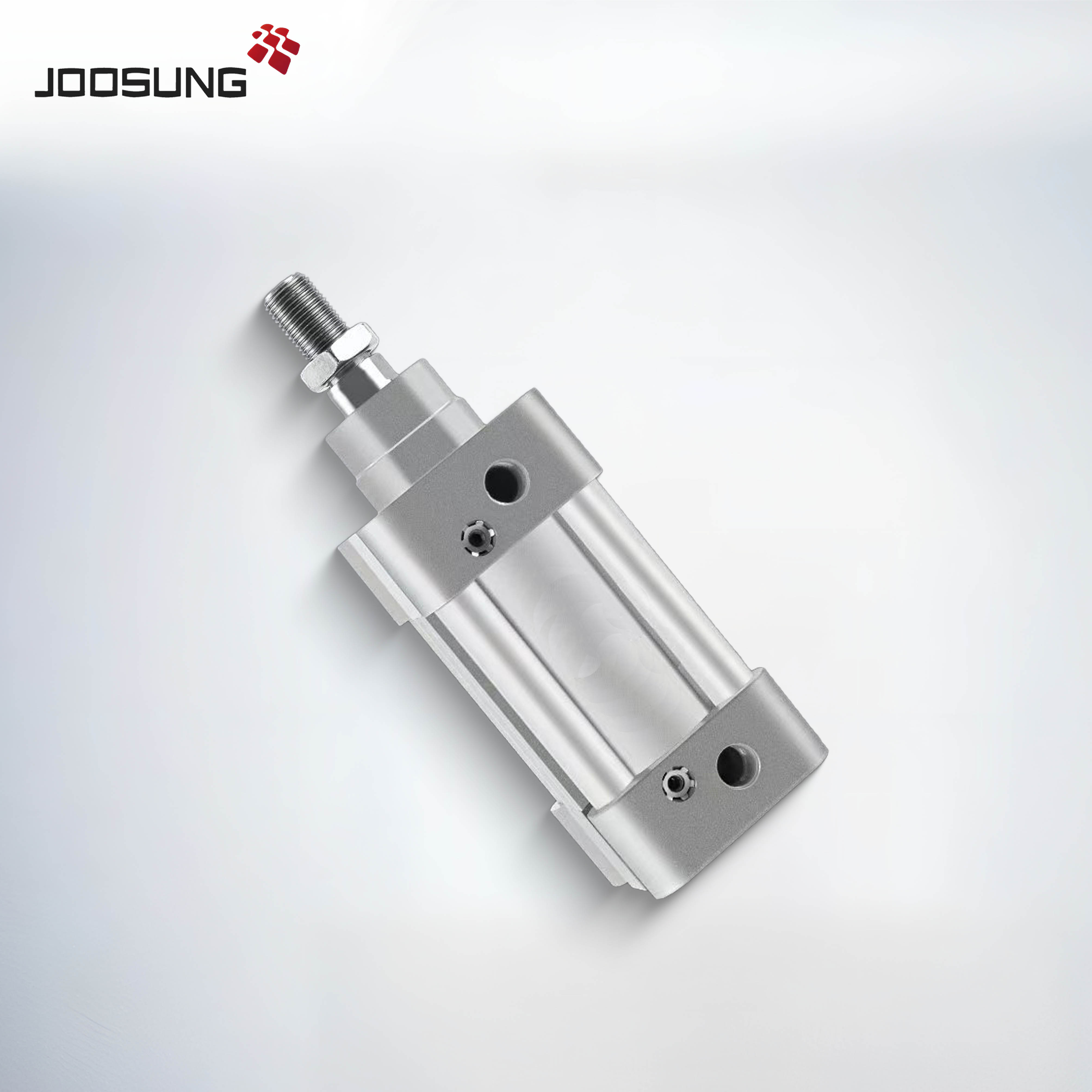

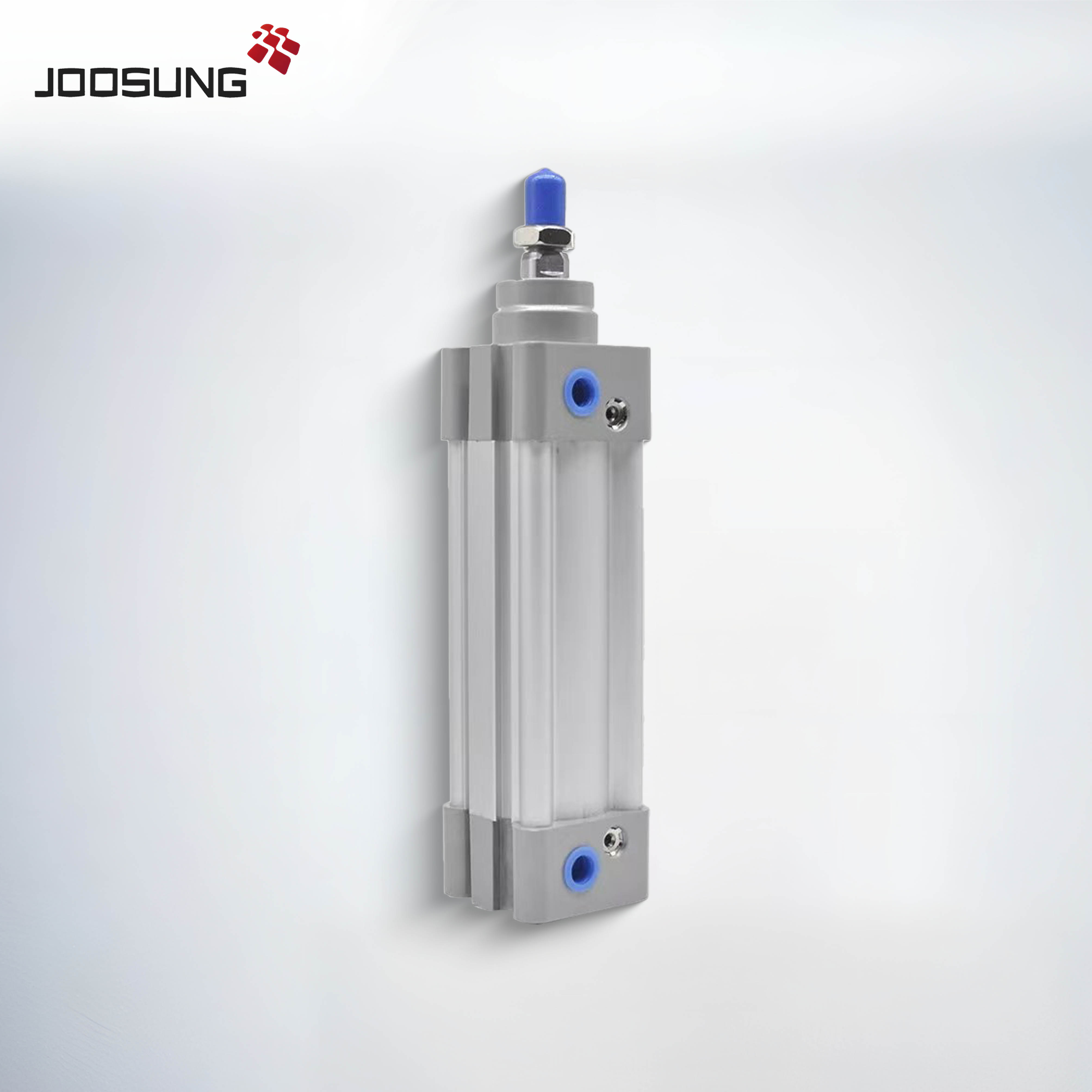

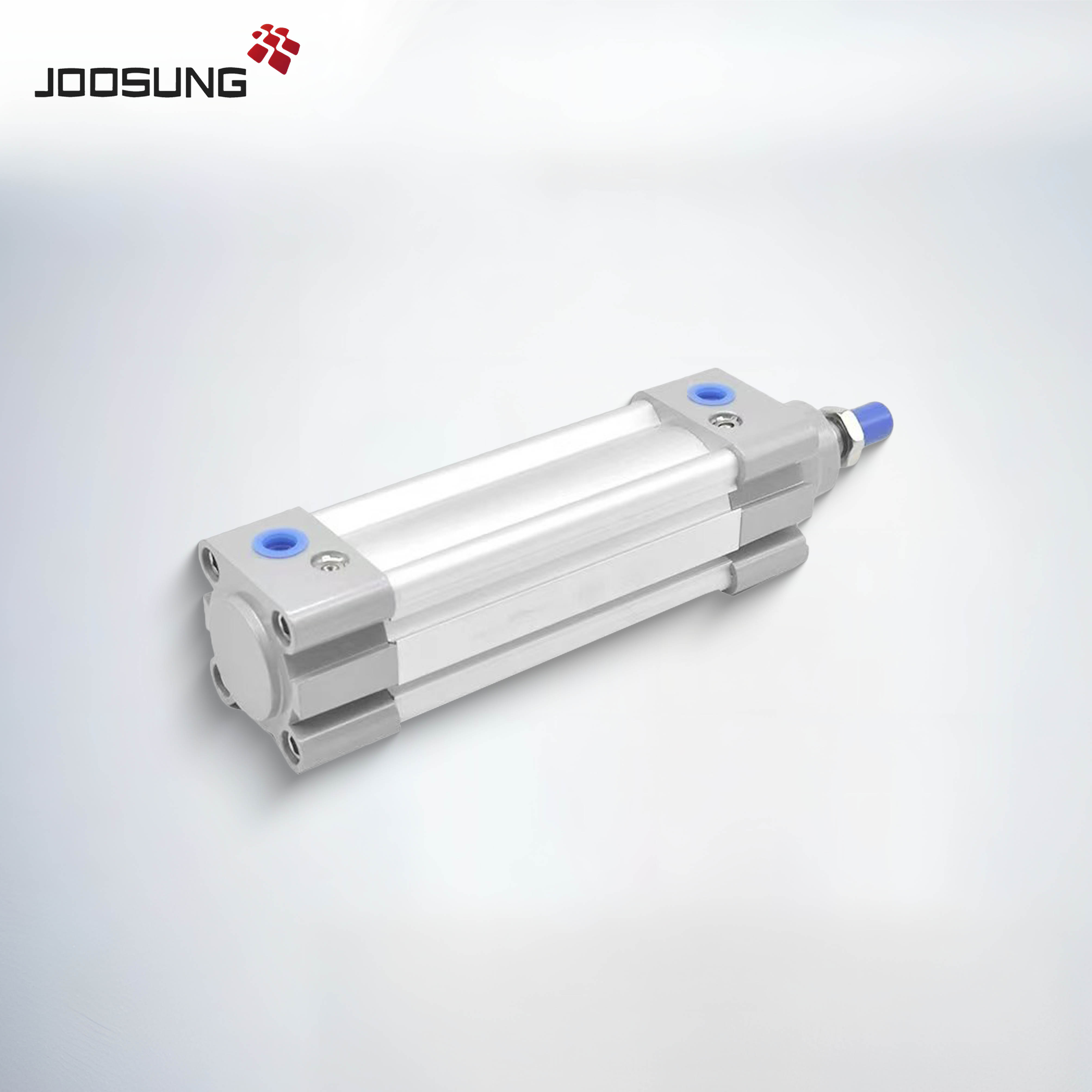

High-Performance SAI Series Standard Pneumatic Cylinder for Industrial Automation
The SAI series standard pneumatic cylinder is engineered for precision, durability, and long service life. With a robust aluminum alloy body and high-quality seals, the SAI series standard pneumatic cylinder ensures smooth and efficient linear motion in demanding industrial environments.
Whether used in manufacturing lines, automated machinery, or pneumatic systems, the SAI series standard pneumatic cylinder delivers consistent performance and minimal maintenance. Designed to meet ISO standards, the SAI series standard pneumatic cylinder is easy to install and compatible with a wide range of mounting options.
Upgrade your automation systems with the SAI series standard pneumatic cylinder— reliable, efficient, and built to last.
SAI Series Models | ||||
SAI32X25 | SAI32X50 | SAI32X75 | SAI32X100 | SAI32X125 |
SAI32X150 | SAI40X50 | SAI40X75 | SAI40X100 | SAI40X125 |
SAI40X150 | SAI40X175 | SAI40X200 | SAI40X250 | SAI50X50 |
SAI50X75 | SAI50X80 | SAI50X100 | SAI50X125 | SAI50X150 |
SAI50X160 | SAI50X175 | SAI50X200 | SAI50X250 | SAI50X300 |
SAI63X75 | SAI63X80 | SAI63X100 | SAI63X125 | SAI63X150 |
SAI63X200 | SAI63X250 | SAI63X300 | SAI63X350 | SAI80X80 |
SAI80X100 | SAI80X125 | SAI80X150 | SAI80X175 | SAI80X200 |
SAI80X250 | SAI80X300 | SAI80X350 | SAI80X400 | SAI80X450 |
