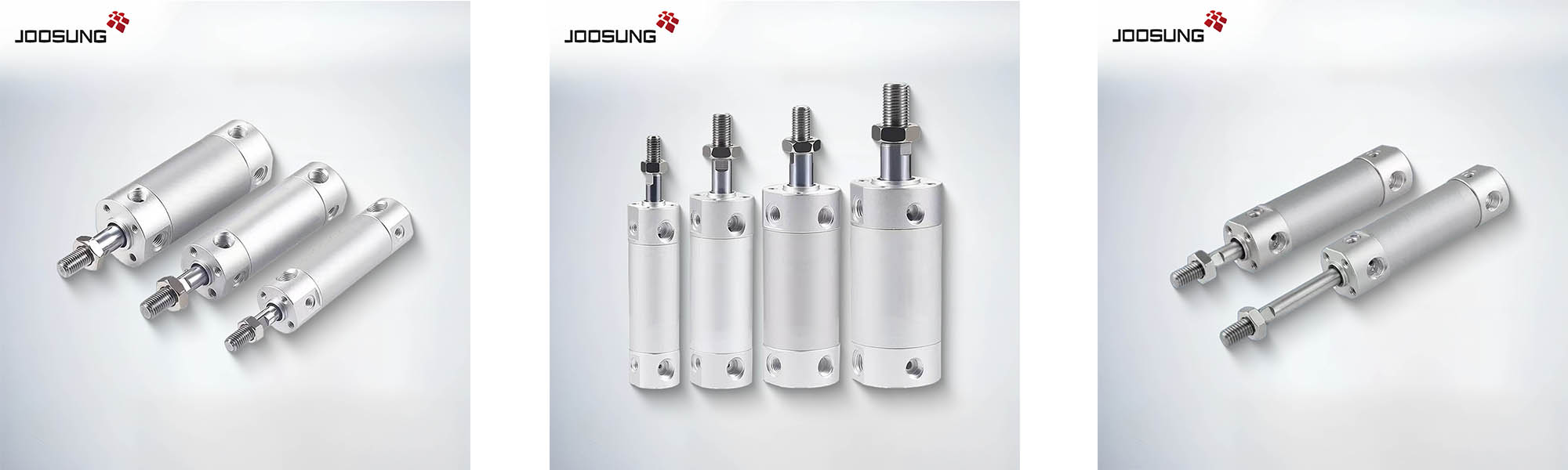

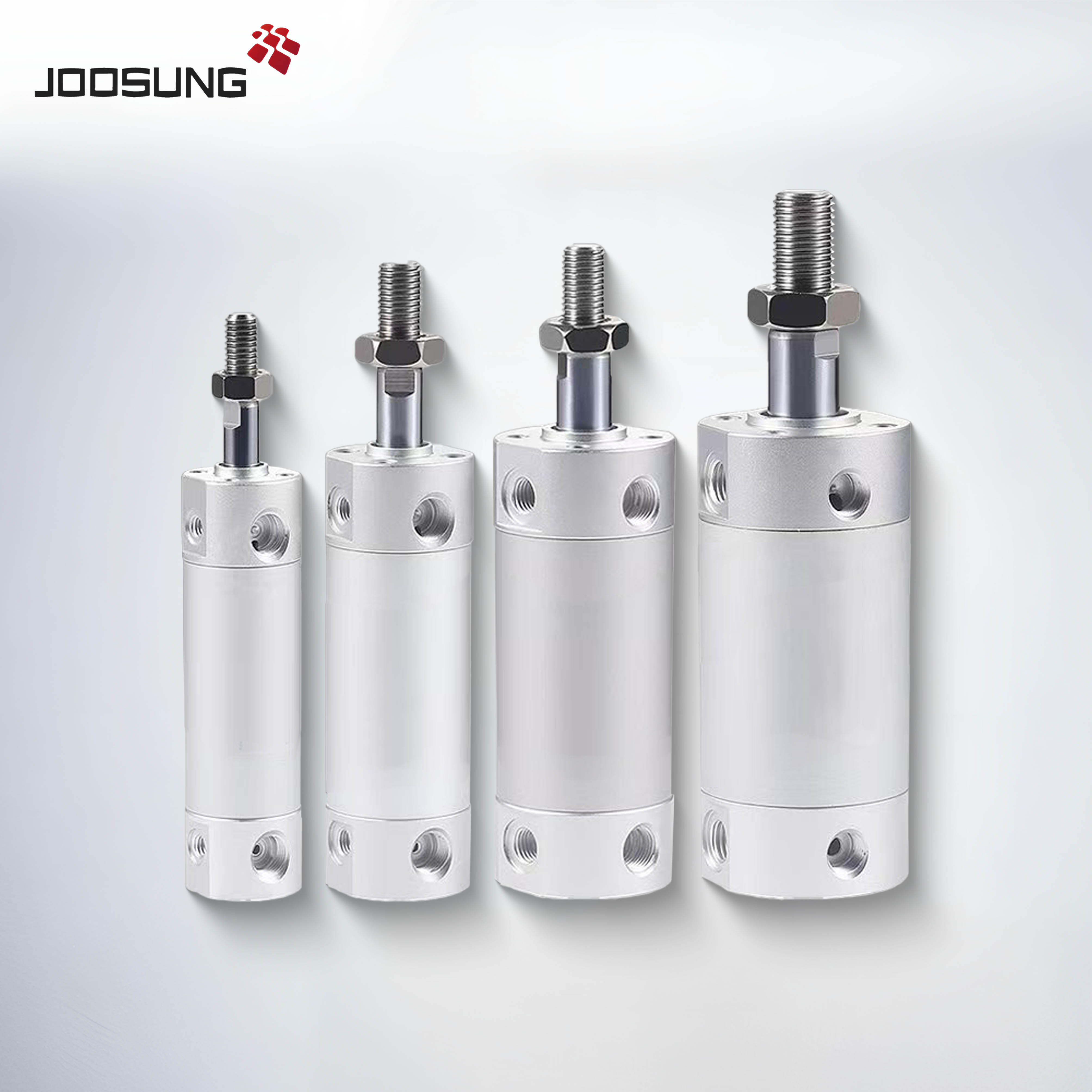

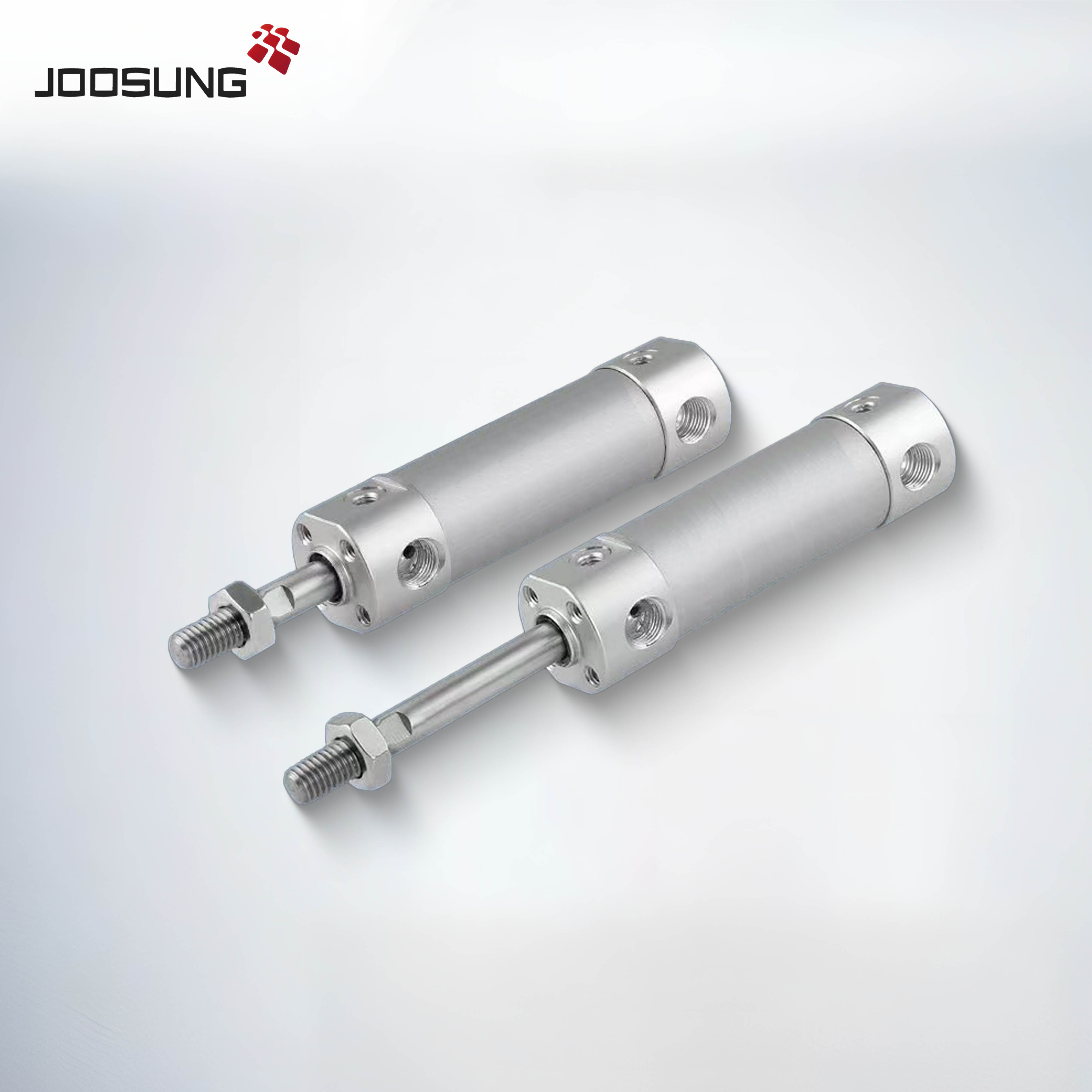

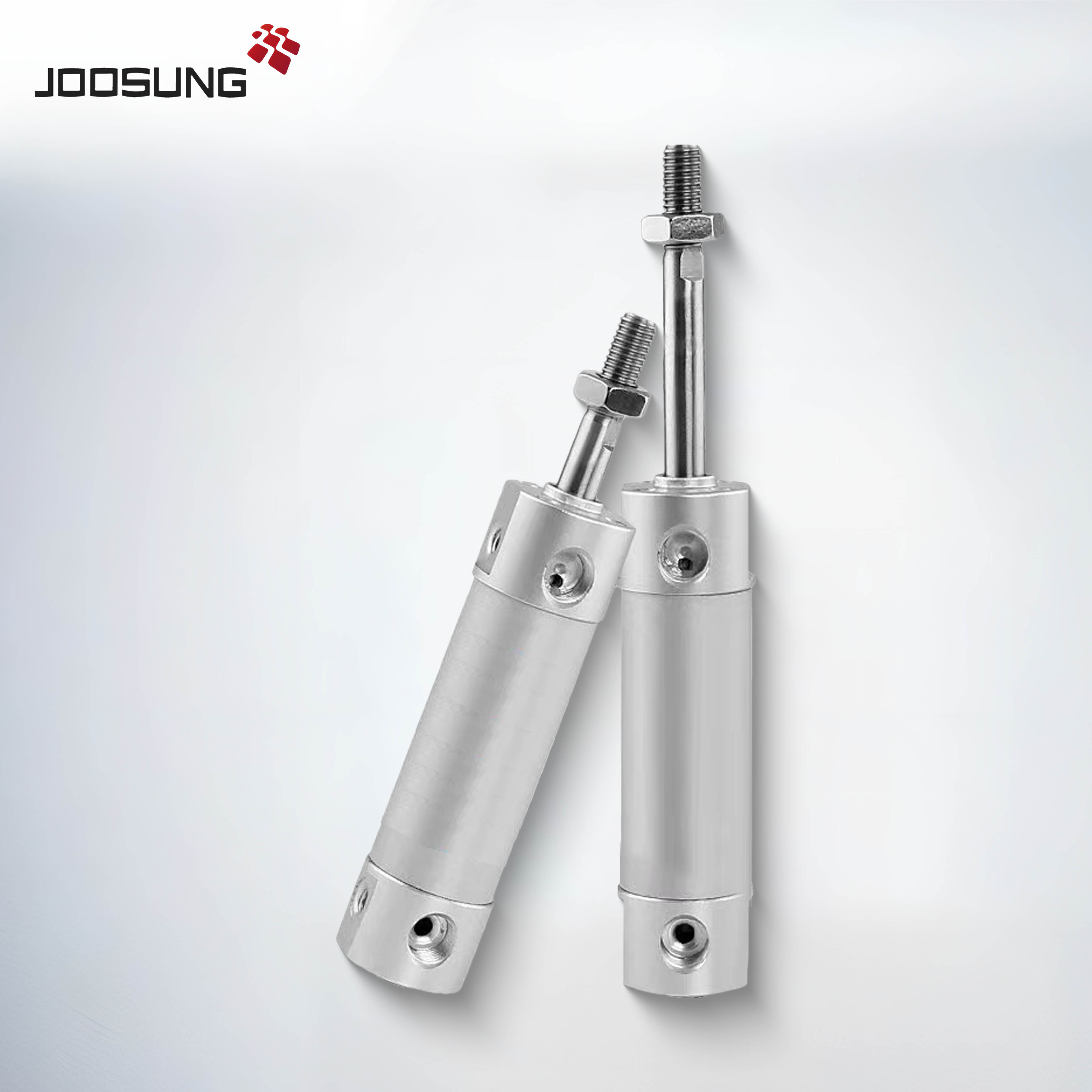

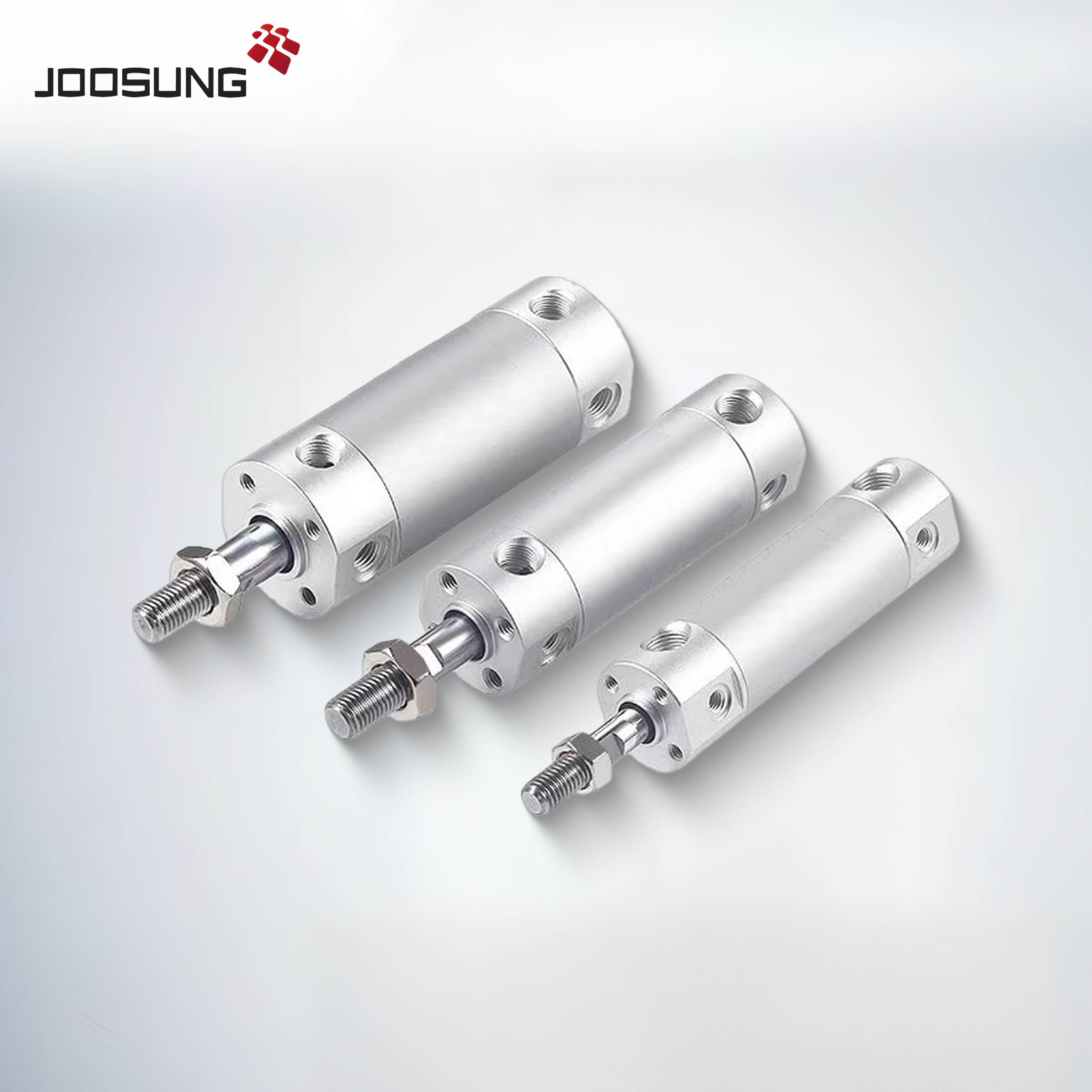

Specifications

Boresize[mm]

20

25

32

40

50

63

80

100

Action

Double acting, Single rod

Lubricant

Not required (Non-lube)

Fluid

Air

Proofpressure

1.5 MPa

Maximumoperatingpressure

1.0 MPa

Minimumoperatingpressure

0.05 MPa

Ambientandfluid
temperatures

Without auto switch:-10℃ to 70℃
(No freezing)
With auto switch :-10℃ to 60℃

Pistonspeed

50 to 1000 mm/s

50 to 700 mm/s

Strokelengthtolerance*1

Up to 1000 st +14mm

Cushion

Rubber bumper

Mounting*2

Basic(Without trunnion mounting female thread),
Basic(With trunnion mounting female thread),
Axial foot,Rod flange,Head flange,
Rod trunnion,Head trunnion,Clevis

Allowablekinetic
energy
[J]

Male
rodend

0.28

0.41

0.66

1.20

2.00

3.40

5.90

9.90

Female
rodend

0.11

0.18

0.29

0.52

0.91

1.54

2.71

4.54

Series Model

Available Models

CDG1BN20 Series

CDG1BN20-25,CDG1BN20-50,CDG1BN20-75,CDG1BN20-80,CDG1BN20-100,CDG1BN20-125,

CDG1BN20-150,CDG1BN20-160 CDG1BN20-175,CDG1BN20-200,CDG1BN20-250,CDG1BN20-300

CDG1BN25 Series

CDG1BN25-25,CDG1BN25-50,CDG1BN25-75,CDG1BN25-80,CDG1BN25-100,CDG1BN25-125,

CDG1BN25-150,CDG1BN25-160 CDG1BN25-175,CDG1BN25-200,CDG1BN25-250,

CDG1BN25-300,CDG1BN25-350,CDG1BN25-400,CDG1BN25-450,CDG1BN25-500

CDG1BN32 Series

CDG1BN32-25,CDG1BN32-50,CDG1BN32-75,CDG1BN32-80,CDG1BN32-100,CDG1BN32-125,

CDG1BN32-150,CDG1BN32-160 CDG1BN32-175,CDG1BN32-200,CDG1BN32-250,

CDG1BN32-300,CDG1BN32-350,CDG1BN32-400,CDG1BN32-450,CDG1BN32-500

CDG1BN40 Series

CDG1BN40-25,CDG1BN40-50,CDG1BN40-75,CDG1BN40-80,CDG1BN40-100,CDG1BN40-125,

CDG1BN40-150,CDG1BN40-160 CDG1BN40-175,CDG1BN40-200,CDG1BN40-250,

CDG1BN40-300,CDG1BN40-350,CDG1BN40-400,CDG1BN40-450,CDG1BN40-500

CDG1BN50Series

CDG1BN50-25,CDG1BN50-50,CDG1BN50-75,CDG1BN50-80,CDG1BN50-100,

CDG1BN50-125,CDG1BN50-150,CDG1BN50-160 CDG1BN50-175,

CDG1BN50-200,CDG1BN50-250,CDG1BN50-300,CDG1BN50-350,

CDG1BN50-400,CDG1BN50-450,CDG1BN50-500

CDG1BN63Series

CDG1BN63-25,CDG1BN63-50,CDG1BN63-75,CDG1BN63-80,CDG1BN63-100,

CDG1BN63-125,CDG1BN63-150,CDG1BN63-160 CDG1BN63-175,

CDG1BN63-200,CDG1BN63-250,CDG1BN63-300,CDG1BN63-350,

CDG1BN63-400,CDG1BN63-450,CDG1BN63-500

Series Model

Available Models

CDG1BN20 Series

CDG1BN20-25,CDG1BN20-50,CDG1BN20-75,CDG1BN20-80,

CDG1BN20-100,CDG1BN20-125,CDG1BN20-150,CDG1BN20-160 CDG1BN20-175,

CDG1BN20-200,CDG1BN20-250,CDG1BN20-300

CG1BN25 Series

CG1BN25-25,CG1BN25-50,CG1BN25-75,CG1BN25-80,CG1BN25-100,

CG1BN25-125,CG1BN25-150,CG1BN25-160 CG1BN25-175,CG1BN25-200,

CG1BN25-250,CG1BN25-300,CG1BN25-350,CG1BN25-400,CG1BN25-450,CG1BN25-500

CG1BN32 Series

CG1BN32-25,CG1BN32-50,CG1BN32-75,CG1BN32-80,CG1BN32-100,

CG1BN32-125,CG1BN32-150,CG1BN32-160 CG1BN32-175,CG1BN32-200,

CG1BN32-250,CG1BN32-300,CG1BN32-350,CG1BN32-400,CG1BN32-450,CG1BN32-500

CG1BN40 Series

CG1BN40-25,CG1BN40-50,CG1BN40-75,CG1BN40-80,CG1BN40-100,

CG1BN40-125,CG1BN40-150,CG1BN40-160 CG1BN40-175,CG1BN40-200,

CG1BN40-250,CG1BN40-300,CG1BN40-350,CG1BN40-400,CG1BN40-450,CG1BN40-500

CG1BN50Series

CG1BN50-25,CG1BN50-50,CG1BN50-75,CG1BN50-80,CG1BN50-100,

CG1BN50-125,CG1BN50-150,CG1BN50-160 CG1BN50-175,CG1BN50-200,

CG1BN50-250,CG1BN50-300,CG1BN50-350,CG1BN50-400,CG1BN50-450,CG1BN50-500

CG1BN63Series

CG1BN63-25,CG1BN63-50,CG1BN63-75,CG1BN63-80,CG1BN63-100,

CG1BN63-125,CG1BN63-150,CG1BN63-160 CG1BN63-175,CG1BN63-200,

CG1BN63-250,CG1BN63-300,CG1BN63-350,CG1BN63-400,CG1BN63-450,CG1BN63-500
