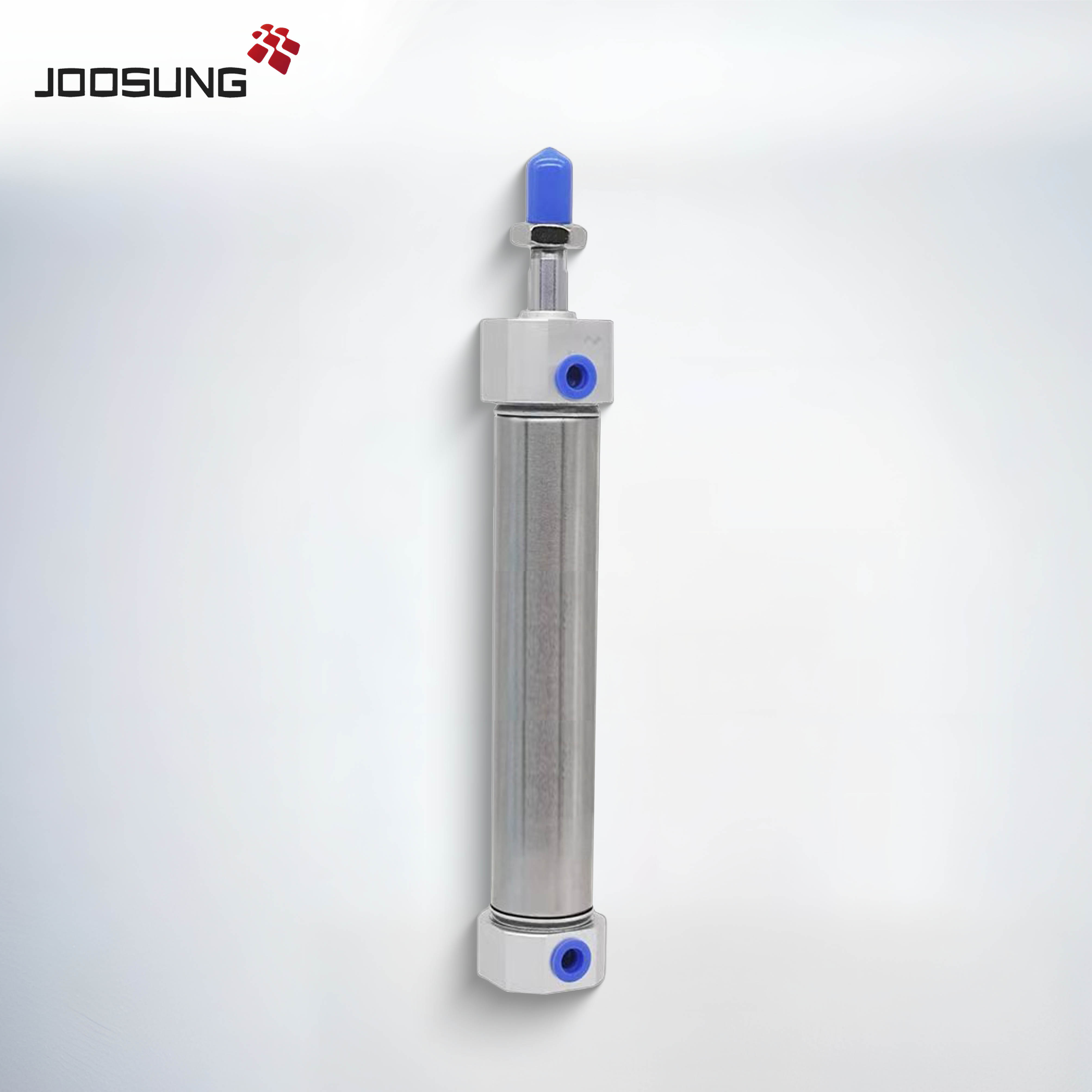

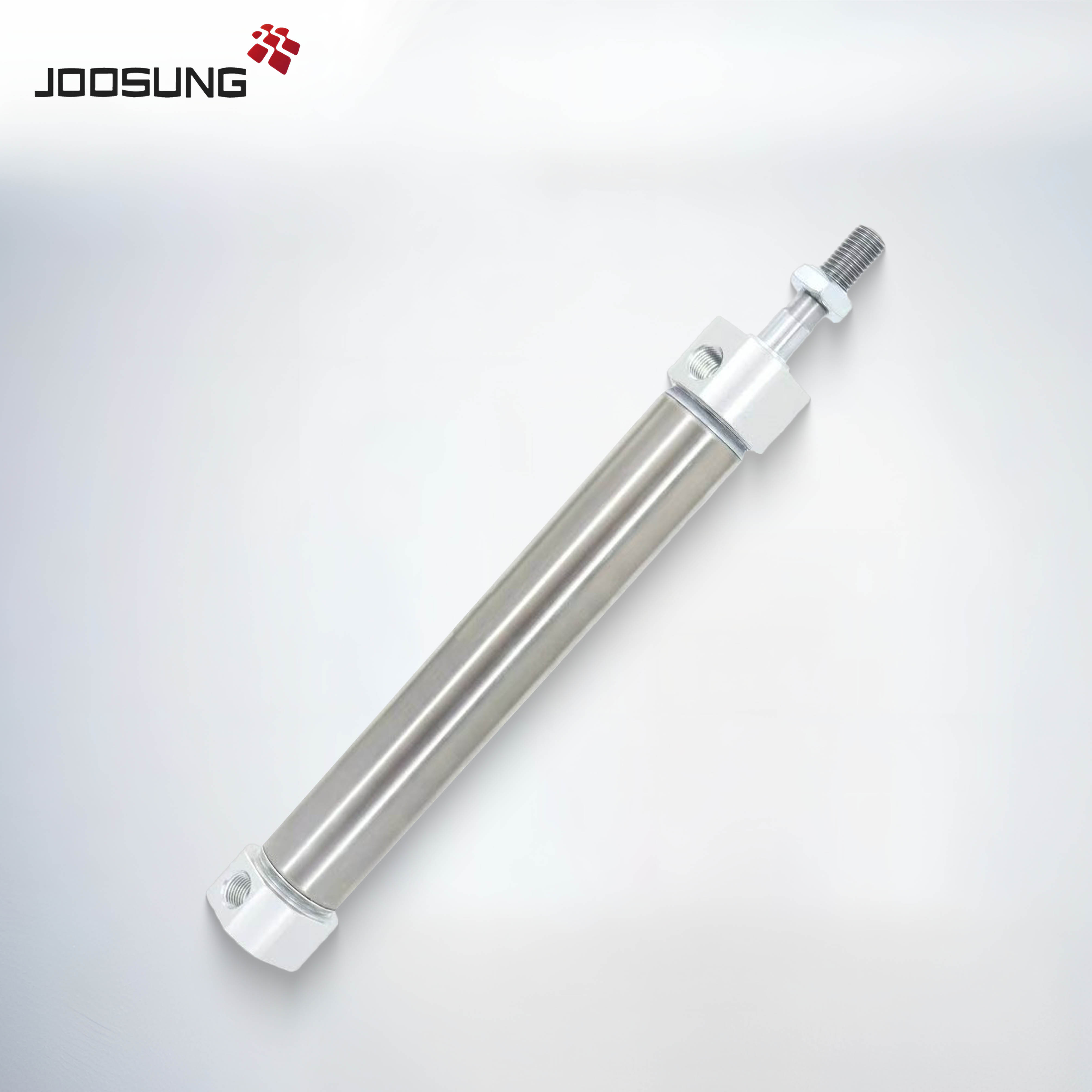

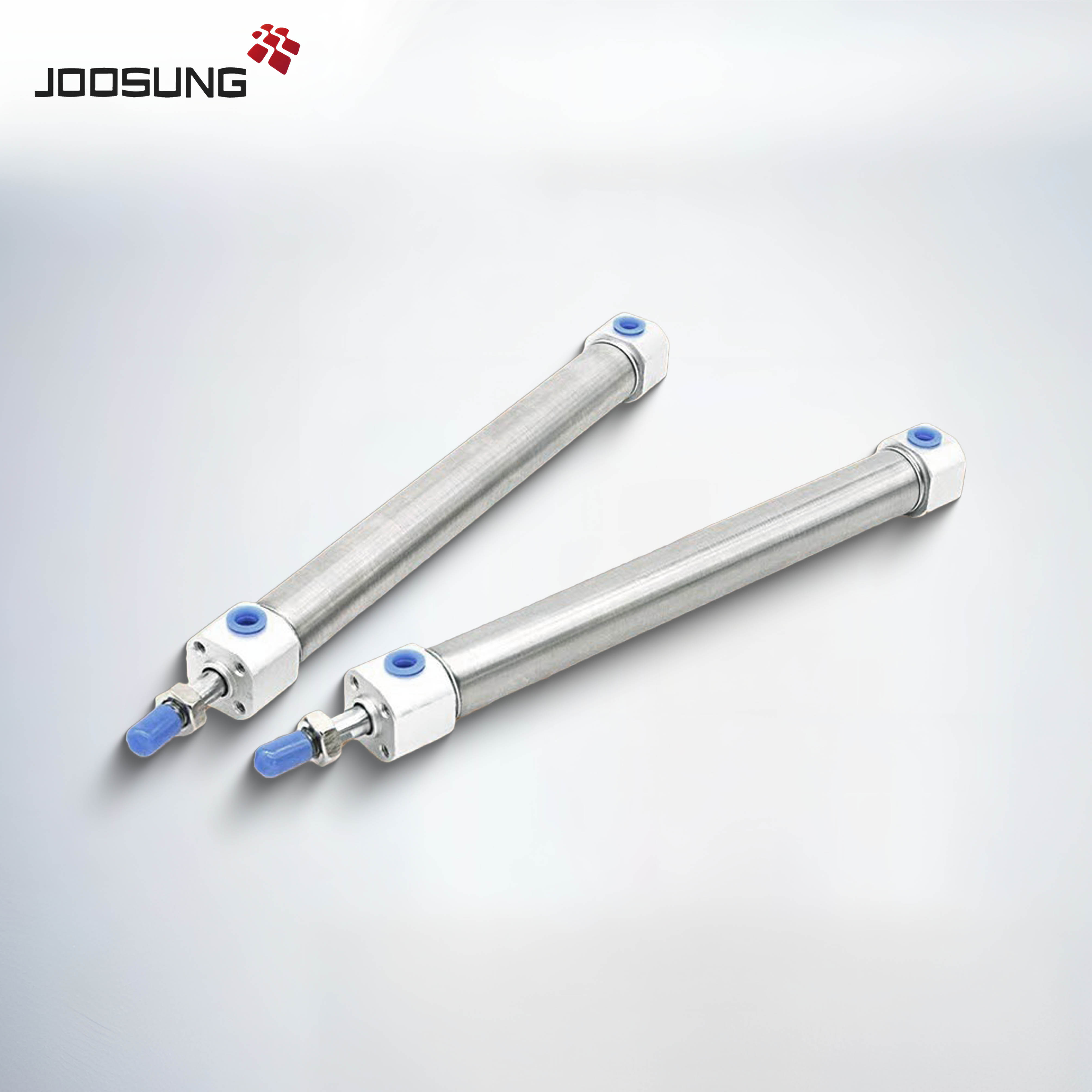

Specification

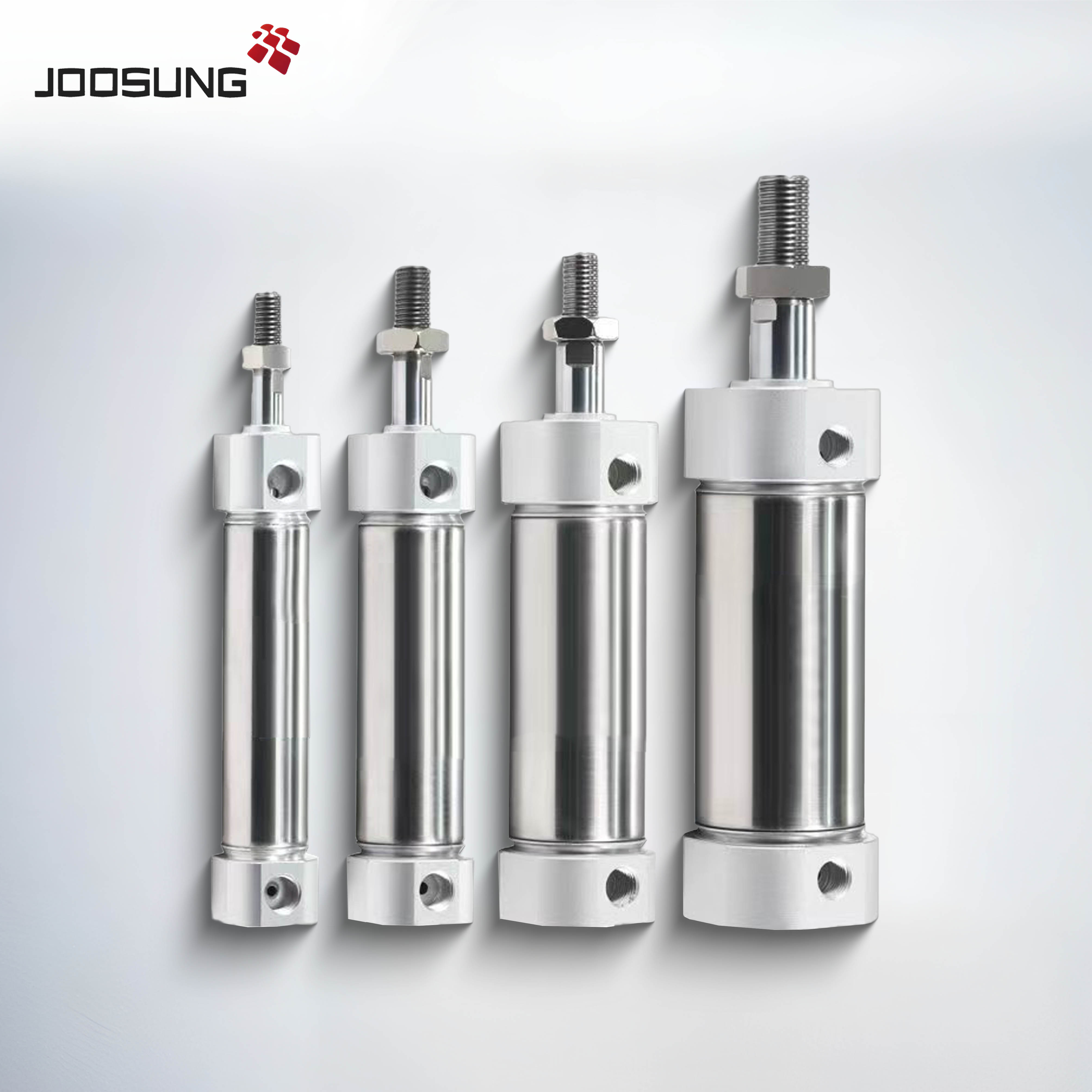

Boresize(mm)

20

25

32

40

50

63

Acting
type

MSG/MTG

Single acting

-

MG/MGD

Double acting

-

MGC/MGCD

Double acting with cushion

Fluid

Air(to be filtered by 40μm filter element)

Operating
pressure

Double acting

0.15~1.0MPa(22~145psi)(1.5~10.0bar)

Single acting

0.2~1.0MPa(28~145psi)(2.0~10.0bar)

Proof pressure

1.5MPa(215psi)(15bar)

Temperature ℃

-20~70

Speed range mm/s

Double acting:30~800 Single acting:50~800

Stroke tolerance

0~150+10>150+15

Cushion type

Variable cushion、Bumper

Variable cushion

Port size
[Note1]

Variable cushion

M5×0.8

1/8"

1/4"

Bumper

1/8"

-

Series Model

Available Models

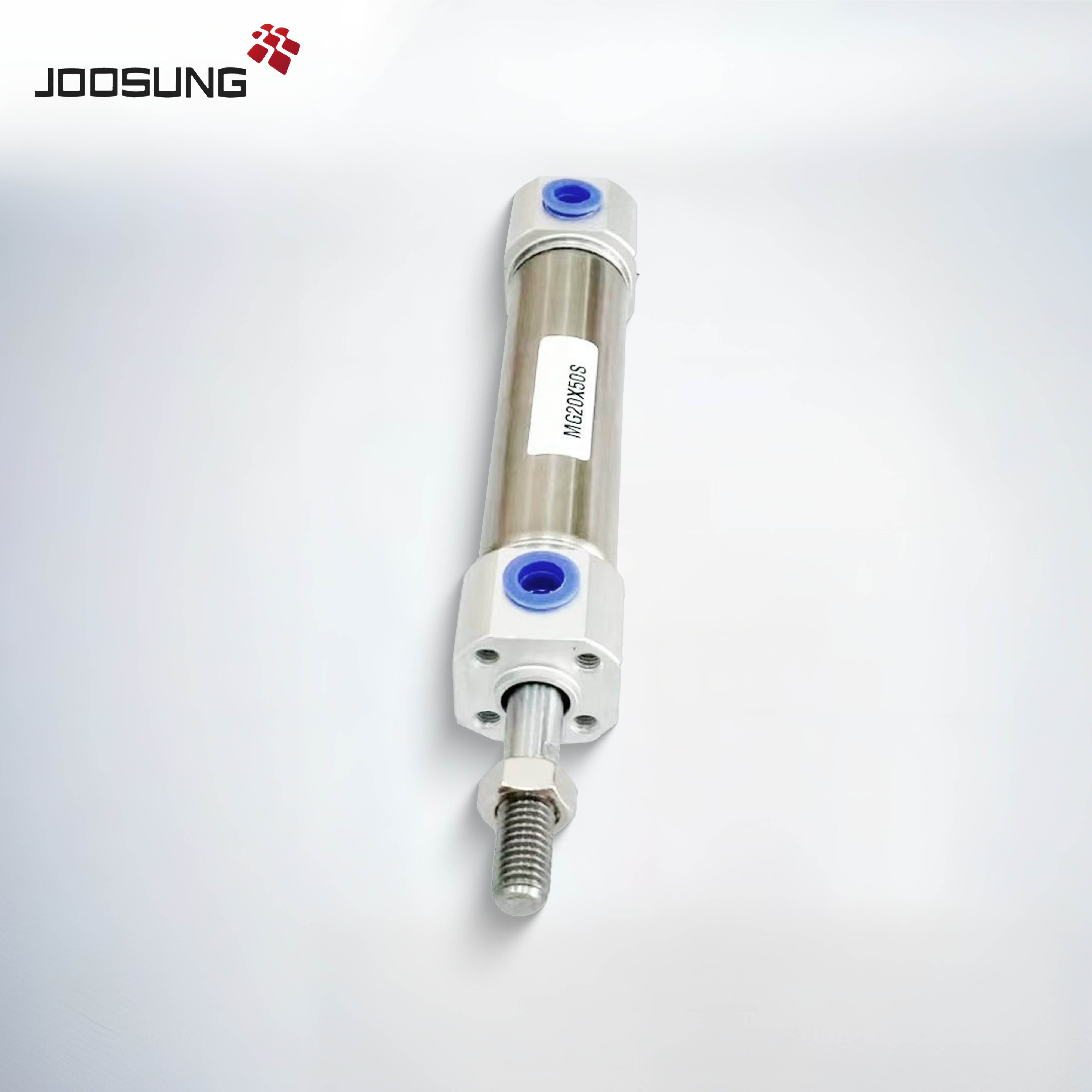

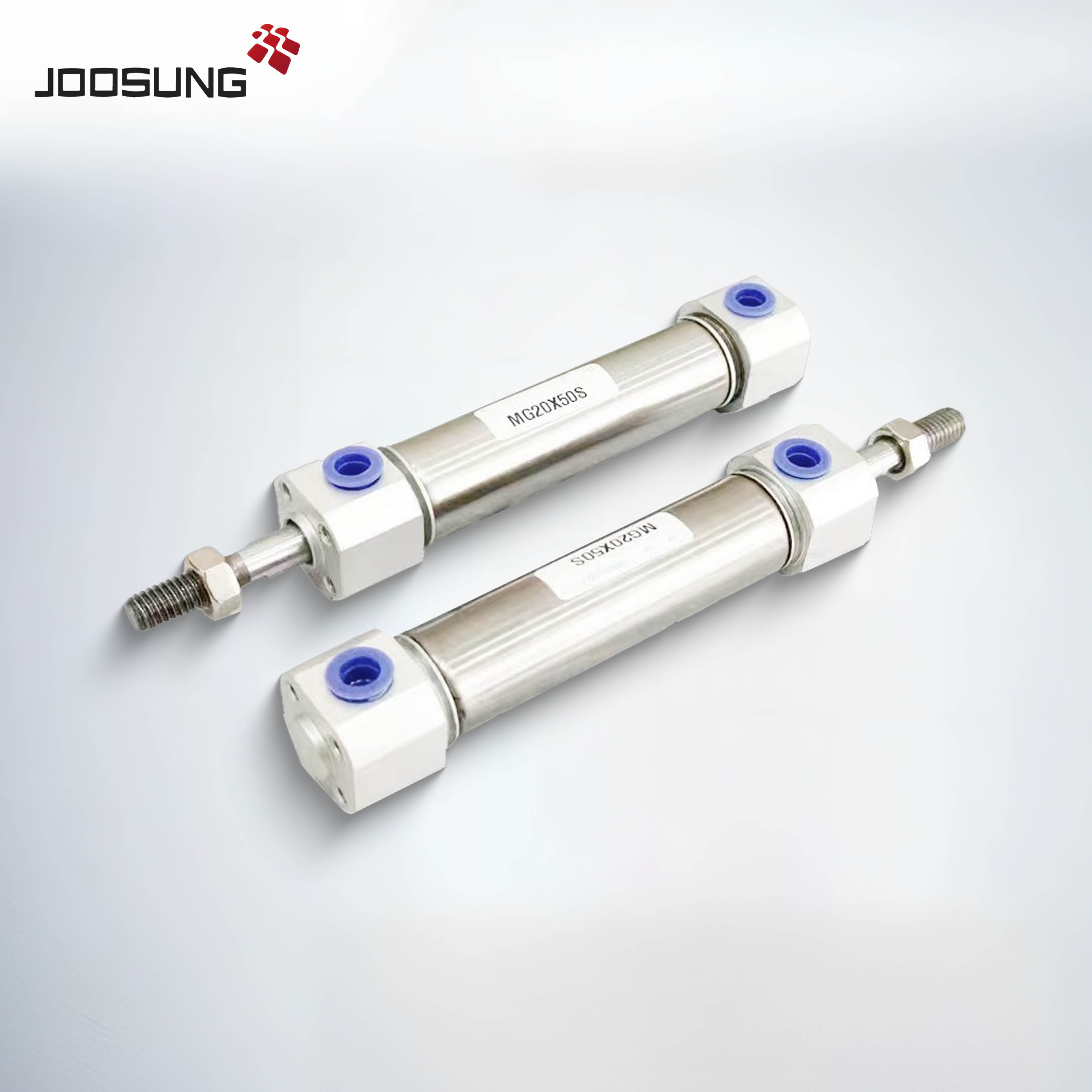

MG20Series

MG20-25,MG20-50,MG20-75,MG20-80,MG20-100,MG20-125,MG20-150,MG20-100 MG20-175,

MG20-200,MG20-250,MG20-300,MG20-350,MG20-100,MG20-450,MG20-500

MG25Series

MG25-25,MG25-50,MG25-75,MG25-80,MG25-100,MG25-125,MG25-150,MG25-160 MG25-175,

MG25-200,MG25-250,MG25-300,MG25-350,MG25-160,MG25-450,MG25-500

MG32Series

MG32-25,MG32-50,MG32-75,MG32-80,MG32-100,MG32-125,MG32-150,

MG32-160 MG32-175,MG32-200,MG32-250,MG32-300

MG40Series

MG40-25,MG40-50,MG40-75,MG40-80,MG40-100,MG40-125,MG40-150,MG40-160 MG40-175,

MG40-200,MG40-250,MG40-300,MG40-350,MG40-160,MG40-450,MG40-500

MG50Series

MG50-25,MG50-50,MG50-75,MG50-80,MG50-100,MG50-125,MG50-150,MG50-160 MG50-175,

MG50-200,MG50-250,MG50-300,MG50-350,MG50-160,MG50-450,MG50-500
