Specification | |||||||
Boresize(mm) | 20 | 25 | 32 | 40 | 50 | 63 | |
Acting | MSBL/MTBL | Single acting | 一 | ||||
MBL/MBLD/MBLJ | Double acting | ||||||
MBLC/MBLCD/MBLCJ | Double acting with cushion | ||||||
Fluid | Air(to be filtered by 40μm filter element) | ||||||
Operating | Double acting | 0.15~1.0MPa(22~145psi)(1.5~10.0bar) | |||||
Single acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | 一 | |||||
Proof pressure | 1.5MPa(215psi)(15bar) | ||||||
Temperature ℃ | -20~70 | ||||||
Speed range mm/s | Double acting:30~800 Single acting:50~800 | ||||||
Stroke tolerance | 0~150+10>150+15 | ||||||
Cushion type | MBLC,MBLCD,MBLCJ:Adjustable cushion;Others:Bumper | ||||||
Port size [Note1] | 1/8" | 1/4" | |||||

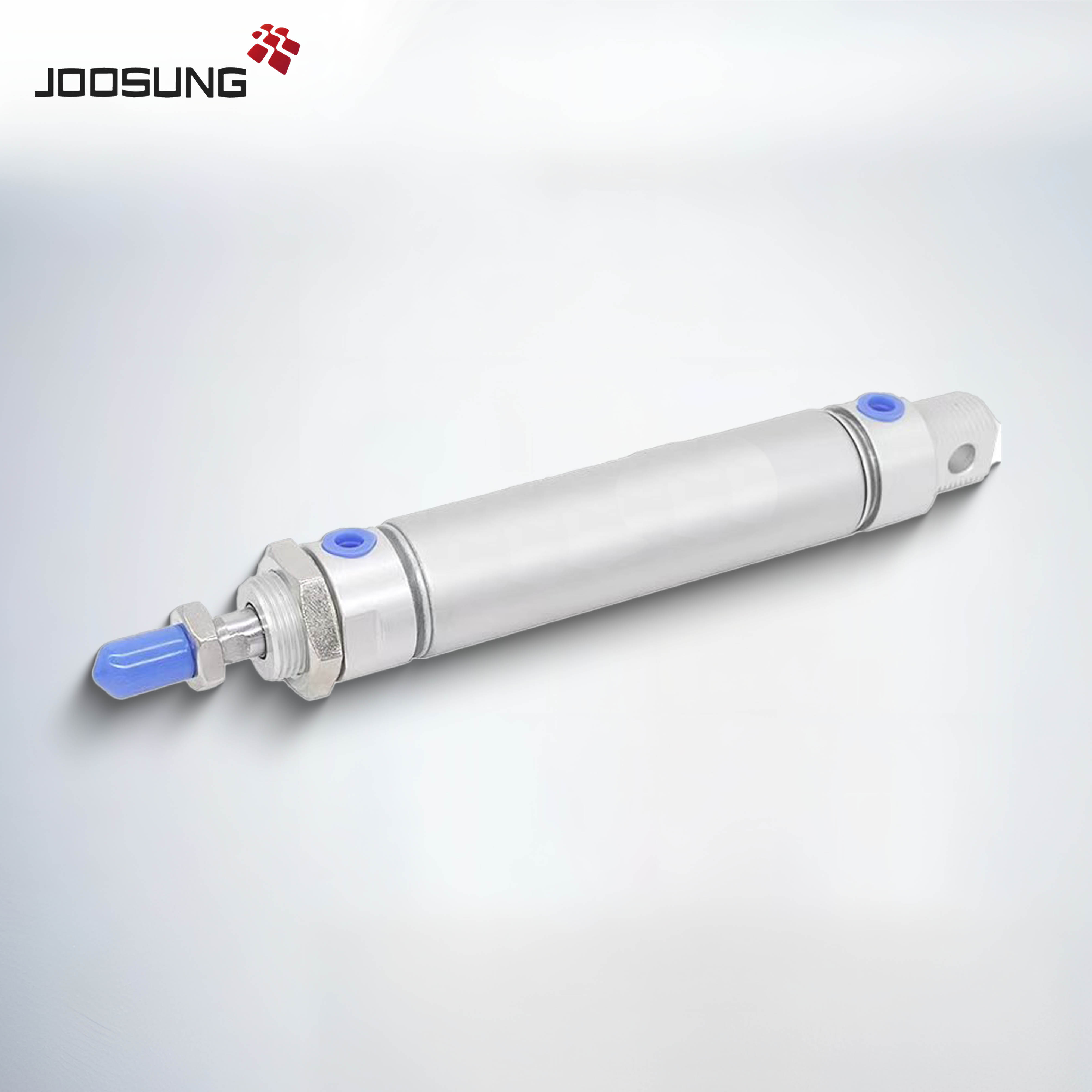

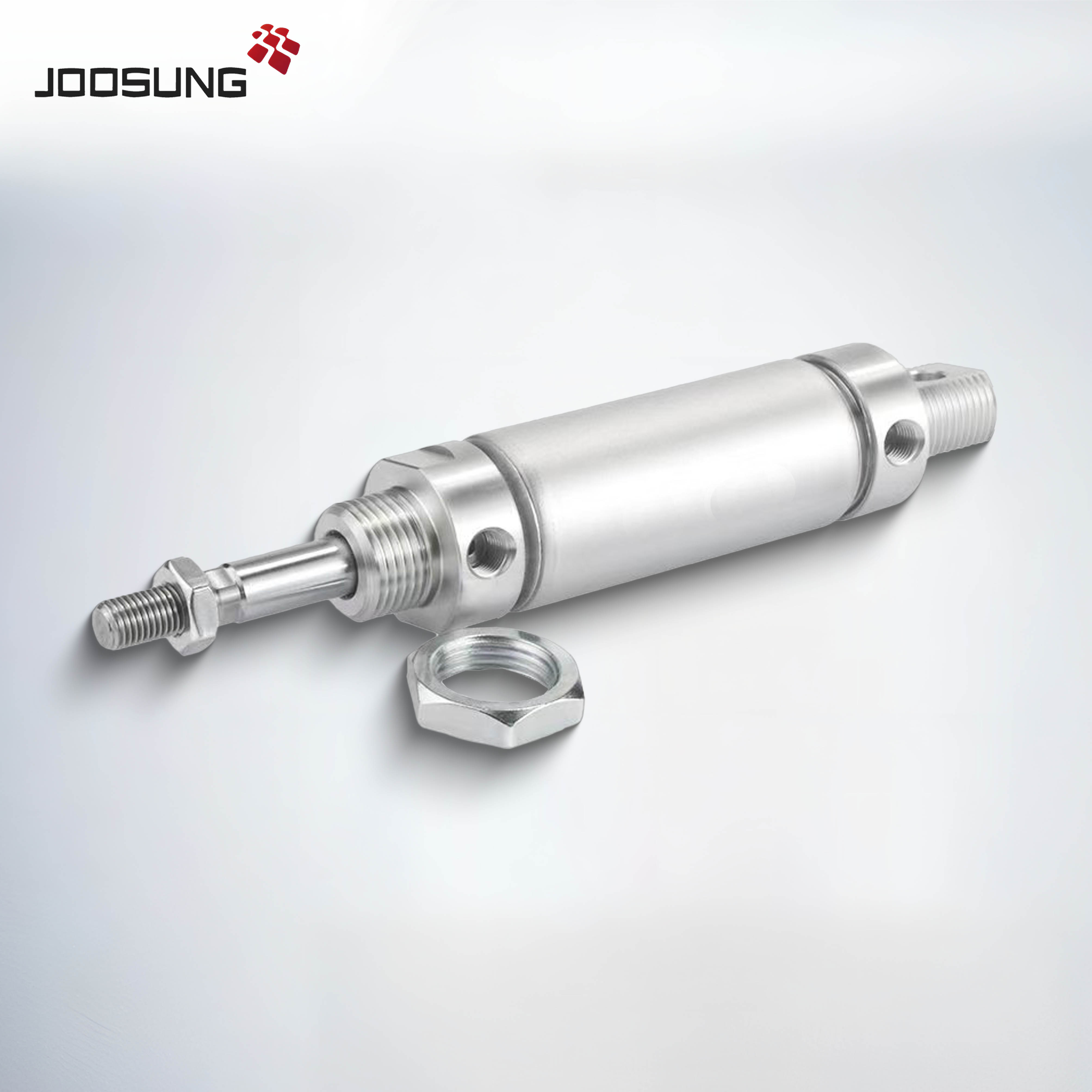

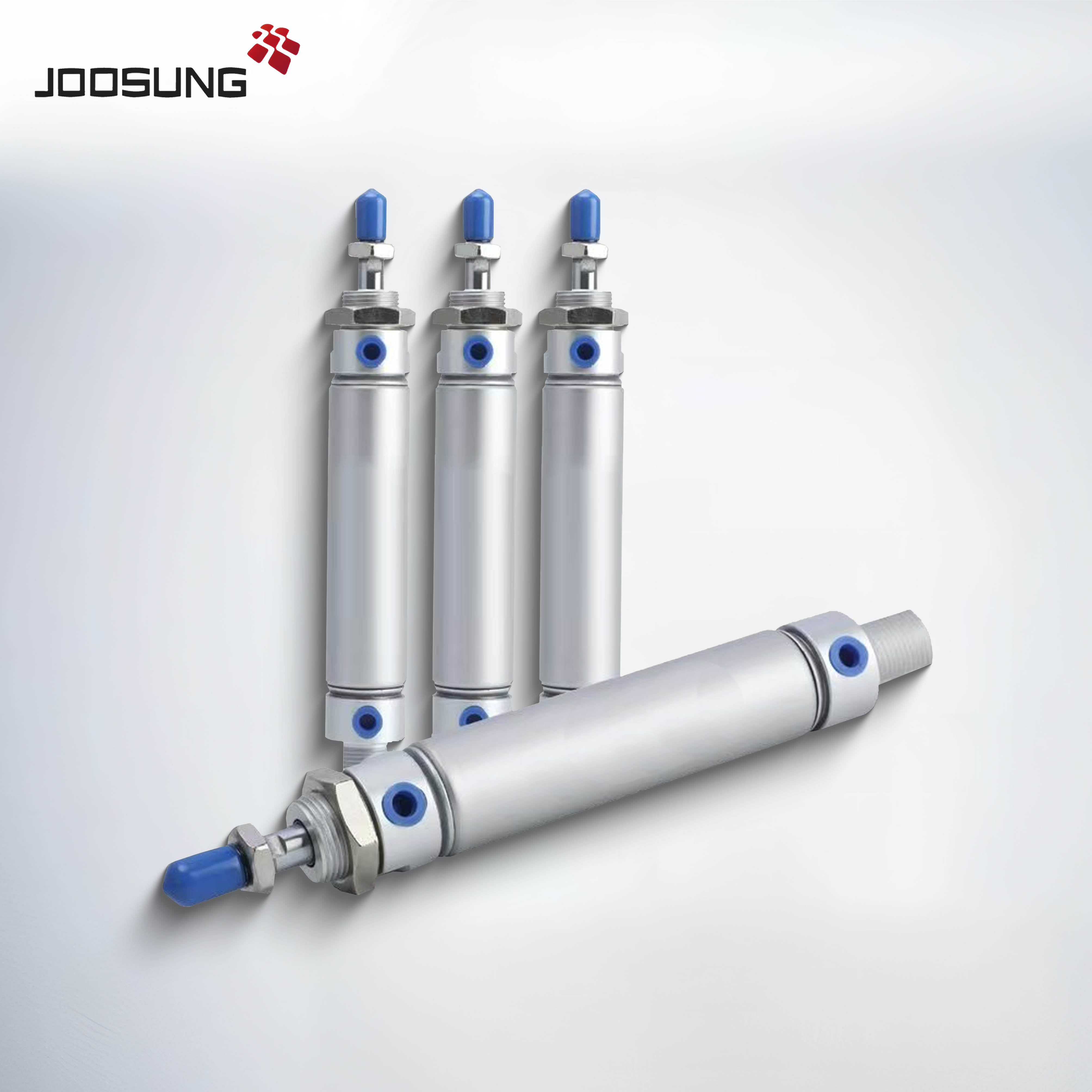

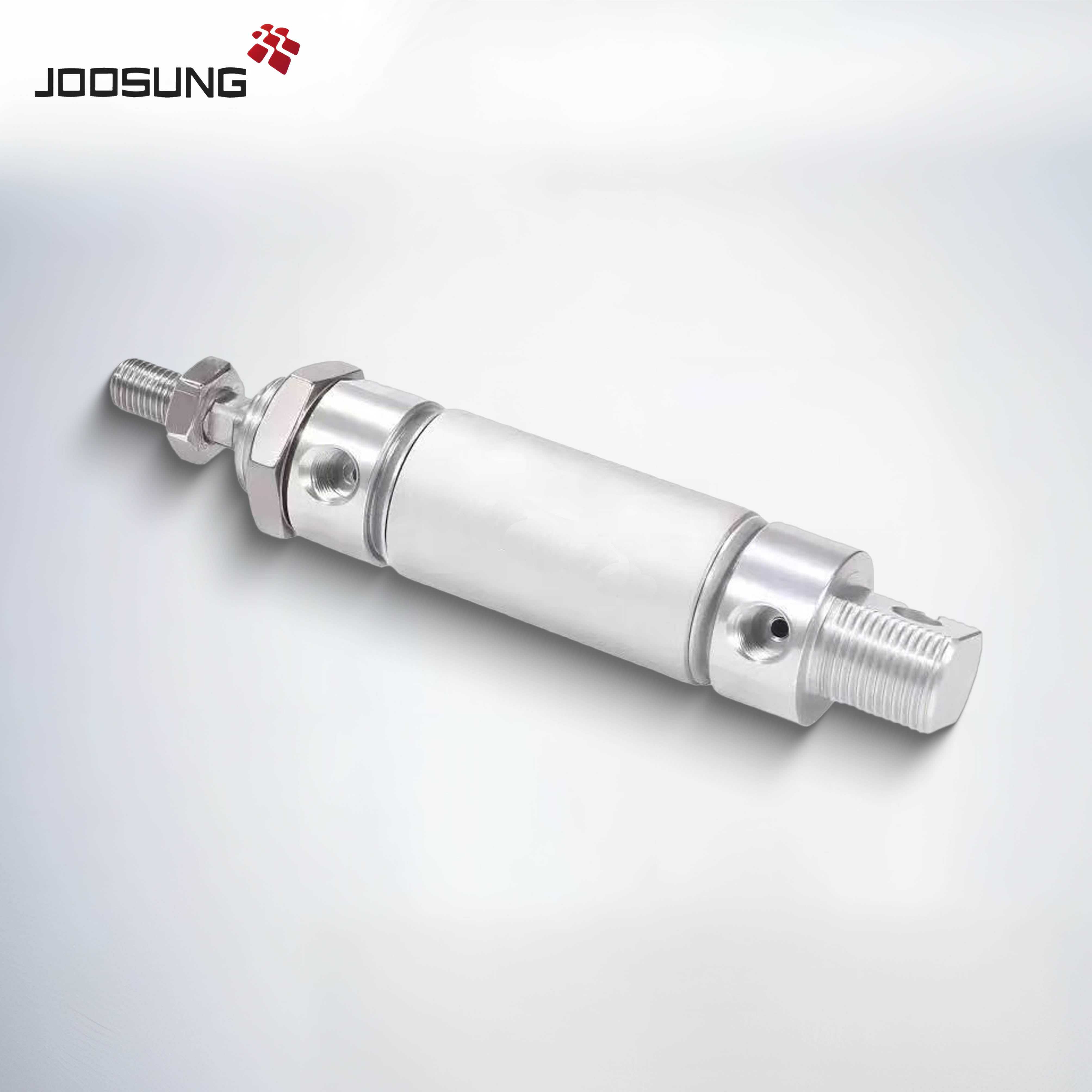

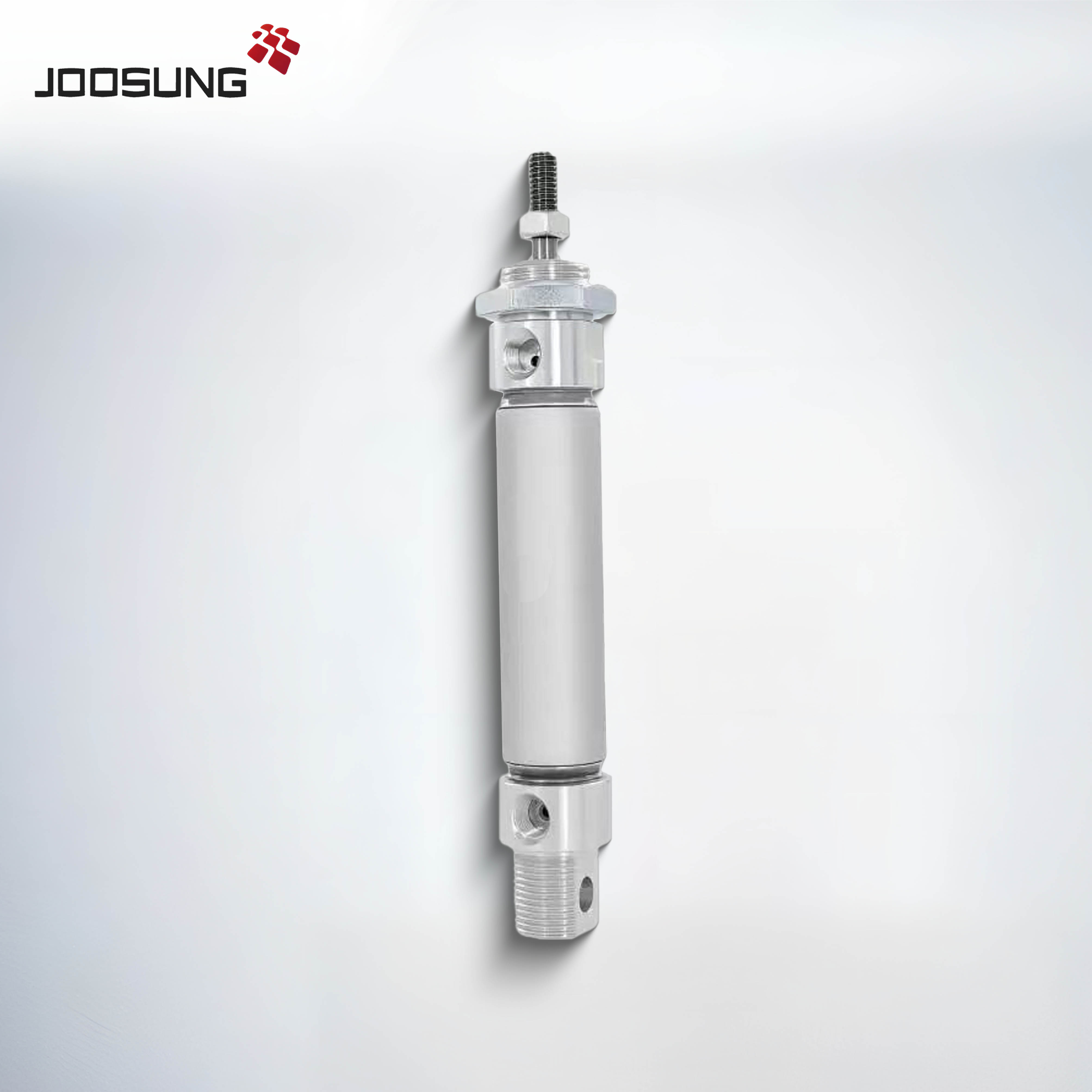

Engineered for agility, the MBL Series AluMBLnum Alloy MBLni Cylinder delivers rapid motion control, corrosion resistance, and energy efficiency for robotics, automation, and food-grade systems.
Lightweight Precision for Fast Cycling
The MBL Series AluMBLnum Alloy MBLni Cylinder reduces system weight by 40% (vs. steel), achieving 200% faster cycle speeds for robotics and pick-and-place automation.
Food-Safe & Corrosion-Resistant
Anodized aluMBLnum construction makes the MBL Series AluMBLnum Alloy MBLni Cylinder ideal for washdown environments, pharma, and food processing (FDA-compliant, ISO 21287-certified).
Ultra-Low Friction Design
Precision-machined bore (8–25mm) and PTFE-coated seals in the MBL Series AluMBLnum Alloy MBLni Cylinder cut energy loss by 35%, even at 1.2 MPa operating pressure.
Plug-and-Play Integration
Pre-drilled mounting slots and swivel clevis options allow the MBL Series AluMBLnum Alloy MBLni Cylinder to fit 90% of ISO 15552 actuator brackets without custoMBLzation.
Series Model | Available Models |
MBL20Series | MBL20-25,MBL20-50,MBL20-75,MBL20-80,MBL20-100,MBL20-125,MBL20-150,MBL20-100 MBL20-175, MBL20-200,MBL20-250,MBL20-300,MBL20-350,MBL20-100,MBL20-450,MBL20-500 |
MBL25Series | MBL25-25,MBL25-50,MBL25-75,MBL25-80,MBL25-100,MBL25-125,MBL25-150,MBL25-160 MBL25-175, MBL25-200,MBL25-250,MBL25-300,MBL25-350,MBL25-160,MBL25-450,MBL25-500 |
MBL32Series | MBL32-25,MBL32-50,MBL32-75,MBL32-80,MBL32-100,MBL32-125,MBL32-150, MBL32-160 MBL32-175,MBL32-200,MBL32-250,MBL32-300 |
MBL40Series | MBL40-25,MBL40-50,MBL40-75,MBL40-80,MBL40-100,MBL40-125,MBL40-150,MBL40-160 MBL40-175, MBL40-200,MBL40-250,MBL40-300,MBL40-350,MBL40-160,MBL40-450,MBL40-500 |
MBL50Series | MBL50-25,MBL50-50,MBL50-75,MBL50-80,MBL50-100,MBL50-125,MBL50-150,MBL50-160 MBL50-175, MBL50-200,MBL50-250,MBL50-300,MBL50-350,MBL50-160,MBL50-450,MBL50-500 |
