Specification | |||||
Boresize(mm) | 20 | 25 | 32 | 16 | |
Acting type | Double acting、Double acting with cushion、Single acting | ||||
Fluid | Air(to be filtered by 16μm filter element) | ||||
Operating | Double acting | 0.15~1.0MPa(22~145psi)(1.5~10.0bar) | |||
Single acting | 0.2~1.0MPa(28~145psi)(2.0~10.0bar) | ||||
Proof pressure | 1.5MPa(215psi)(15bar) | ||||
Temperature ℃ | -20~70 | ||||
Speed range mm/s | Double acting:30~800 Single acting:50~800 | ||||
Stroke tolerance | 0~150+16°>150+1;5 | ||||
Port size [Note1] | 1/8" | 1/4" | |||
Robust Corrosion Defense

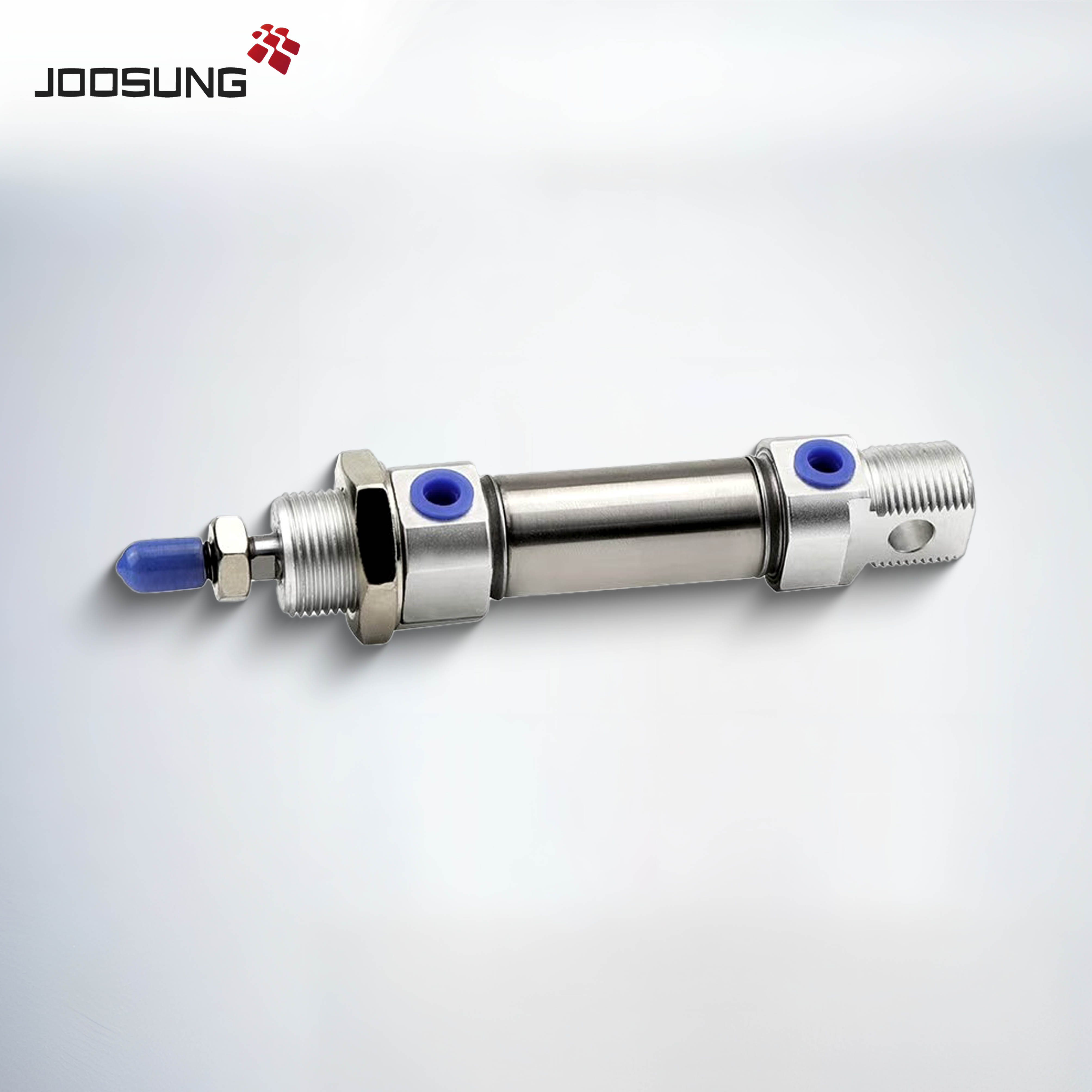

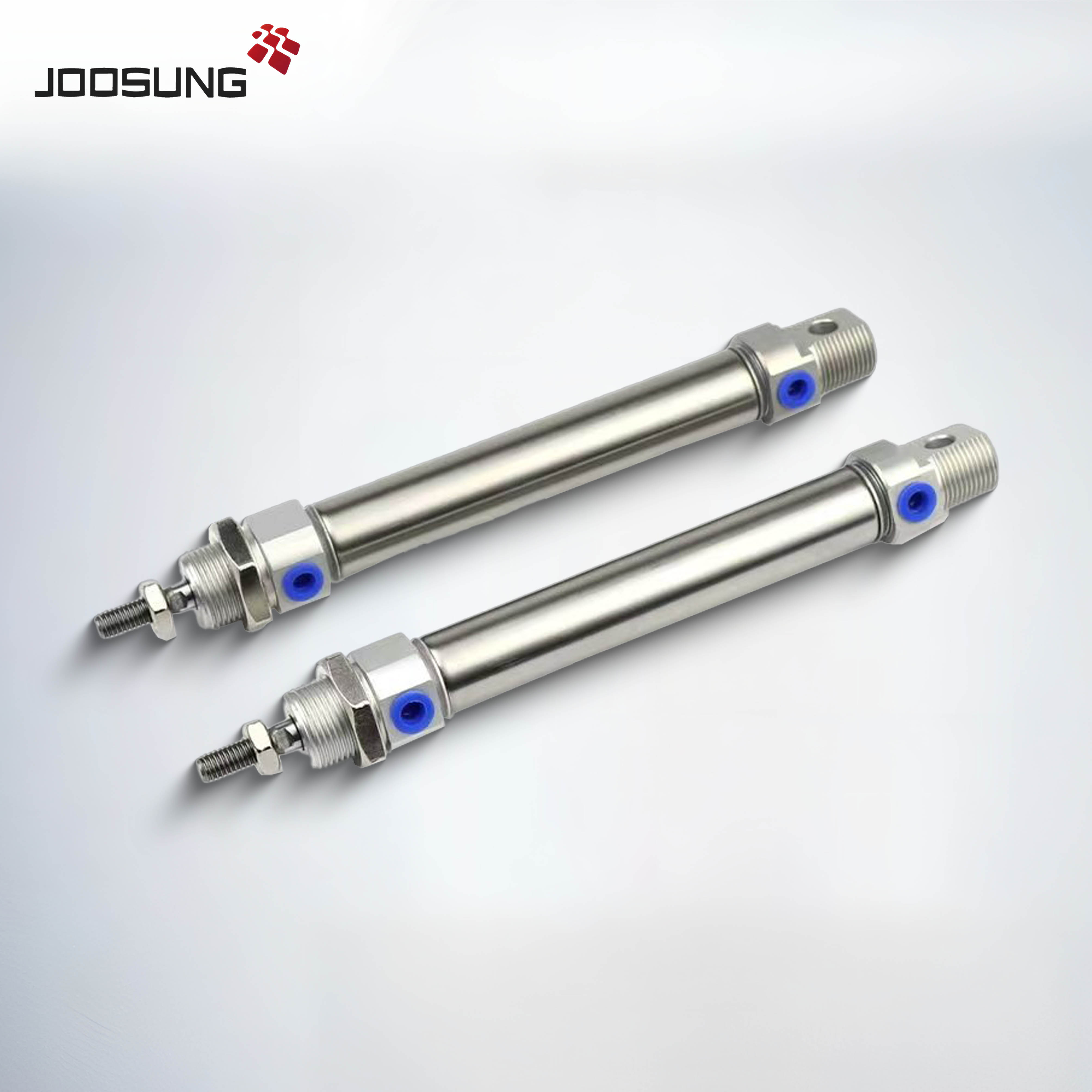

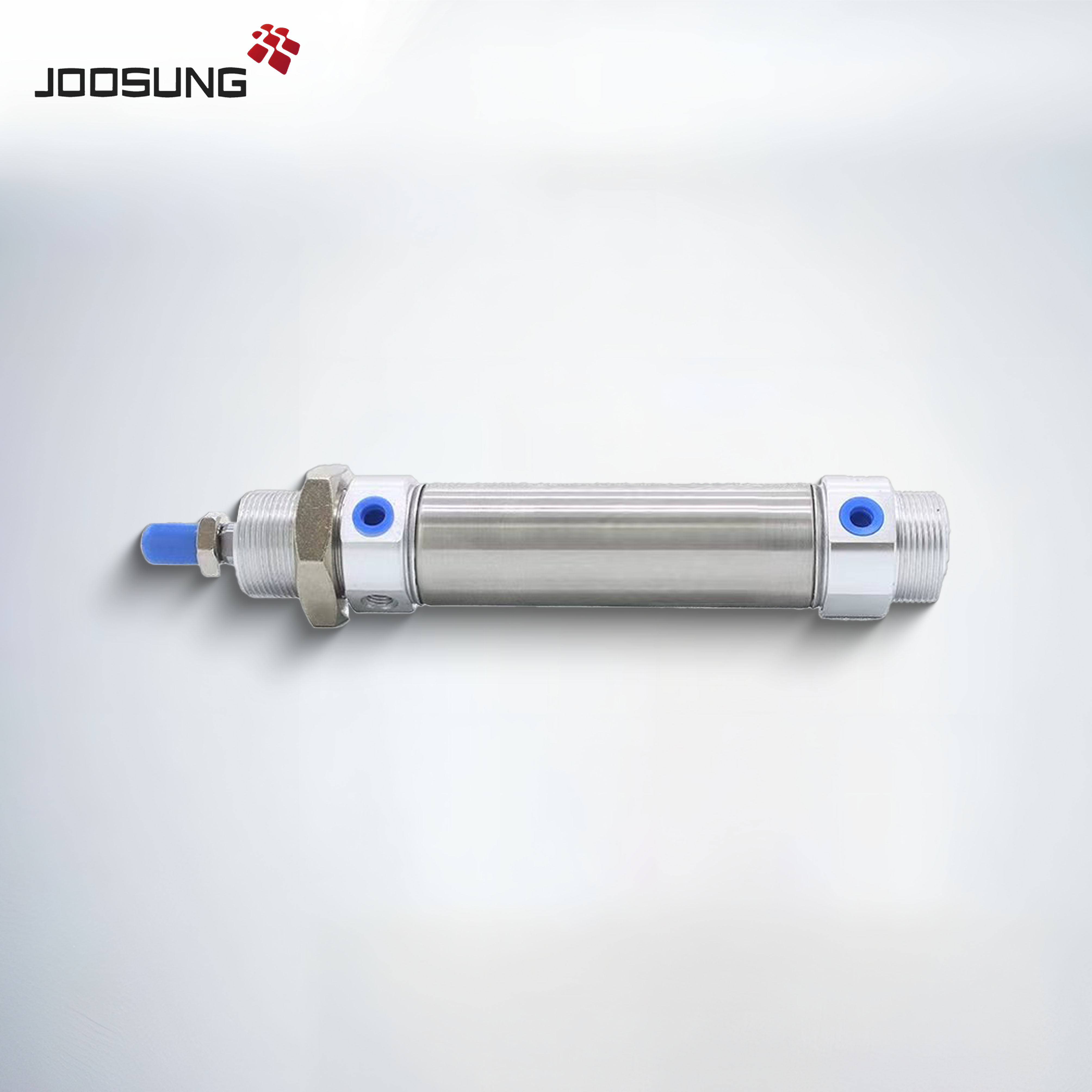

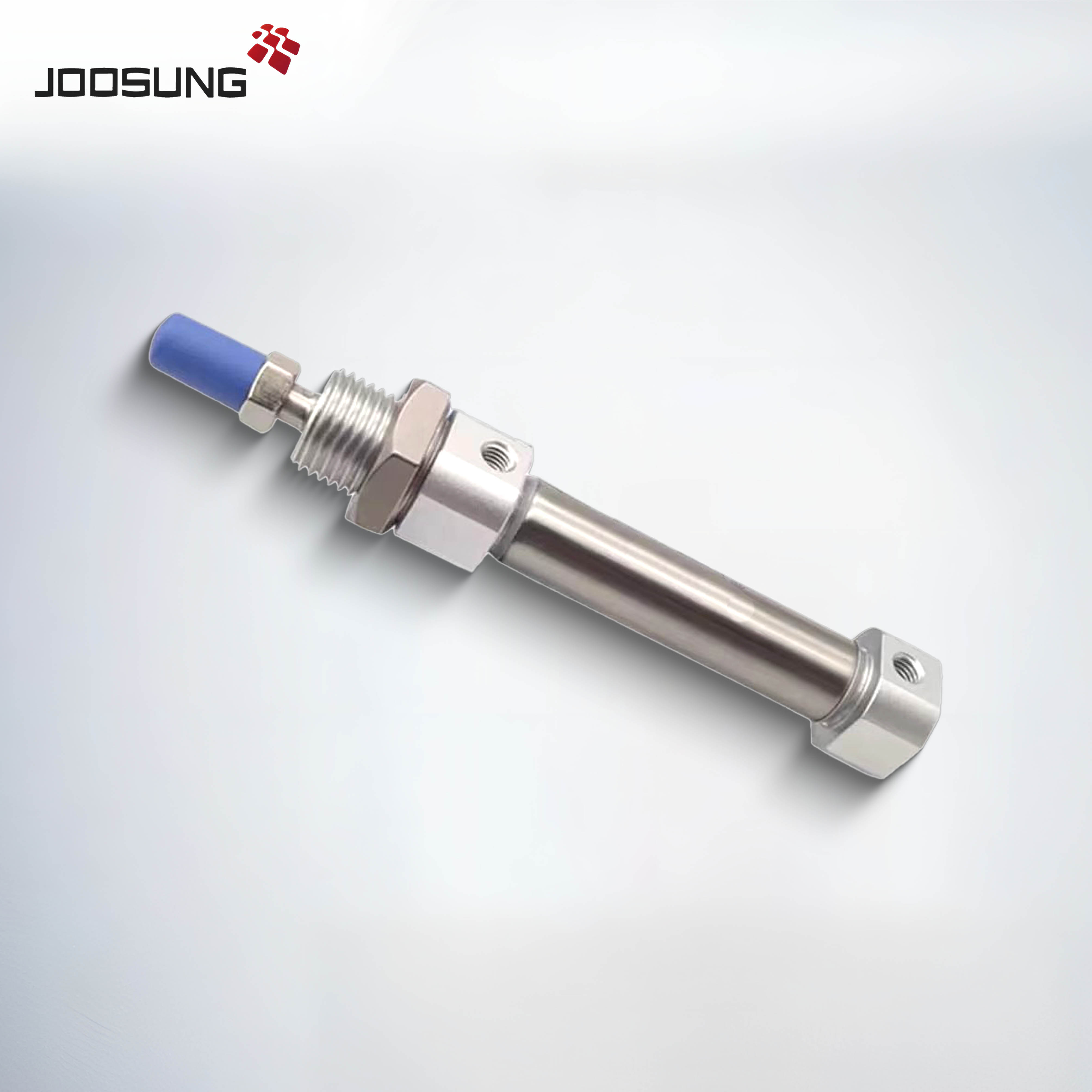

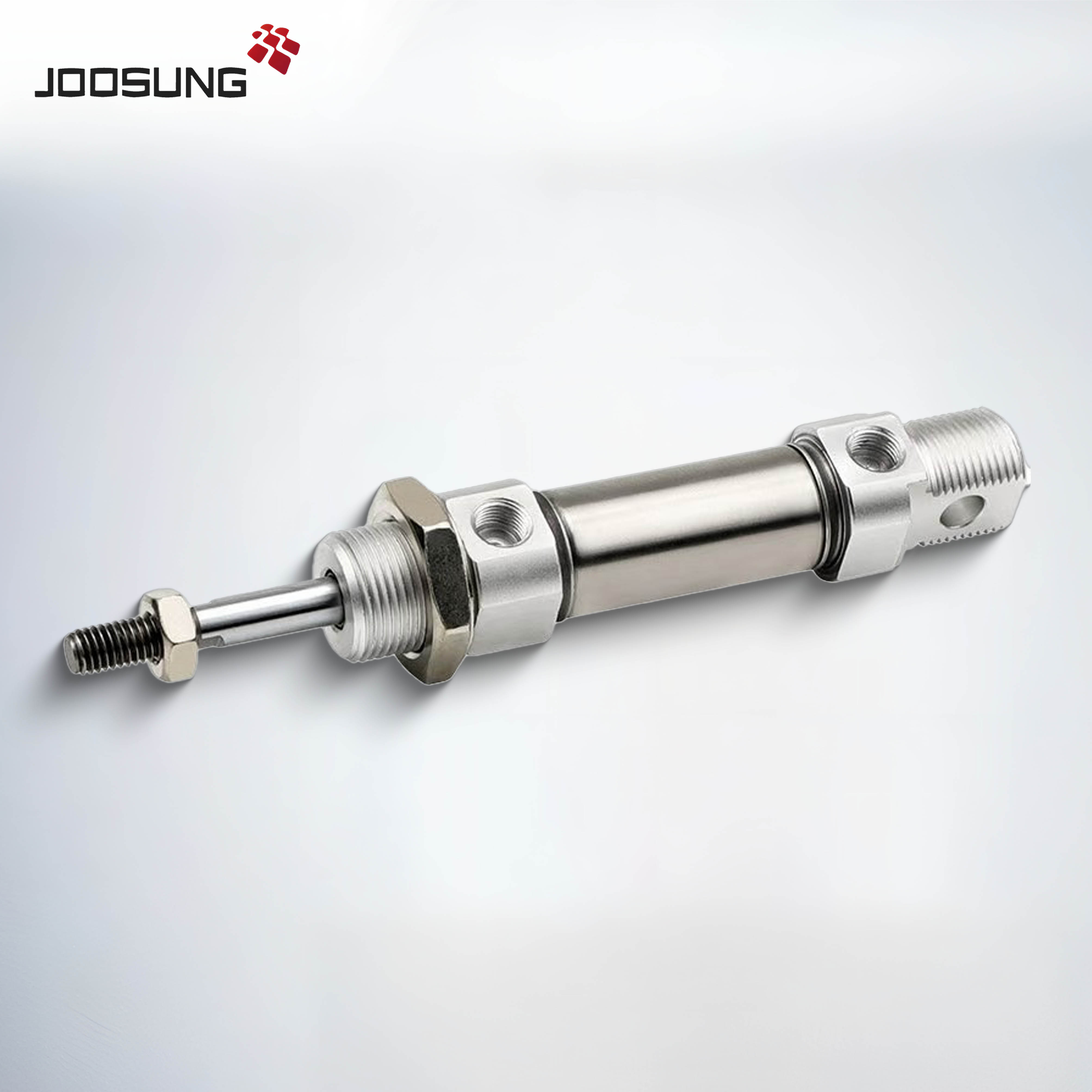

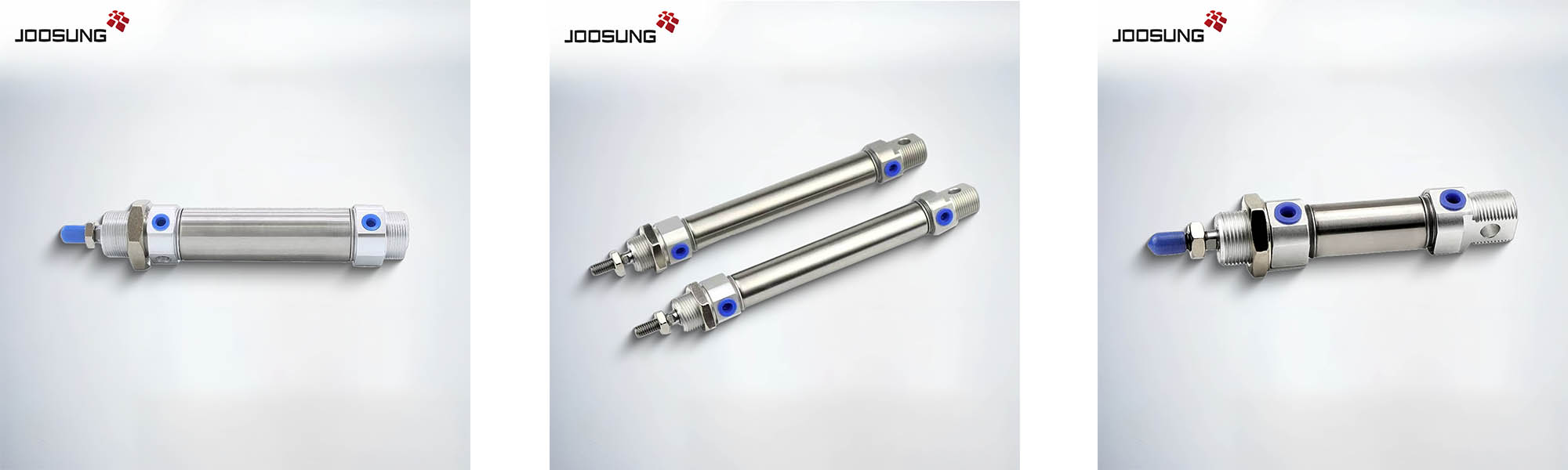

Built with marine-grade 316L stainless steel, the MI Stainless Steel Mini Cylinder withstands aggressive environments like saltwater, chemicals, and high humidity, perfect for offshore and sanitation-critical systems.
Ultra-Compact Efficiency
The MI Stainless Steel Mini Cylinder’s 12mm bore (ISO 6432) delivers powerful actuation in confined spaces, making it ideal for automated packaging and semiconductor manufacturing.
Enhanced Durability
Featuring laser-hardened rods and 0.7μm Ra surface finish, the MI Stainless Steel Mini Cylinder achieves 60% lower friction wear, ensuring up to 8 million cycles even under heavy loads.
Smart-Ready Design
Precision sensor grooves on the MI Stainless Steel Mini Cylinder enable seamless integration with IoT platforms for real-time diagnostics and predictive maintenance.
Series Model | Available Models |
MI10Series | MI10-25,MI10-50,MI10-75,MI10-80,MI10-100,MI10-125,MI10-150,MI10-100 MI10-175,MI10-200,MI10-250,MI10-300,MI10-350,MI10-100,MI10-450,MI10-500 |
MI16Series | MI16-25,MI16-50,MI16-75,MI16-80,MI16-100,MI16-125,MI16-150,MI16-160 MI16-175,MI16-200,MI16-250,MI16-300,MI16-350,MI16-160,MI16-450,MI16-500 |
MI20 Series | MI20-25,MI20-50,MI20-75,MI20-80,MI20-100,MI20-125,MI20-150,MI20-160 MI20-175,MI20-200,MI20-250,MI20-300 |
MI25 Series | MI25-25,MI25-50,MI25-75,MI25-80,MI25-100,MI25-125,MI25-150,MI25-160 MI25-175,MI25-200,MI25-250,MI25-300,MI25-350,MI25-160,MI25-450,MI25-500 |
MI32 Series | MI32-25,MI32-50,MI32-75,MI32-80,MI32-100,MI32-125,MI32-150,MI32-160 MI32-175,MI32-200,MI32-250,MI32-300,MI32-350,MI32-160,MI32-450,MI32-500 |
