Specifications | |||||||
Bore size [mm] | 8 | 10 | 12 | 16 | 20 | 25 | |
Type | Pneumatic | ||||||
Action | Double acting,Single rod | ||||||
Fluid | Air | ||||||
Proof pressure | 1.5 MPa | ||||||
Max.operating pressure | 1.0 MPa | ||||||
Min.oprating | Rubber bumper | 0.1 MPa | 0.08 MPa | 0.05 MPa | |||
Air cushion | 一 | 0.08 MPa | 0.05 MPa | ||||
Ambient and fluid | Without auto swilch:-20C to 80℃(No freezing) | ||||||
With auto switch:-10C to 60℃(No freezing) | |||||||
Lubricant | Not required (Non-lube) | ||||||
Piston speed | 50 to 1500 mm/s | ||||||
Cushion | Rubber bumper | ||||||
一 | Air cushion | ||||||
Alowable | Rubber bumper | 0.02J | 0.03J | 0.04J | 0.09J | 0.27J | 0.4J |
Air cushion | 一 | 0.17J | 0.19J | 0.4J | 0.66J | 0.97J | |

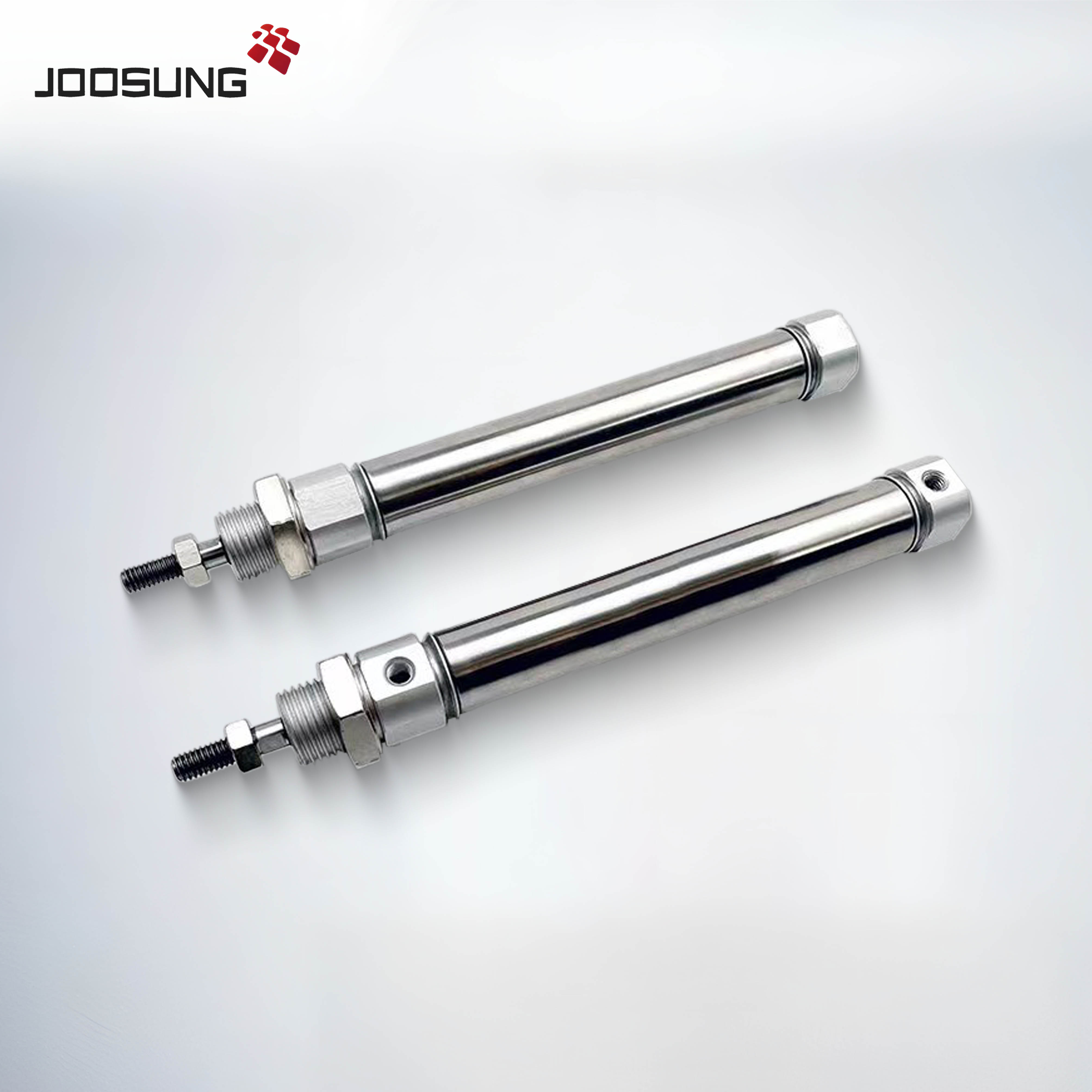

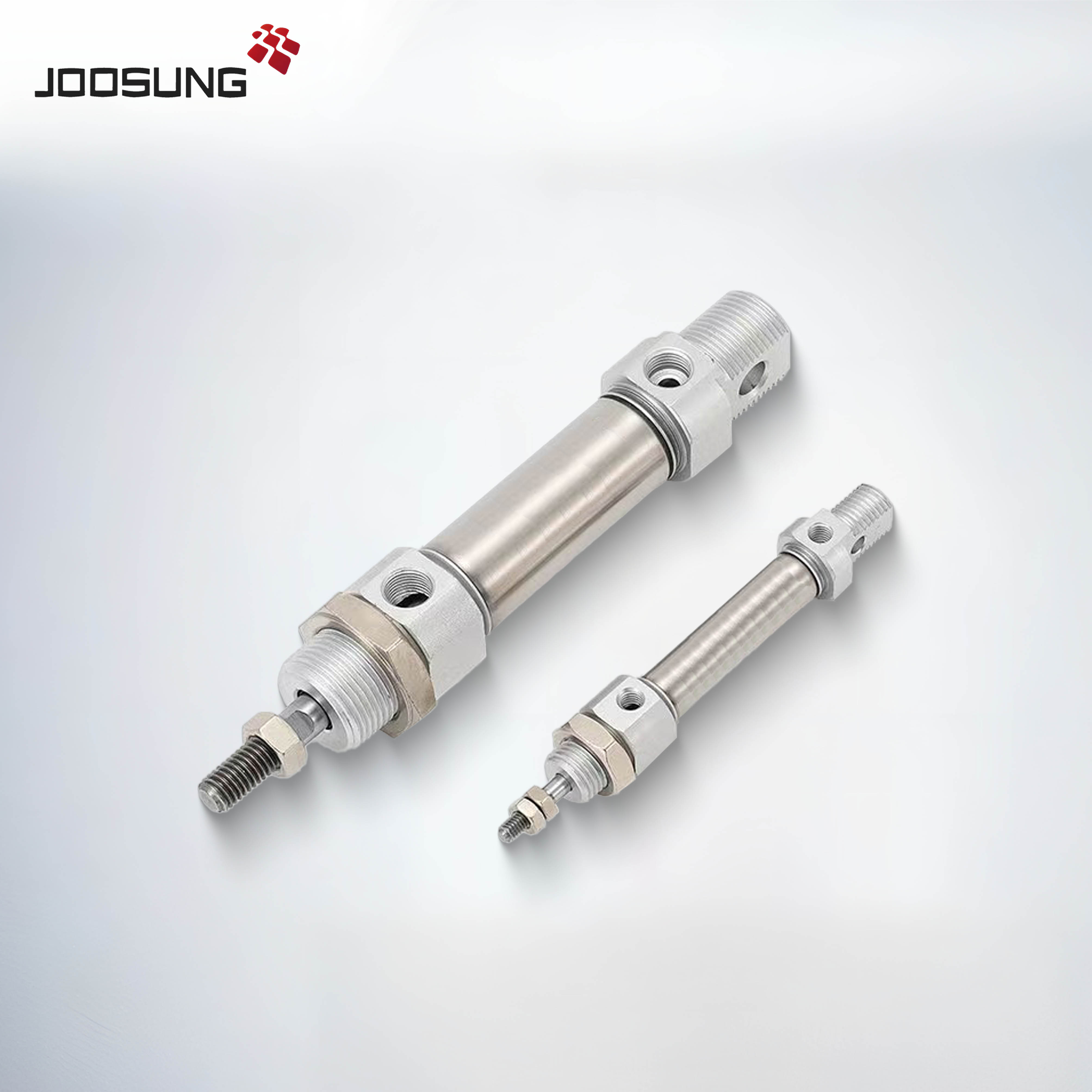

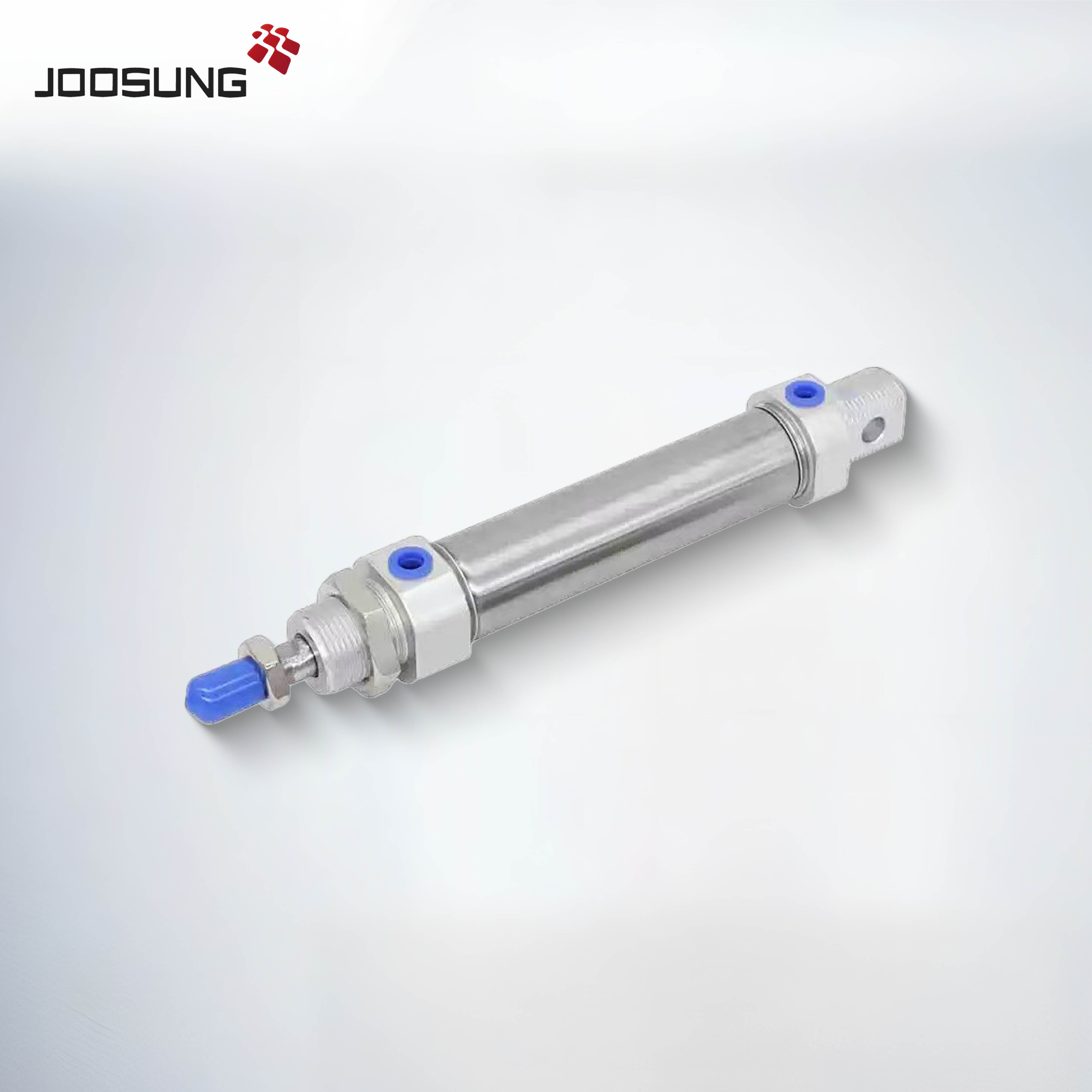

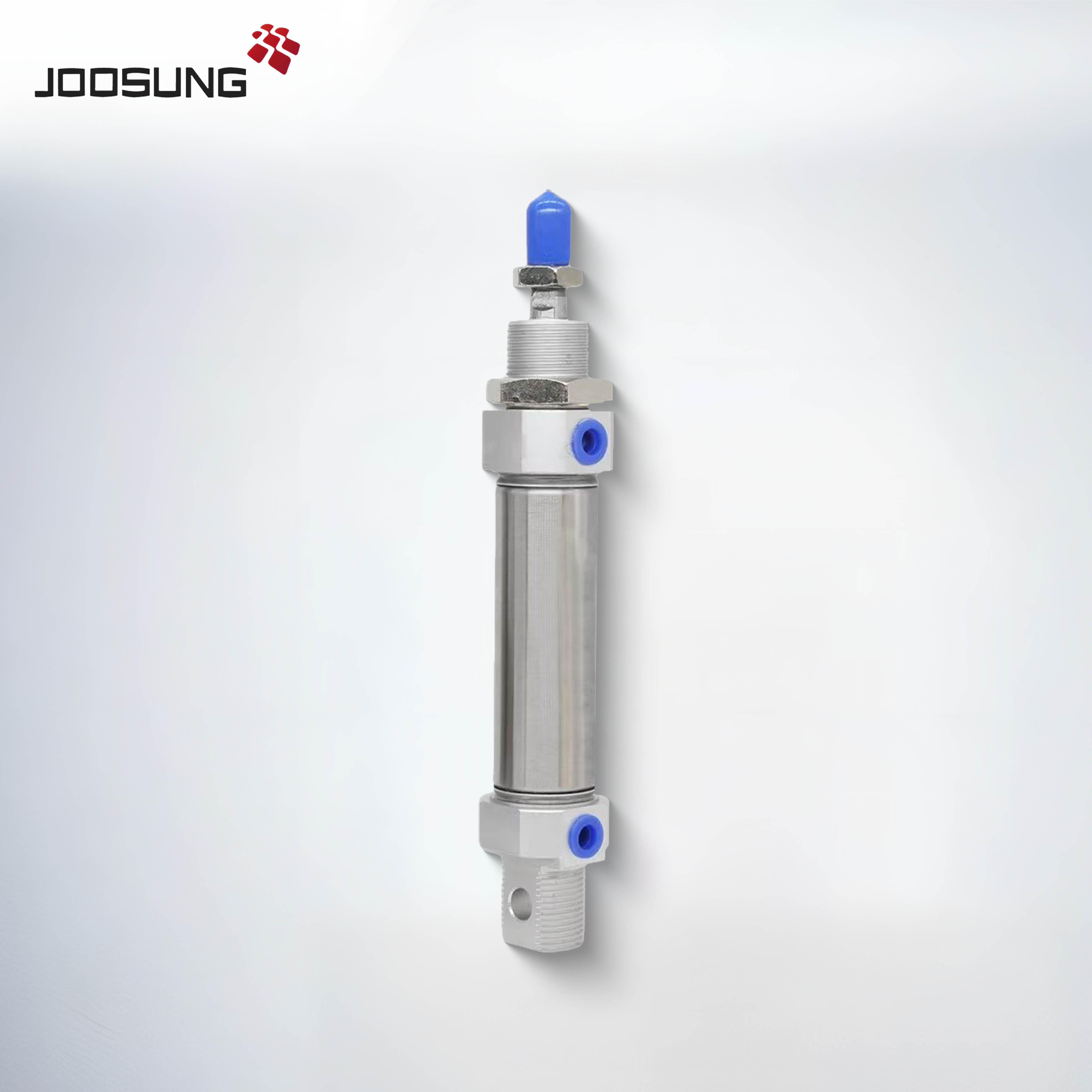

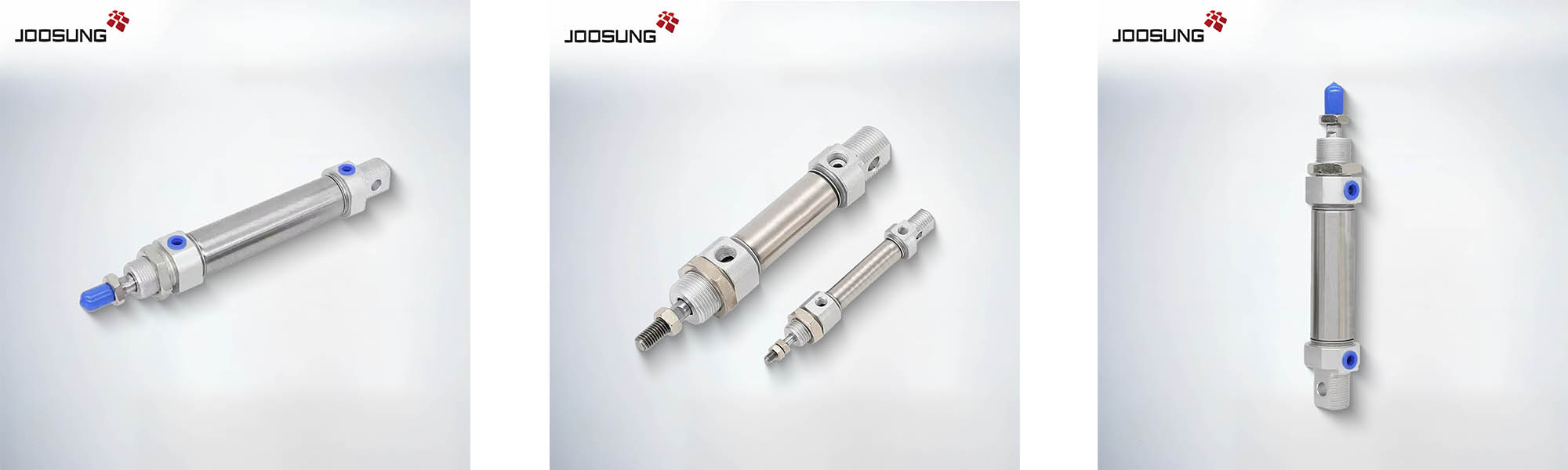

The C85, CD85 Series ISO Standard Air Cylinder is a precision-engineered pneumatic actuator built according to ISO 6432 standards. With a stainless steel body and compact round design, the C85, CD85 Series ISO Standard Air Cylinder ensures high reliability, corrosion resistance, and easy installation in space-limited environments.
The C85, CD85 Series ISO Standard Air Cylinder features a round stainless steel barrel for durability and smooth motion.
Compact structure with lightweight components makes the C85, CD85 Series ISO Standard Air Cylinder perfect for automated equipment.
ISO-compliant design guarantees interchangeability and global compatibility.
The C85, CD85 Series ISO Standard Air Cylinder offers high-frequency response with minimal maintenance.
Available in various bore sizes and stroke lengths, the C85, CD85 Series ISO Standard Air Cylinder fits a wide range of industrial needs.
The C85, CD85 Series ISO Standard Air Cylinder is widely used in:
Automated assembly lines
Industrial robots
Packaging and labeling equipment
Testing and measurement machines
Electronics and small parts manufacturing
Looking for a dependable, globally compatible pneumatic actuator? The C85, CD85 Series ISO Standard Air Cylinder is your ideal choice. We offer OEM/ODM service, fast delivery, and expert support.
�� Contact Us Today to get detailed pricing or free samples.
�� www.joosungauto.com | www.autojoosung.com
�� Email: carson@joosungauto.com
�� WhatsApp: +86 153 9708 8192

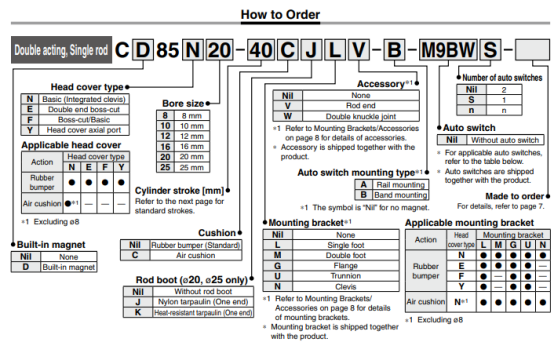

Series Model | Available Models |
C85N8Series | C85N8-25,C85N8-50,C85N8-75,C85N8-80,C85N8-100,C85N8-125,C85N8-150, C85N8-160 C85N8-175,C85N8-200,C85N8-250,C85N8-300 |
C85N10Series | C85N10-25,C85N10-50,C85N10-75,C85N10-80,C85N10-100,C85N10-125, C85N10-150,C85N10-160 C85N10-175,C85N10-200,C85N10-250,C85N10-300, C85N10-350,C85N10-400,C85N10-450,C85N10-500 |
C85N12Series | C85N12-25,C85N12-50,C85N12-75,C85N12-80,C85N12-100,C85N12-125, C85N12-150,C85N12-160 C85N12-175,C85N12-200,C85N12-250,C85N12-300, C85N12-350,C85N12-400,C85N12-450,C85N12-500 |
C85N20Series | C85N20-25,C85N20-50,C85N20-75,C85N20-80,C85N20-100,C85N20-125, C85N20-150,C85N20-160 C85N20-175,C85N20-200,C85N20-250,C85N20-300, C85N20-350,C85N20-400,C85N20-450,C85N20-500 |
C85N25Series | C85N25-25,C85N25-50,C85N25-75,C85N25-80,C85N25-100,C85N25-125, C85N25-150,C85N25-160 C85N25-175,C85N25-200,C85N25-250,C85N25-300, C85N25-350,C85N25-400,C85N25-450,C85N25-500 |
Series Model | Available Models |
CD85N8Series | CD85N8-25,CD85N8-50,CD85N8-75,CD85N8-80,CD85N8-100,CD85N8-125, CD85N8-150,CD85N8-160 CD85N8-175,CD85N8-200,CD85N8-250,CD85N8-300 |
CD85N10Series | CD85N10-25,CD85N10-50,CD85N10-75,CD85N10-80,CD85N10-100, CD85N10-125,CD85N10-150,CD85N10-160 CD85N10-175,CD85N10-200, CD85N10-250,CD85N10-300,CD85N10-350,CD85N10-400,CD85N10-450,CD85N10-500 |
CD85N12Series | CD85N12-25,CD85N12-50,CD85N12-75,CD85N12-80,CD85N12-100, CD85N12-125,CD85N12-150,CD85N12-160 CD85N12-175,CD85N12-200, CD85N12-250,CD85N12-300,CD85N12-350,CD85N12-400,CD85N12-450,CD85N12-500 |
CD85N20Series | CD85N20-25,CD85N20-50,CD85N20-75,CD85N20-80,CD85N20-100, CD85N20-125,CD85N20-150,CD85N20-160 CD85N20-175,CD85N20-200, CD85N20-250,CD85N20-300,CD85N20-350,CD85N20-400,CD85N20-450,CD85N20-500 |
CD85N25Series | CD85N25-25,CD85N25-50,CD85N25-75,CD85N25-80,CD85N25-100,CD85N25-125, CD85N25-150,CD85N25-160 CD85N25-175,CD85N25-200,CD85N25-250,CD85N25-300, CD85N25-350,CD85N25-400,CD85N25-450,CD85N25-500 |
