What is the role of a 5/2 double solenoid pneumatic valve

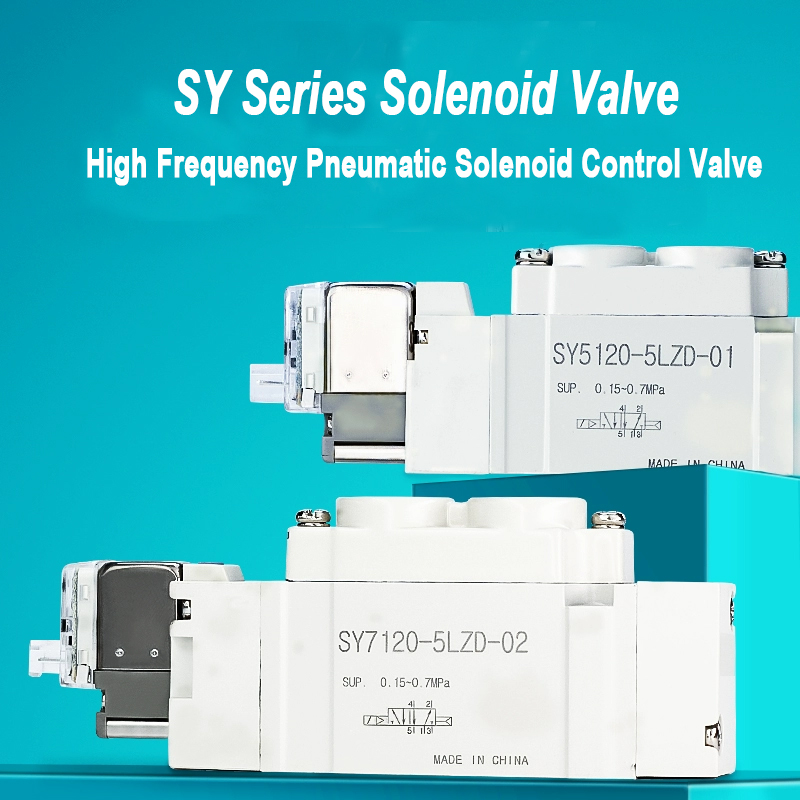

A 5/2 way double pilot pneumatic valve is a directional control valve commonly used in pneumatic systems to control the movement of double-acting actuators (e.g., cylinders). Its double pilot actuation and design allow it to provide consistent and reliable operation without requiring continuous power input.

Key Features and Functionality

1. 5 Ports:

   • Port P: For compressed air supply.
   • Ports A and B: For connecting to the actuator (e.g., cylinder).
   • Ports R1 and R2: Exhaust ports for venting air from the actuator.

2. 2 Positions:

   • Position 1: Supplies air to port A and exhausts air from port B (extending the cylinder).
   • Position 2: Supplies air to port B and exhausts air from port A (retracting the cylinder).

3. Double Pilot Actuation:

   • The valve is controlled by two pilot signals (pneumatic inputs), typically at either end of the valve body.
   • Pilot 1: Activates position 1 (e.g., extend).
   • Pilot 2: Activates position 2 (e.g., retract).
   • Once a pilot signal is given, the valve shifts and remains in that position until the opposite pilot signal is applied.

4. Memory Functionality:

   • The double pilot valve is latching; it remains in its last position even if the pilot signal is removed, as long as there is no opposing signal. This eliminates the need for continuous pilot pressure.

Advantages

• Energy Efficiency: No need for continuous air supply to maintain the valve's position.
• Reliable Switching: Provides consistent and dependable directional control.
• Simplified Circuit Design: The latching mechanism reduces the need for additional components to hold positions.

Applications

• Double-acting cylinders: Control extension and retraction of cylinders in industrial automation and machinery.
• Position Retention: Retains the cylinder's position in case of a power or signal loss.
• Reversible Pneumatic Systems: Used in systems requiring alternating movements between two states, such as in packaging, material handling, or robotics.

How It Works

1. When Pilot 1 is pressurized, the spool inside the valve shifts, connecting port P to port A (extending the cylinder) and port B to exhaust (R2).
2. When Pilot 2 is pressurized, the spool shifts back, connecting port P to port B (retracting the cylinder) and port A to exhaust (R1).
3. The valve retains its last position until the opposite pilot signal is applied, ensuring smooth and controlled operations.

In summary, a 5/2 way double pilot pneumatic valve is a robust and efficient component for controlling bi-directional movement in pneumatic systems, especially where latching functionality is beneficial.
