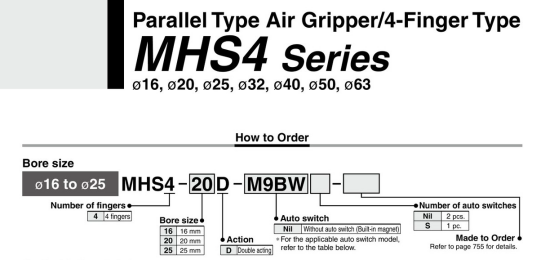

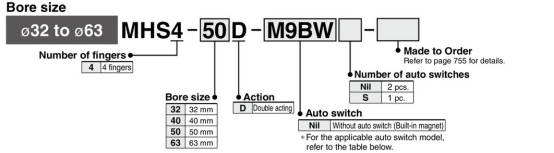

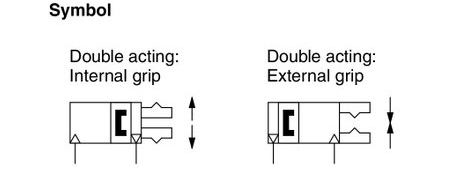

Product Specifications | ||||||||
Model | MHS4-16D | MHS4-20D | MHS4-25D | MHS4-32D | MHS4-40D | MHS4-50D | MHS4-63D | |
Bore (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | |
Working medium | Clean air | |||||||
Working pressure | 0.2 to 0.6 MPa | 0.1 to 0.6 MPa | ||||||
Working temperature | -10 to 60 ℃ | |||||||
Repeatability | ±0.01 mm | |||||||
Max. operating frequency | 120 c.p.m. | 60 c.p.m. | ||||||
Lubrication | Not required | |||||||
Action | Double acting | |||||||
Effective gripping force at 0.5 MPa | External grip | 10 N | 19 N | 31 N | 55 N | 88 N | 140 N | 251 N |
Internal grip | 12 N | 21 N | 35 N | 61 N | 97 N | 153 N | 268 N | |
Opening/Closing stroke | 4 mm | 4 mm | 6 mm | 8 mm | 8 mm | 12 mm | 16 mm | |
Balanced Grip Compact Body Precision Handling

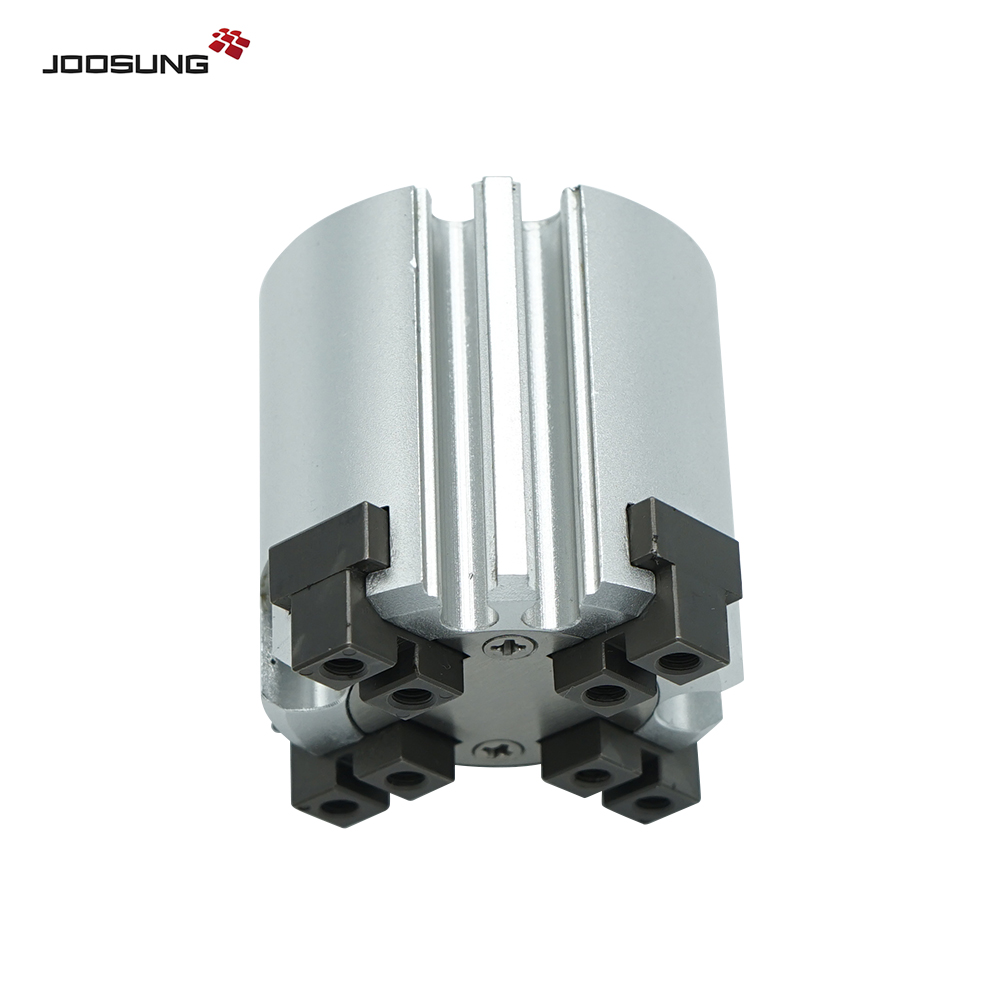

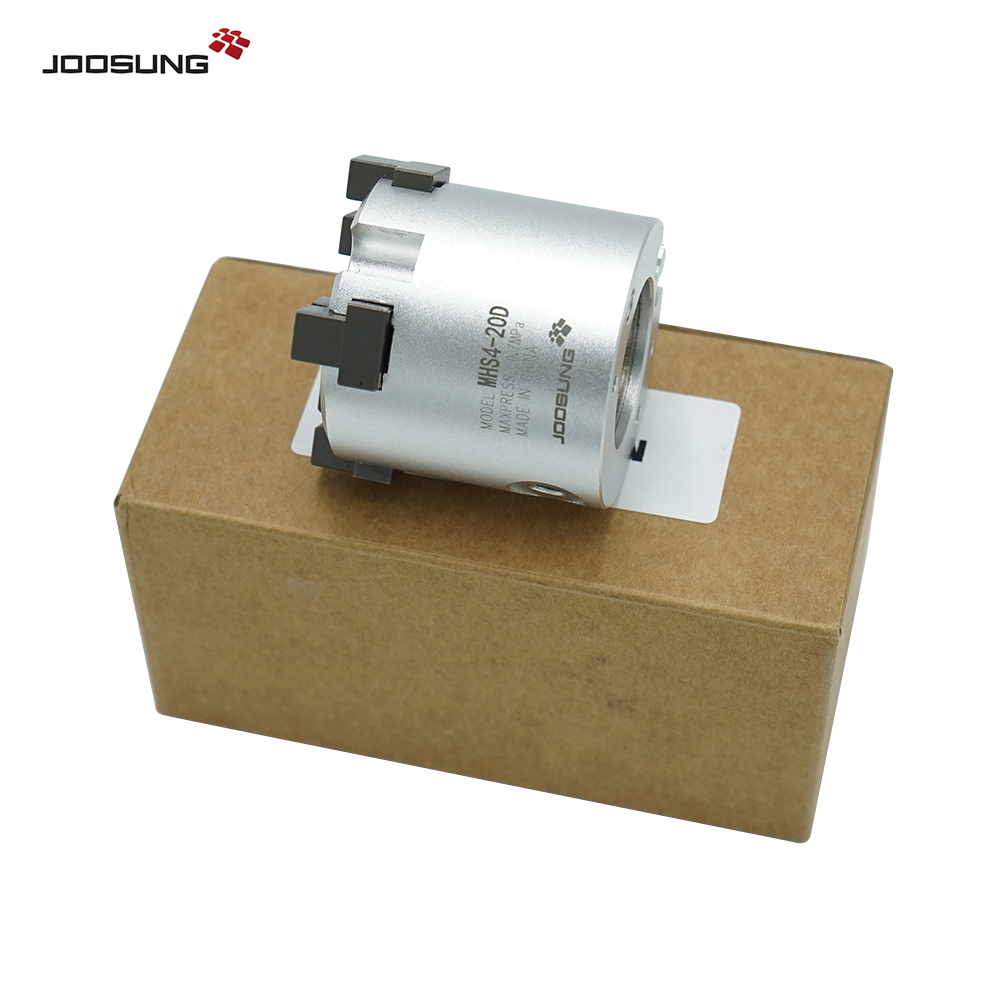

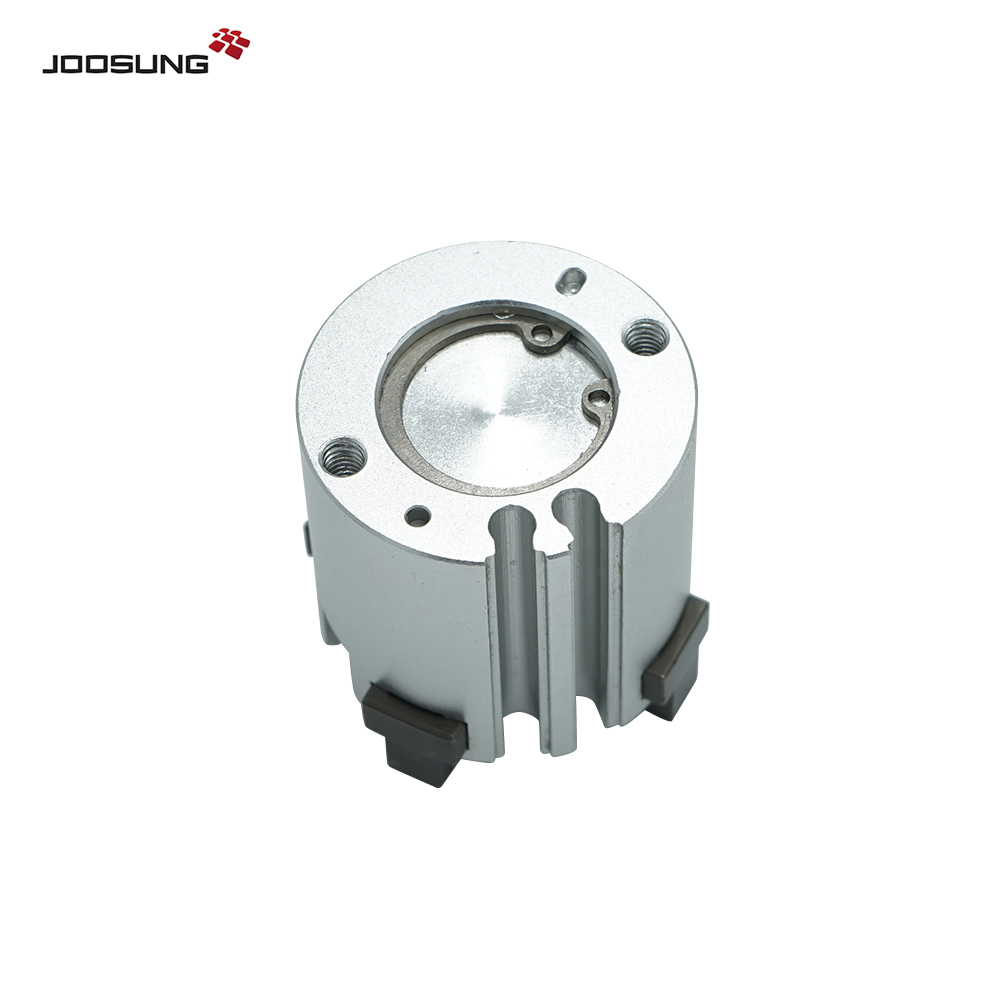

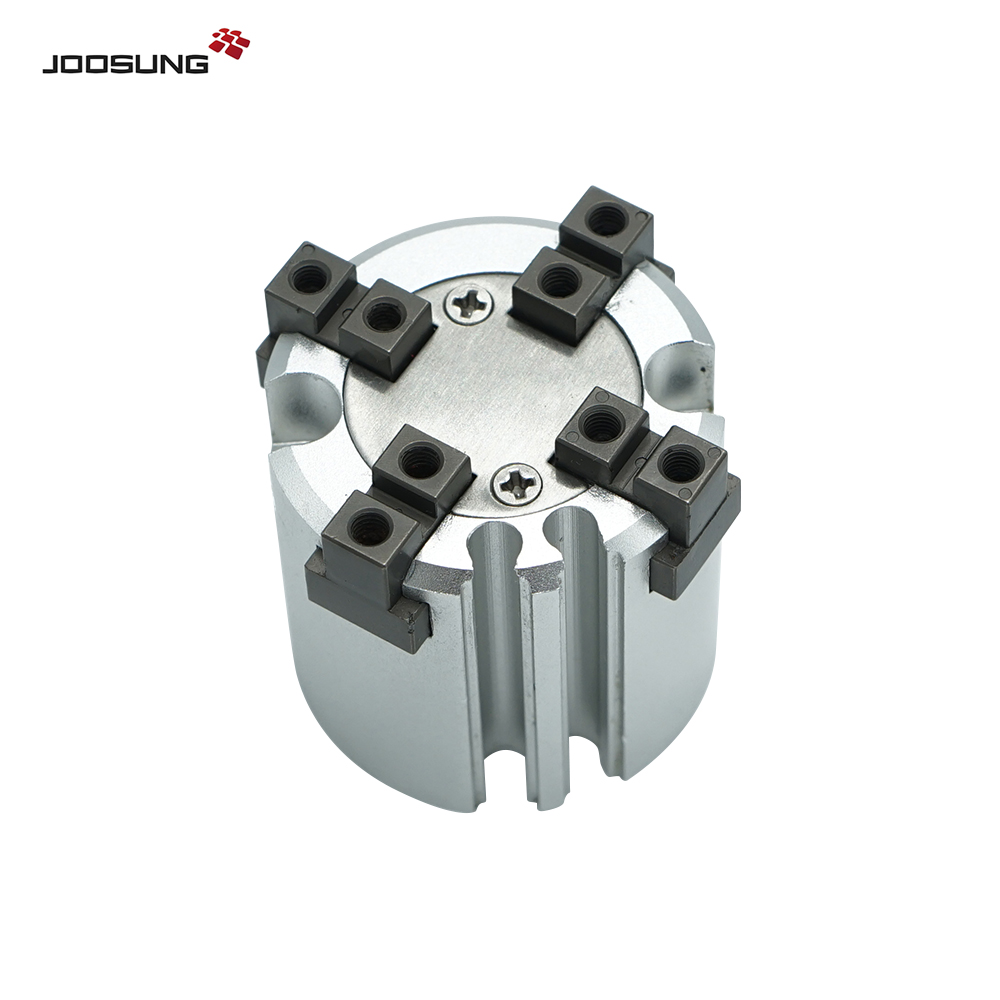

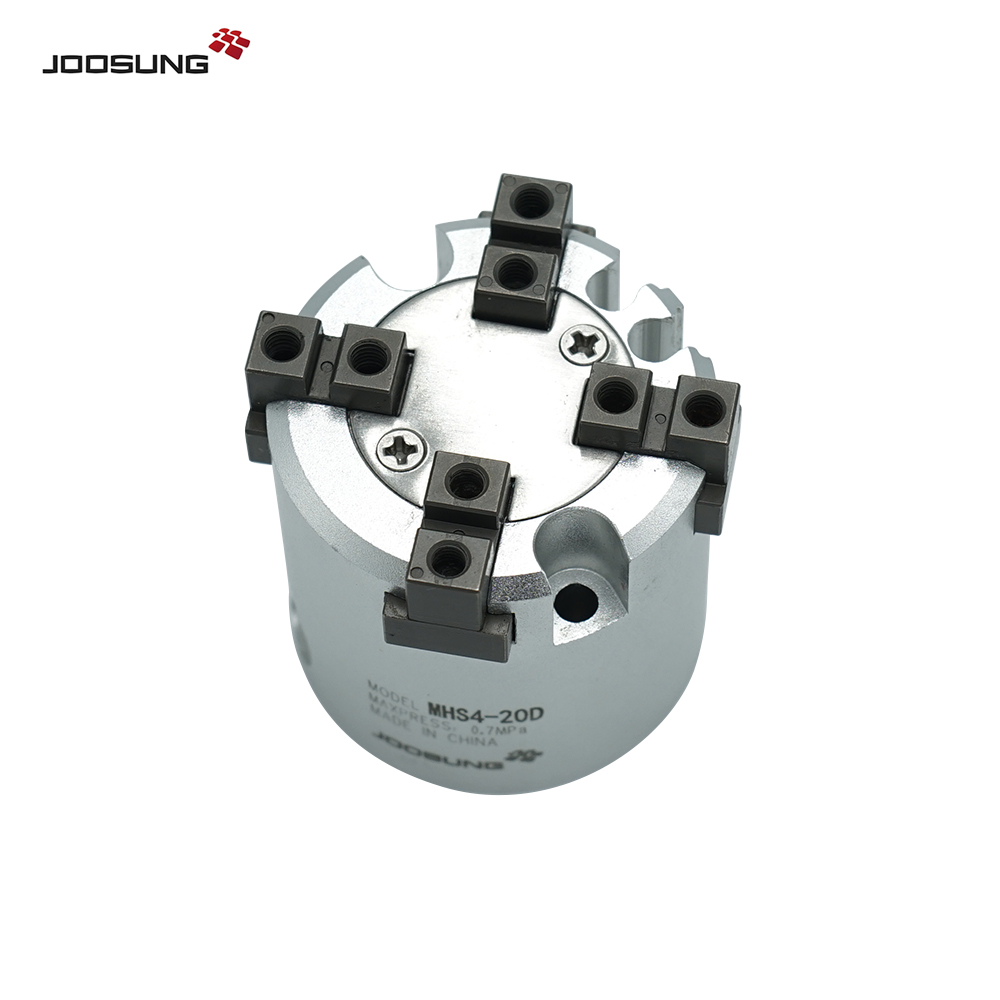

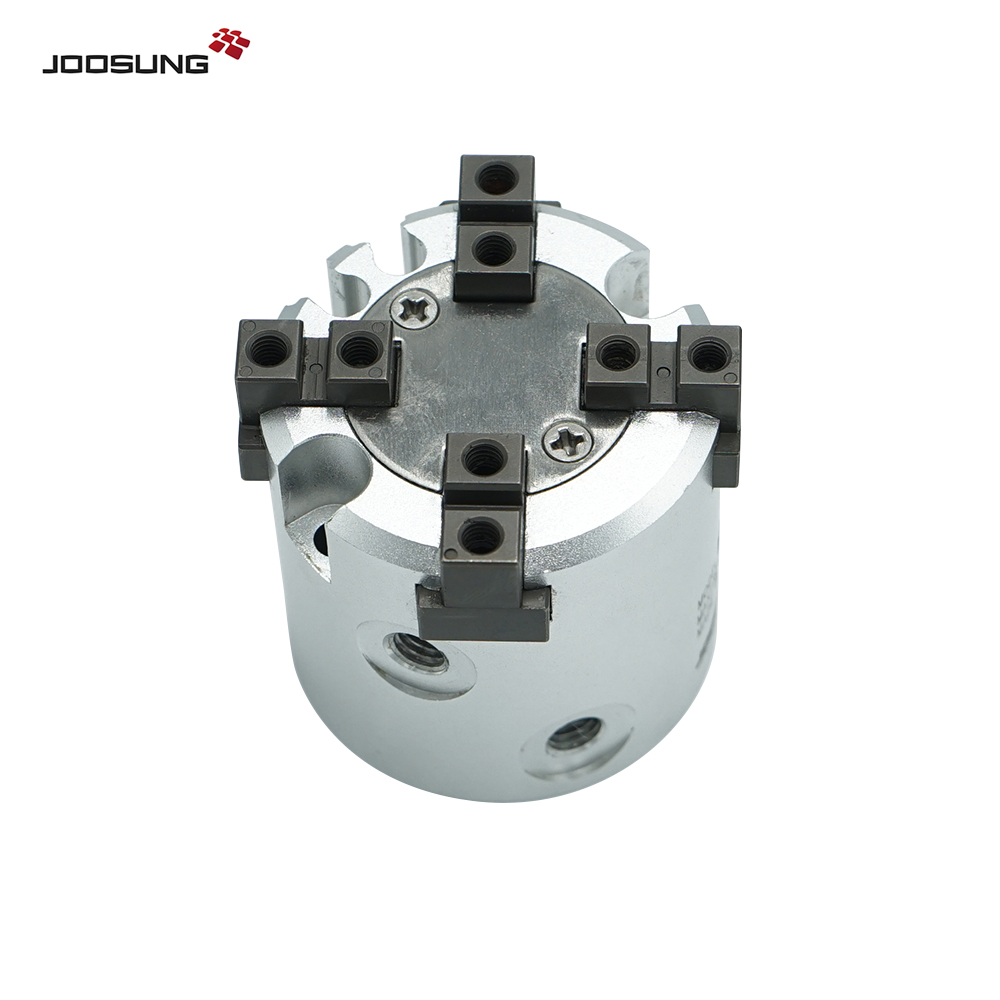

The MHS4 Series Air Gripper is a 4-finger pneumatic gripper designed with a round body and slide guide mechanism. It provides synchronized motion and stable gripping for square, irregular, or delicate workpieces. The unique 4-finger design offers enhanced contact and centering, making it ideal for components that require multi-point gripping and gentle but firm holding.
The wedge cam mechanism ensures a compact structure with high gripping force, allowing easy integration in robotic arms, pick-and-place systems, and space-constrained automation setups.
4-finger gripping provides stable hold for square, rectangular, or sensitive parts
Wedge cam mechanism ensures compact, lightweight, and high-force gripping
Slide guide construction for smooth motion and long service life
High repeatability (±0.01 mm), ideal for precise handling in automated processes
Available in various bore sizes and stroke lengths for different payloads
Sensor-mounting capability for smart position detection and system feedback
Easy installation with multiple mounting styles for flexible system design
Round body saves space and suits rotary or compact motion applications
The MHS4 Series 4-Finger Air Gripper is used in:
Precision handling of square and fragile components in electronics or optics
Robotic pick-and-place applications for odd-shaped parts
Gripping tasks requiring 4-point balance and even pressure distribution
Automated assembly lines for medical, cosmetic, or light mechanical products
CNC and machine tending where non-rotating or delicate gripping is required
Packaging, sorting, and inspection lines requiring precision repeatability
