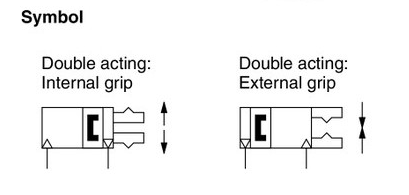

Product Specifications | |||||||||||
Model | MHS3-16D | MHS3-20D | MHS3-25D | MHS3-32D | MHS3-40D | MHS3-50D | MHS3-63D | MHS3-80D | MHS3-100D | MHS3-125D | |
Bore (mm) | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 | |
Working medium | Clean air | ||||||||||
Working pressure | 0.2 to 0.6 MPa | 0.1 to 0.6 MPa | |||||||||
Working temperature | -10 to 60 ℃ | ||||||||||
Repeatability | ±0.01 mm | ||||||||||
Max. operating frequency | 120 c.p.m. | 60 c.p.m. | 30 c.p.m. | ||||||||
Lubrication | Not required | ||||||||||
Action | Double acting | ||||||||||
Effective gripping force at 0.5 MPa | External grip | 14 N | 25 N | 42 N | 74 N | 118 N | 187 N | 335 N | 500 N | 750 N | 1270 N |
Internal grip | 16 N | 28 N | 47 N | 82 N | 130 N | 204 N | 359 N | 525 N | 750 N | 1320 N | |
Opening/Closing stroke | 4 mm | 4 mm | 6 mm | 8 mm | 8 mm | 12 mm | 16 mm | 20 mm | 24 mm | 32 mm | |

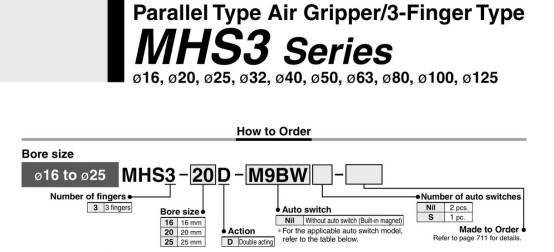

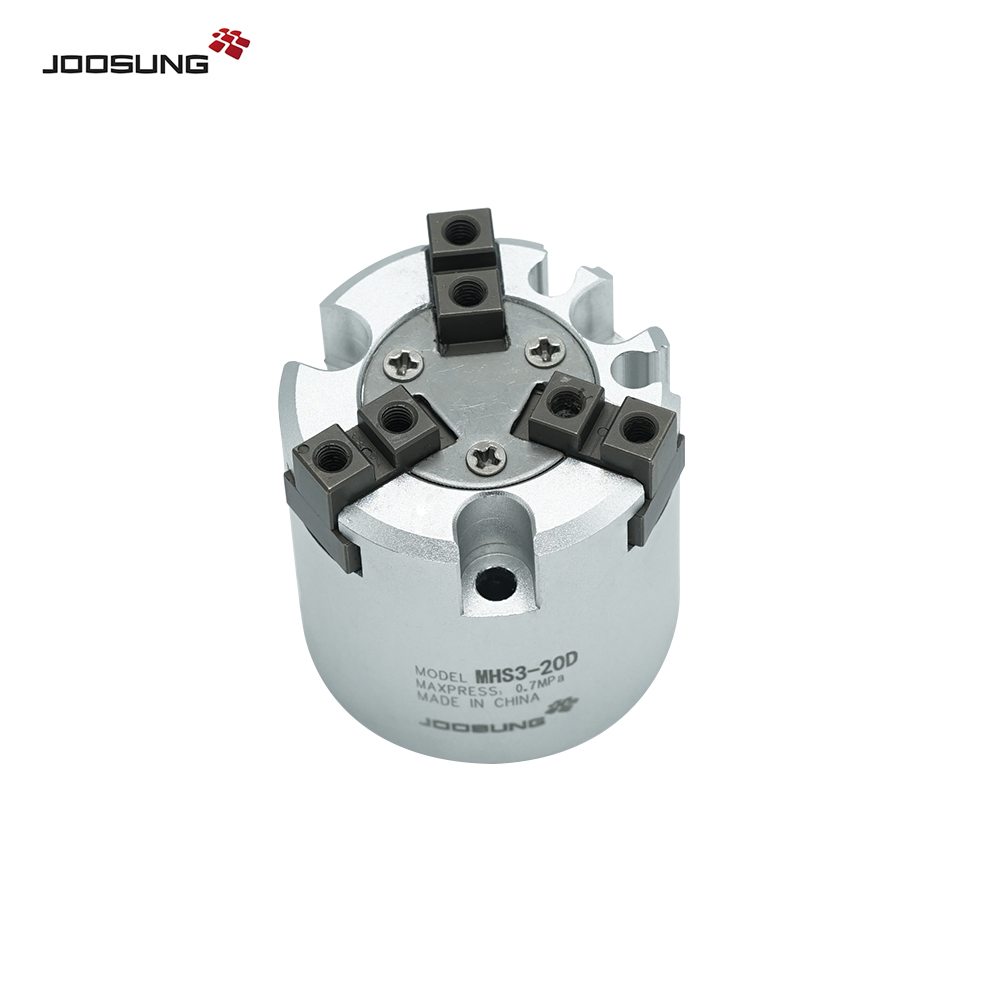

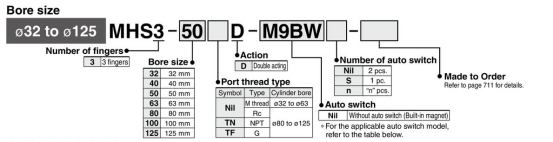

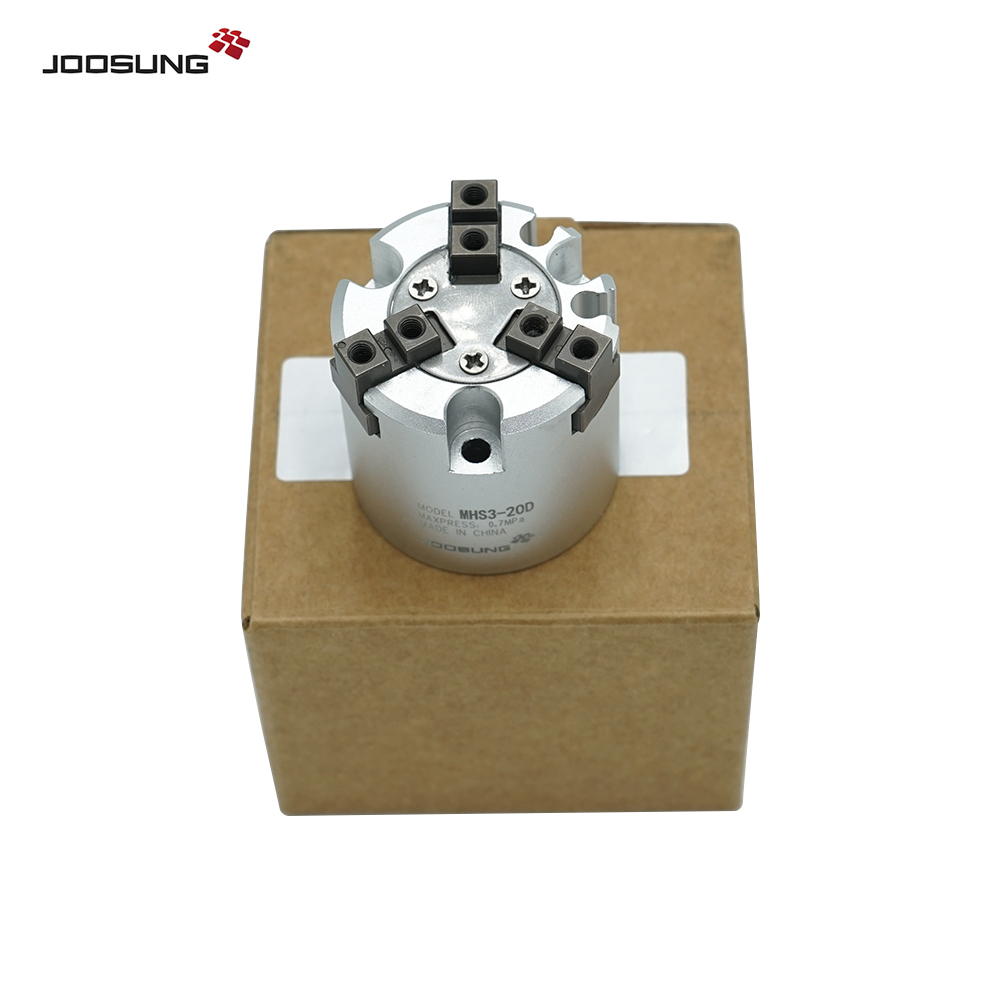

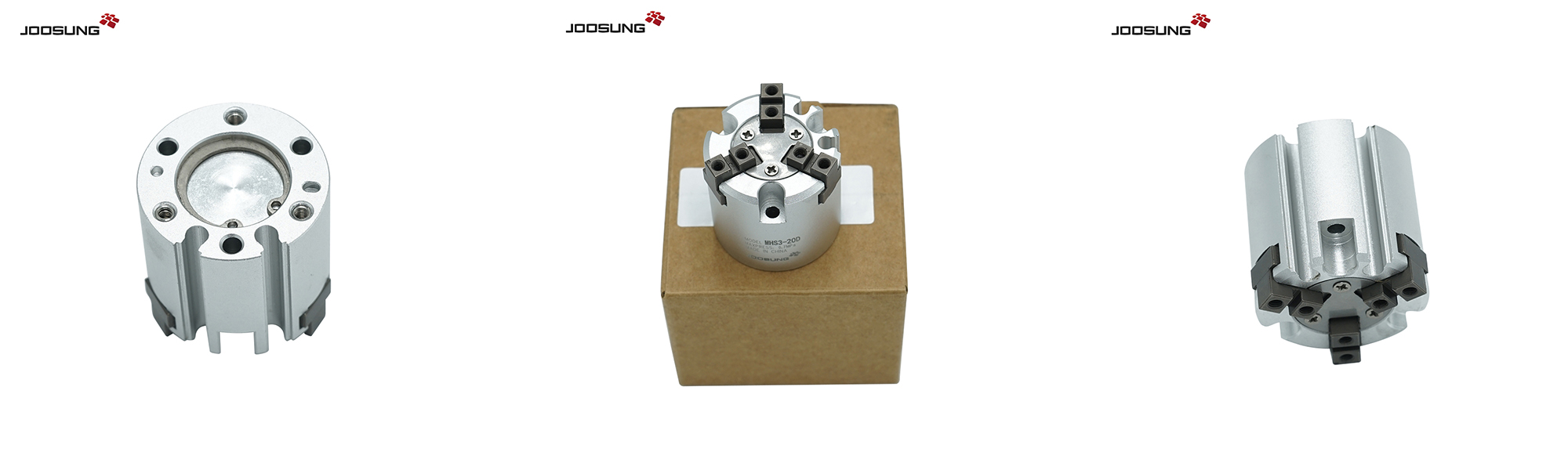

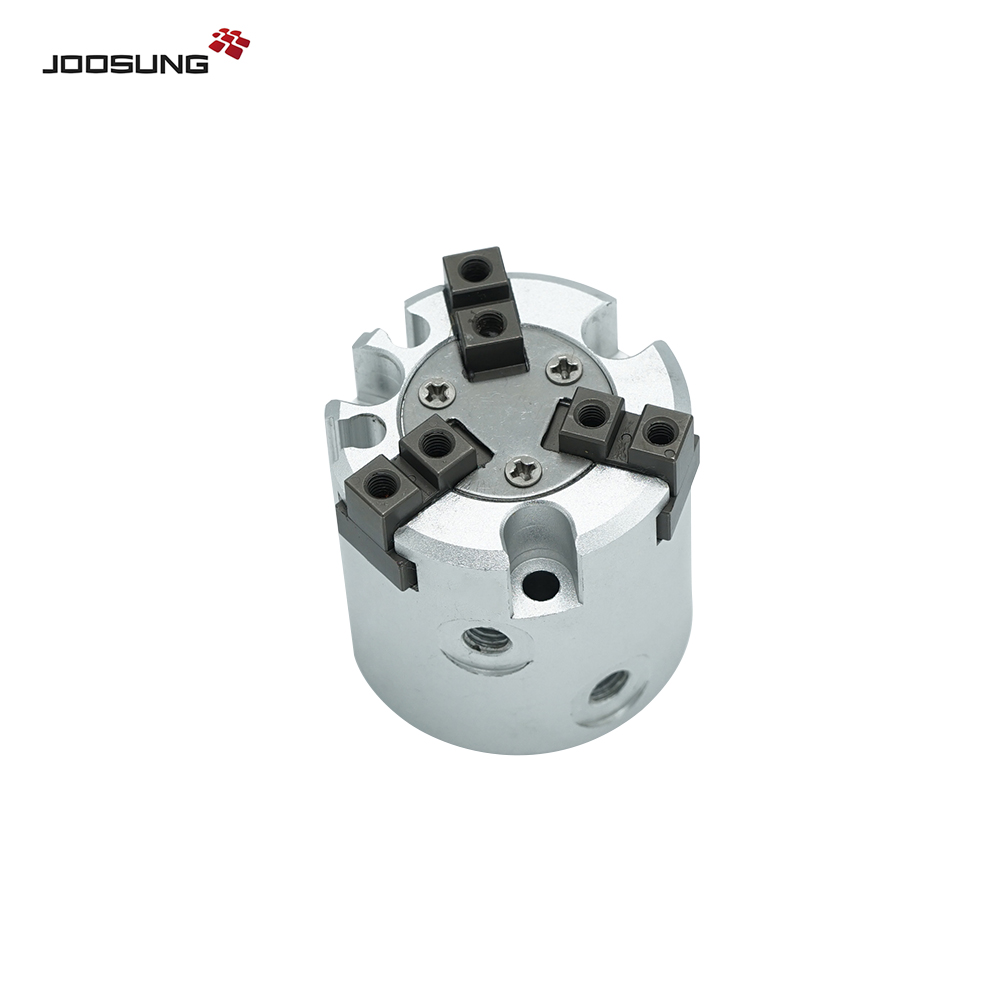

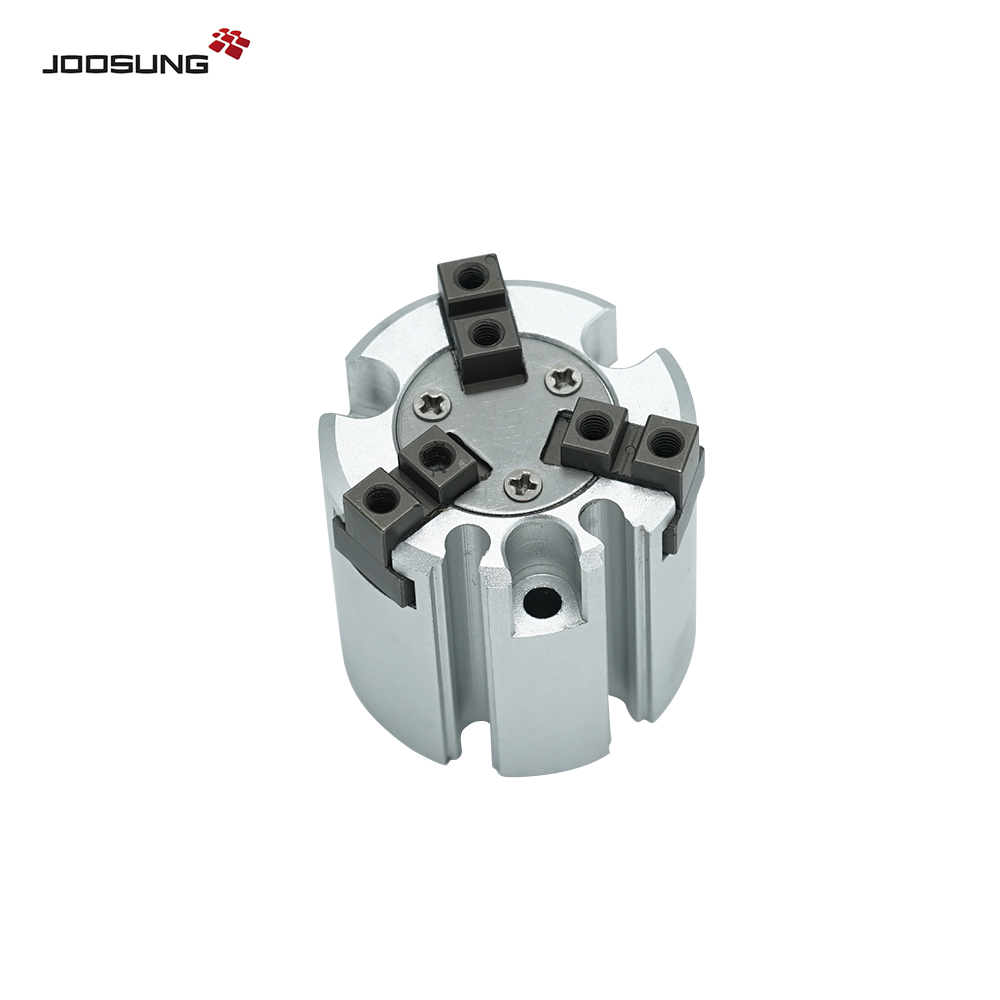

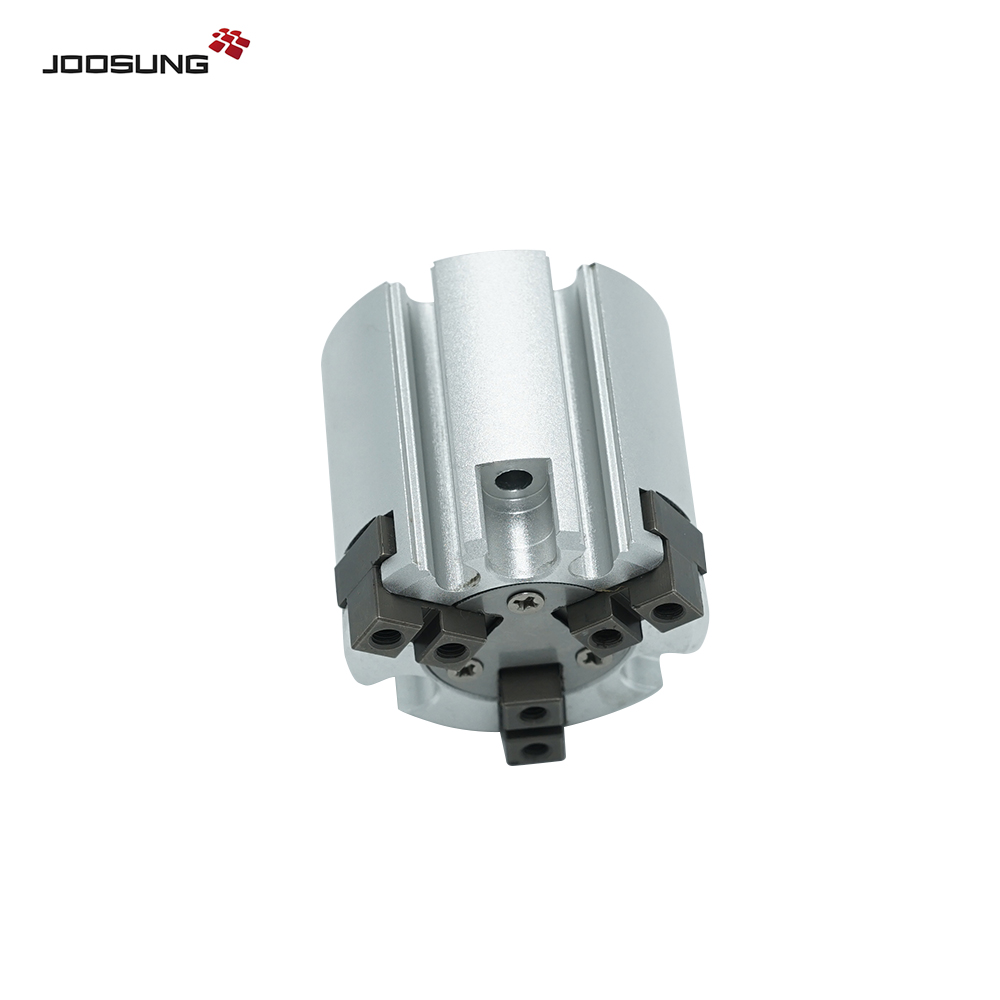

MHS3 Series Slide Guide Round Body Air Gripper – 3-Finger Type
Compact Balanced High Holding Force
The MHS3 Series Air Gripper is a three-finger pneumatic gripper designed with a round body and slide guide mechanism, offering stable, synchronized motion and high gripping precision for round, cylindrical, or irregular-shaped parts. The wedge cam construction enables a compact form while delivering strong holding force, ideal for confined spaces in automation systems and robot end effectors.
Key Features of MHS3 Series Grippers
3-finger gripping action ensures stable, centered hold for round and spherical workpieces
Wedge cam mechanism delivers strong gripping force with compact, lightweight body
Slide guide design ensures smooth, low-friction movement and extended durability
±0.01 mm repeatability for precision gripping in automated processes
Available in standard and long stroke types to suit different applications

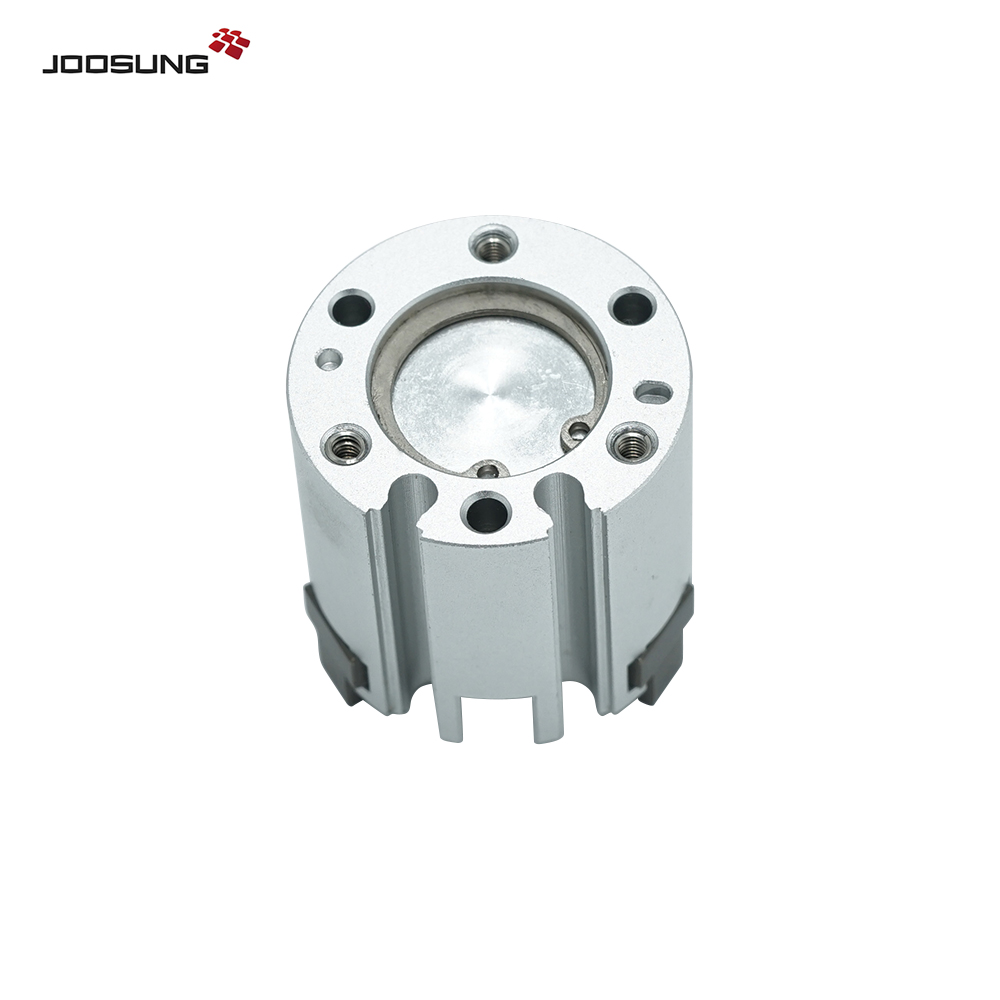

Center pusher and through-hole design allow reliable ejection of workpieces
Multiple mounting options for easy integration into robotic and automation systems
Sensor-compatible for feedback and position detection in smart setups
Application Fields
The MHS3 Series Slide Guide Air Gripper is widely used in:
CNC machine tool loading and unloading
Robotic pick-and-place systems for round or odd-shaped parts
Automated press-fitting and part positioning applications
Assembly lines handling cylindrical parts, bearings, caps, or tubes
Packaging and inspection systems requiring centered grip
Medical device, optics, and precision part handling in clean or restricted environments
