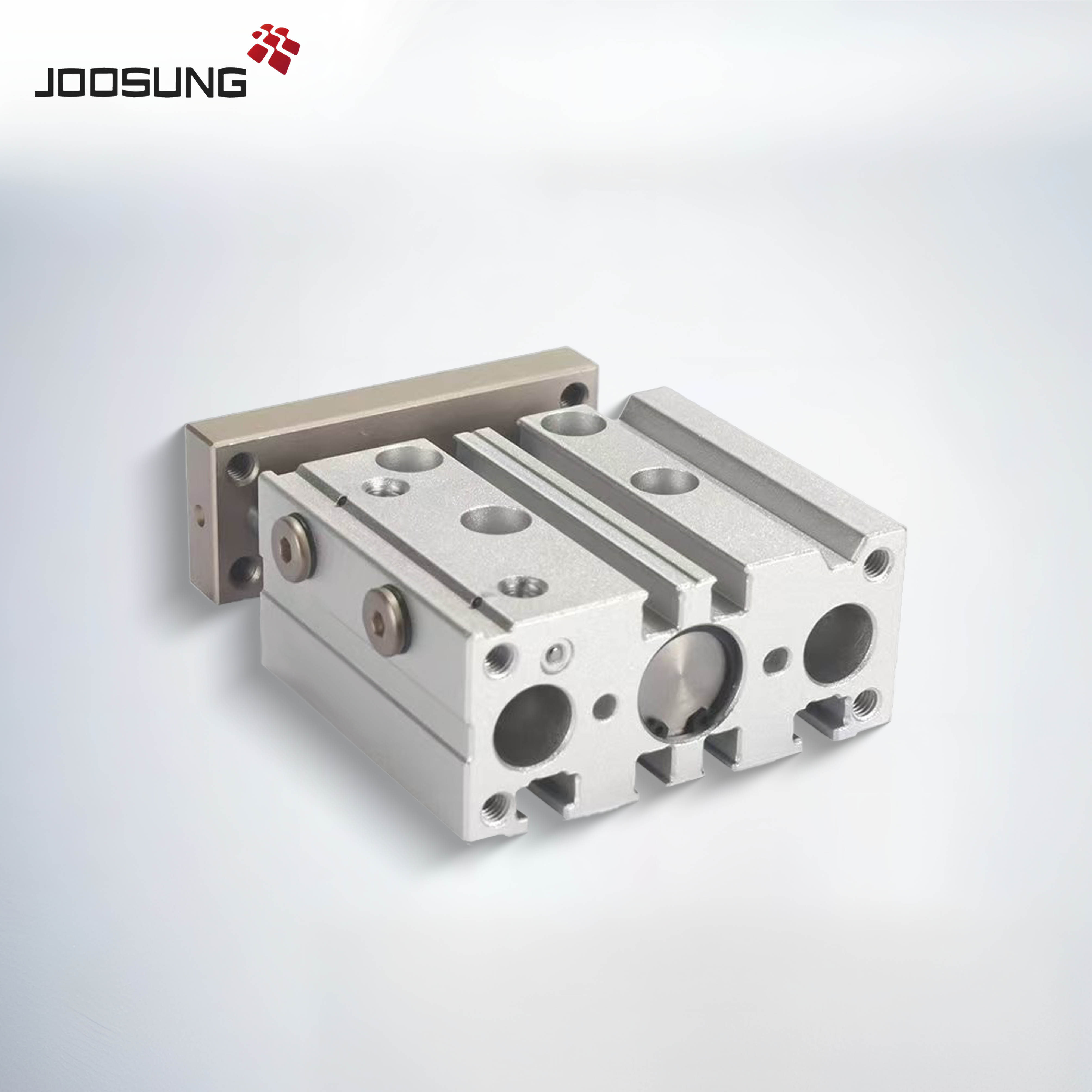

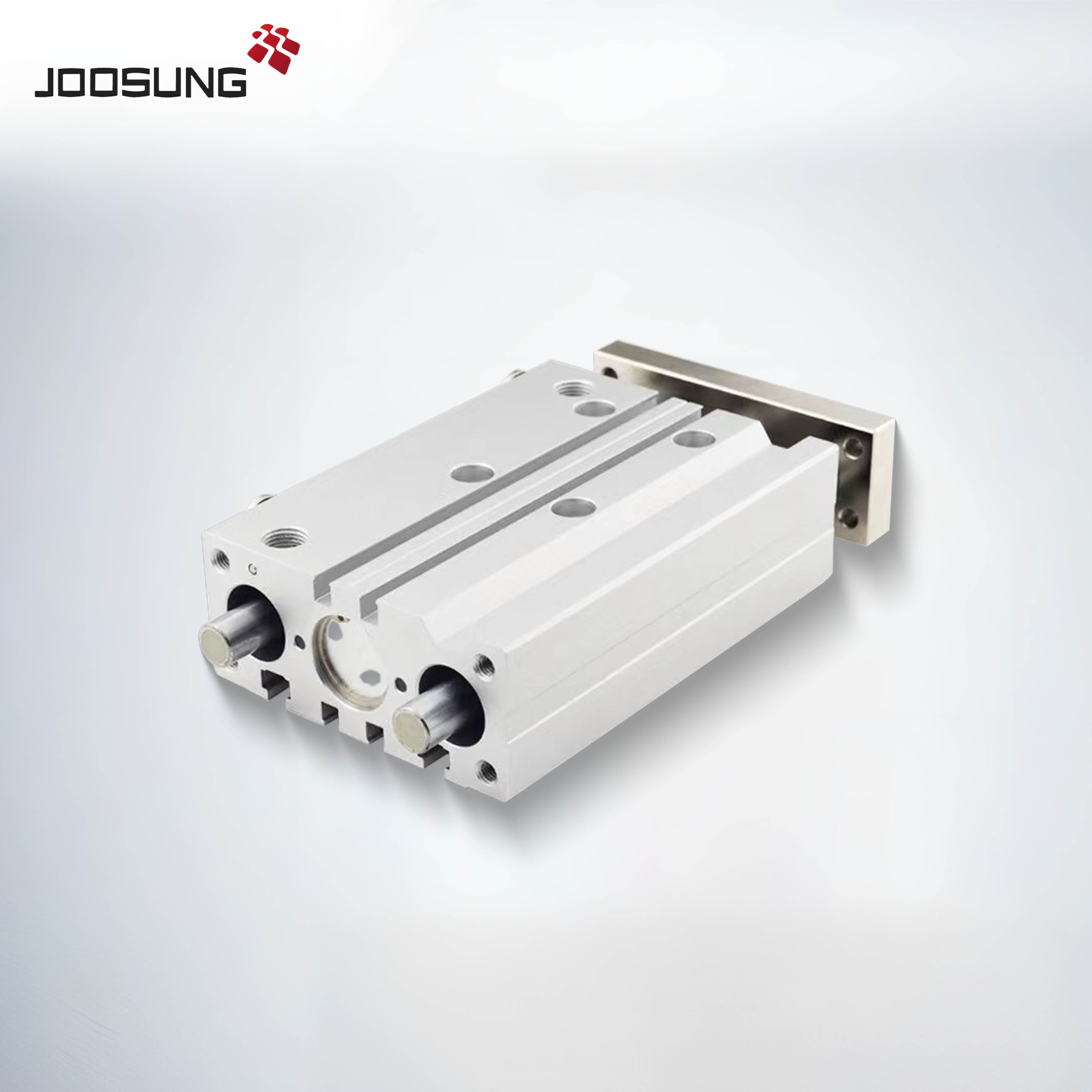

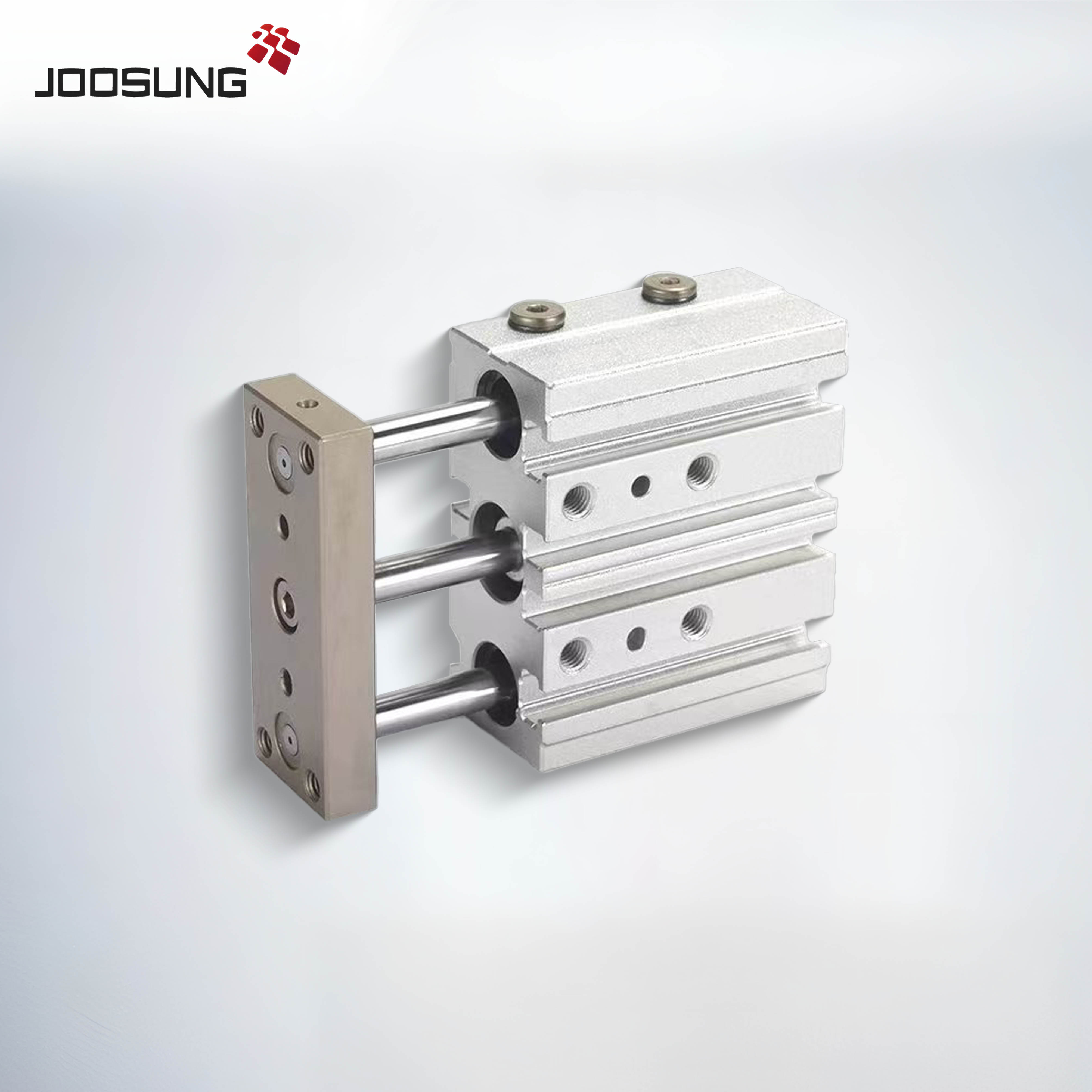

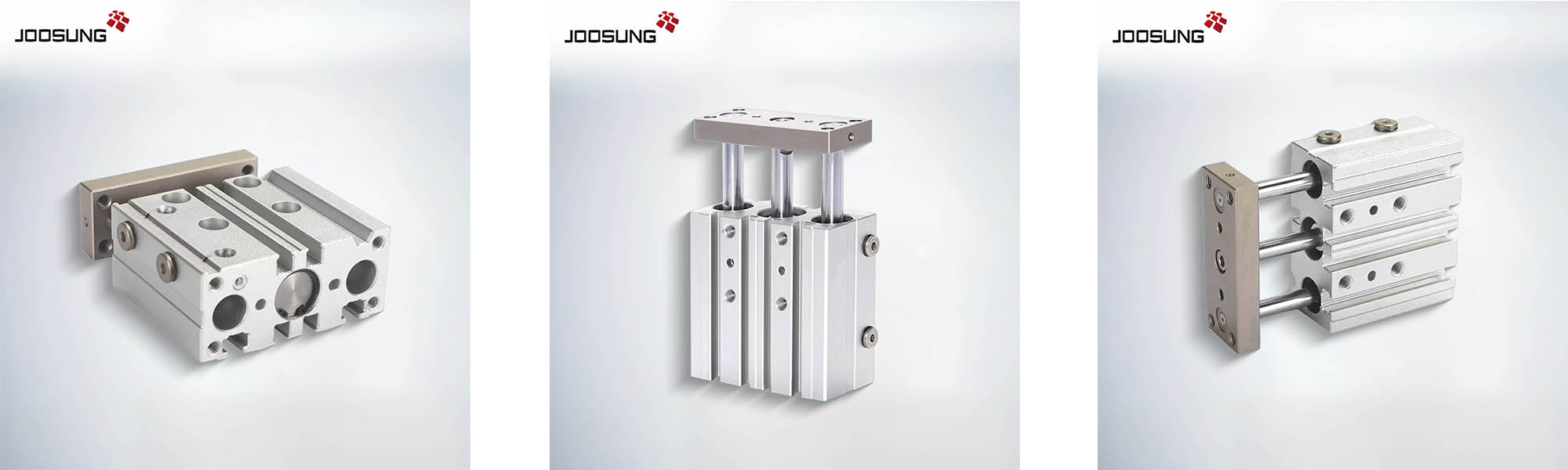

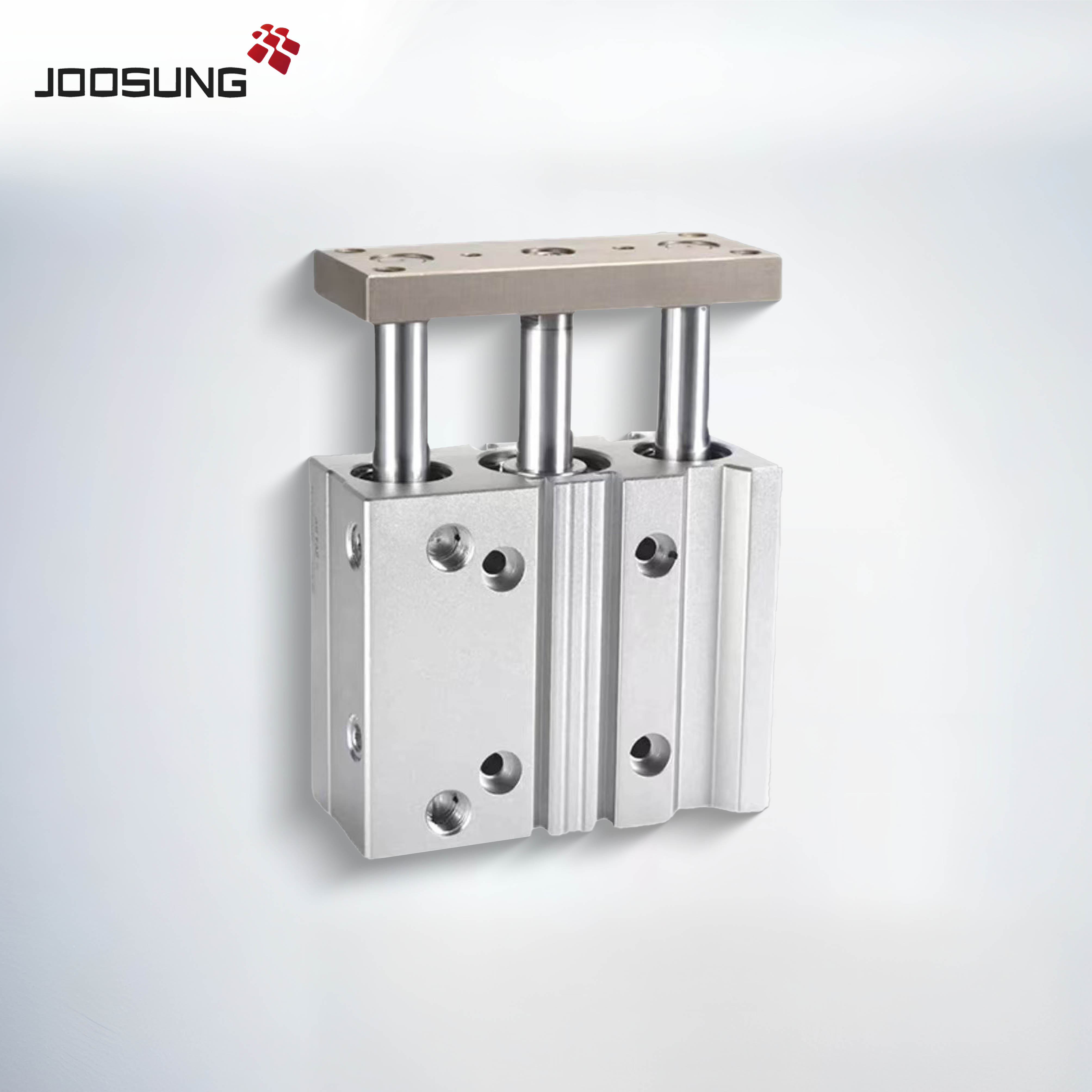

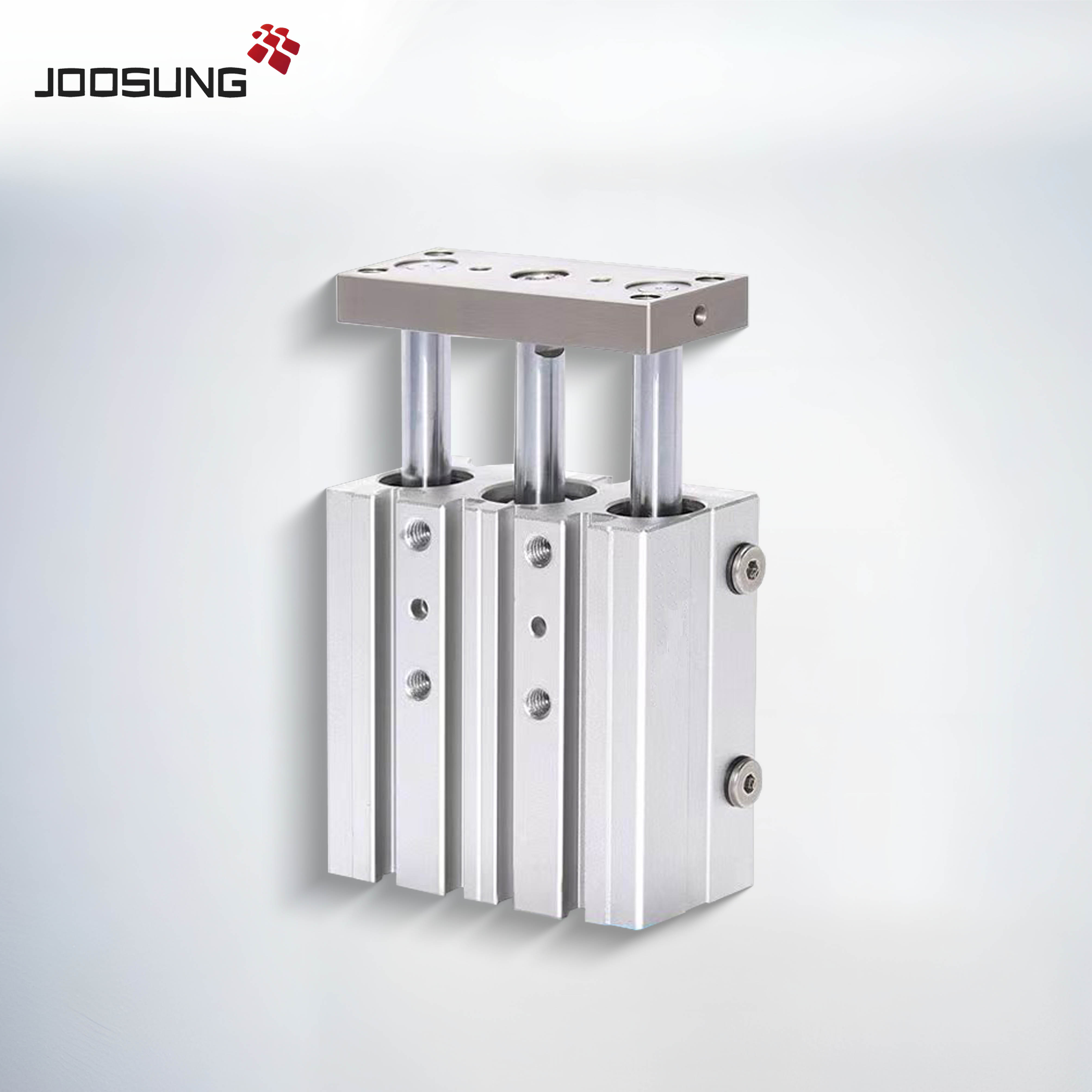

Specification：

Bore size:

6

10

12

16

20

25

32

40

50

63

80

100

Acting type:

Double Acting

Fluid:

Air(to be filtered by 40μm filter element)

Operating Pressure:

0.2~0.7MPa

0.15~1.0MPa

Proof pressure:

1.2MPa（175psi）

1.5MPa（215psi）

Temperature（℃）:

-20~70

Speed rang (mm/s):

50~500

30~500

50~400

Stroke tolerance:

(0~+1.0)

Cushion Type:

Burmper

Non-rotating Tolerance:

TCL

_

±0.08°

±0.07°

±0.06°

±0.05°

TCM

±0.1°

±0.10°

±0.09°

±0.08°

±0.06°

Port Size：

M3X0.5

M5X0.8

PT1/8

PT1/4

PT3/8

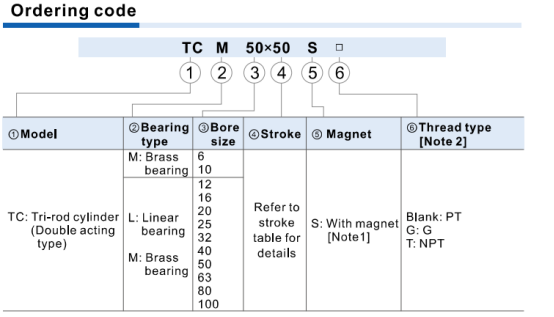

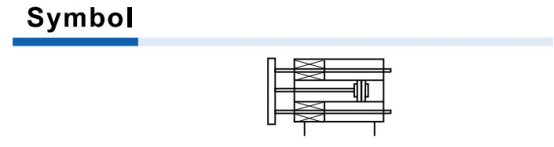

Series Model

Available Models

TCL6

Series

TCL6-5S, TCL6-10S, TCL6-15S, TCL6-20S

TCL10Series

TCL10-5S, TCL10-10S, TCL10-15S, TCL10-20S, TCL10-25S, TCL10-30S

TCL12Series

TCL12-10S, TCL12-20S, TCL12-25S, TCL12-30S, TCL12-40S, TCL12-50S,

TCL12-60S, TCL12-70S, TCL12-75S, TCL12-80S, TCL12-90S, TCL12-100S,

TCL12-125S, TCL12-150S

TCL16 Series

TCL16-10S, TCL16-20S, TCL16-25S, TCL16-30S, TCL16-40S, TCL16-50S,

TCL16-60S, TCL16-70S, TCL16-75S, TCL16-80S, TCL16-90S, TCL16-100S,

TCL16-125S, TCL16-150S, TCL16-175S, TCL16-200S

TCL20 Series

TCL20-20S, TCL20-25S, TCL20-30S, TCL20-40S, TCL20-50S, TCL20-60S, TCL20-70S,

TCL20-75S, TCL20-80S, TCL20-90S, TCL20-100S, TCL20-125S, TCL20-150S,

TCL20-175S, TCL20-200S, TCL20-225S, TCL20-250S

TCL25 Series

TCL25-20S, TCL25-25S, TCL25-30S, TCL25-40S, TCL25-50S, TCL25-60S, TCL25-70S,

TCL25-75S, TCL25-80S, TCL25-90S, TCL25-100S, TCL25-125S, TCL25-150S,

TCL25-175S, TCL25-200S, TCL25-225S, TCL25-250S

TCL32 Series

TCL32-25S, TCL32-30S, TCL32-40S, TCL32-50S, TCL32-60S, TCL32-70S, TCL32-75S,

TCL32-80S, TCL32-90S, TCL32-100S, TCL32-125S, TCL32-150S, TCL32-175S,

TCL32-200S, TCL32-225S, TCL32-250S

TCL40Series

TCL40-25S, TCL40-30S, TCL40-40S, TCL40-50S, TCL40-60S, TCL40-70S, TCL40-75S,

TCL40-80S, TCL40-90S, TCL40-100S, TCL40-125S, TCL40-150S, TCL40-175S, TCL40-200S,

TCL40-225S, TCL40-250S

TCL50Series

TCL50-25S, TCL50-30S, TCL50-40S, TCL50-50S, TCL50-60S, TCL50-70S,

TCL50-75S, TCL50-80S, TCL50-90S, TCL50-100S, TCL50-125S, TCL50-150S,

 TCL50-175S, TCL50-200S, TCL50-225S, TCL50-250S

TCL63Series

TCL63-25S, TCL63-30S, TCL63-40S, TCL63-50S, TCL63-60S, TCL63-70S,

TCL63-75S, TCL63-80S, TCL63-90S, TCL63-100S, TCL63-125S, TCL63-150S,

TCL63-175S, TCL63-200S, TCL63-225S, TCL63-250S

TCL80Series

TCL80-25S, TCL80-30S, TCL80-40S, TCL80-50S, TCL80-60S, TCL80-70S,

 TCL80-75S, TCL80-80S, TCL80-90S, TCL80-100S, TCL80-125S, TCL80-150S,

TCL80-175S, TCL80-200S, TCL80-225S, TCL80-250S

TCL100Series

TCL100-25S, TCL100-30S, TCL100-40S, TCL100-50S, TCL100-60S, TCL100-70S,

TCL100-75S, TCL100-80S, TCL100-90S, TCL100-100S, TCL100-125S, TCL100-150S,

TCL100-175S, TCL100-200S, TCL100-225S, TCL100-250S
