Specification | ||||||
Bore(mm) | 16 | 20 | 25 | 32 | 40 | |
Operation | Double Action Type | |||||
Working Medium | Air | |||||
Mountings | BasicType,FA Type,FB Type,SDB Type | |||||
Operating Pressure Range | 1~9.0MPa | |||||
Proof Pressure | 13.5MPa | |||||
℃ Operating Temperature Range | 0-70℃ | |||||
Operating Speed Range | 50~800 mm/s | |||||
Cushion | Gasket Cushioning | |||||
Port Size | M5×0.8 | G1/8" | ||||
Superior Corrosion Resistance

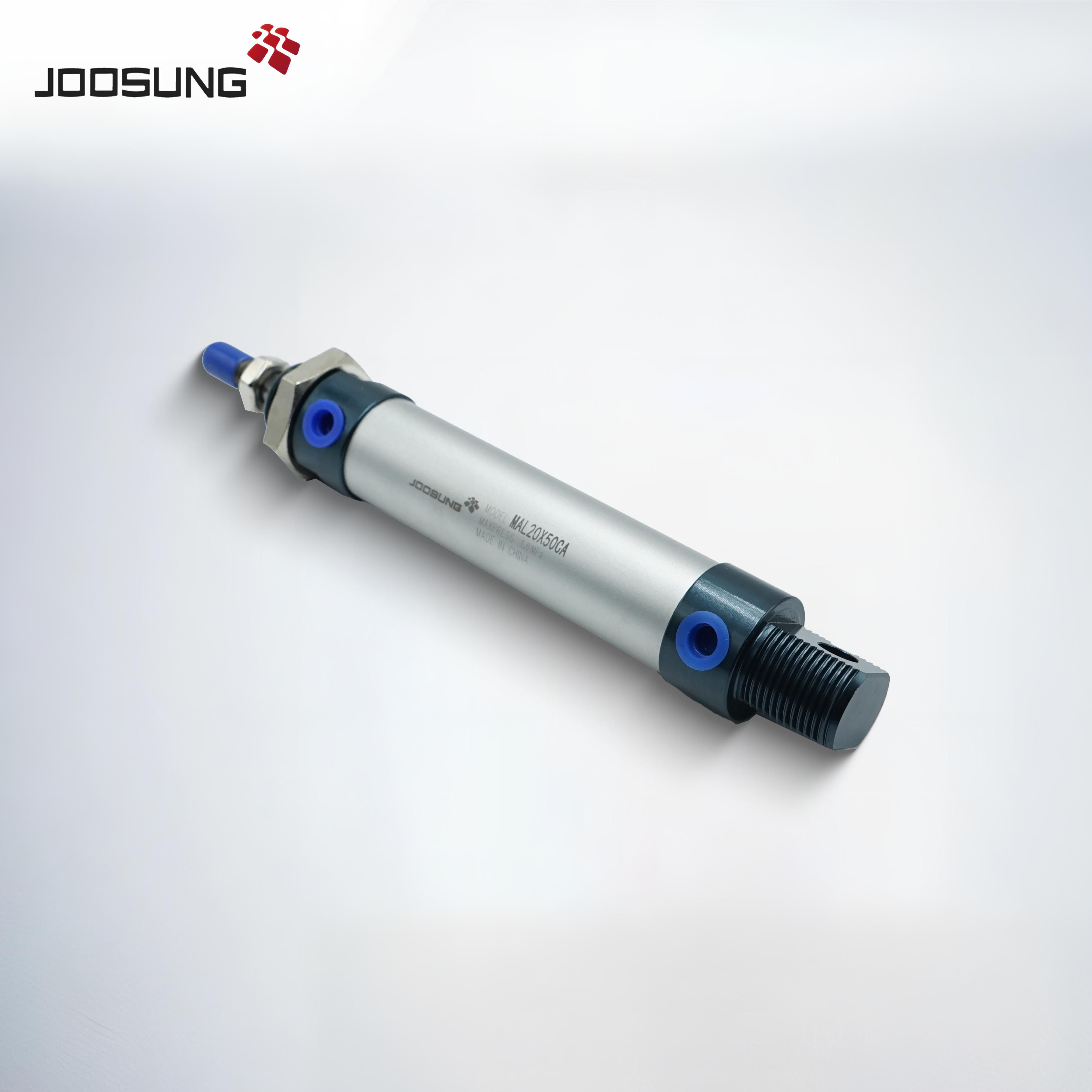

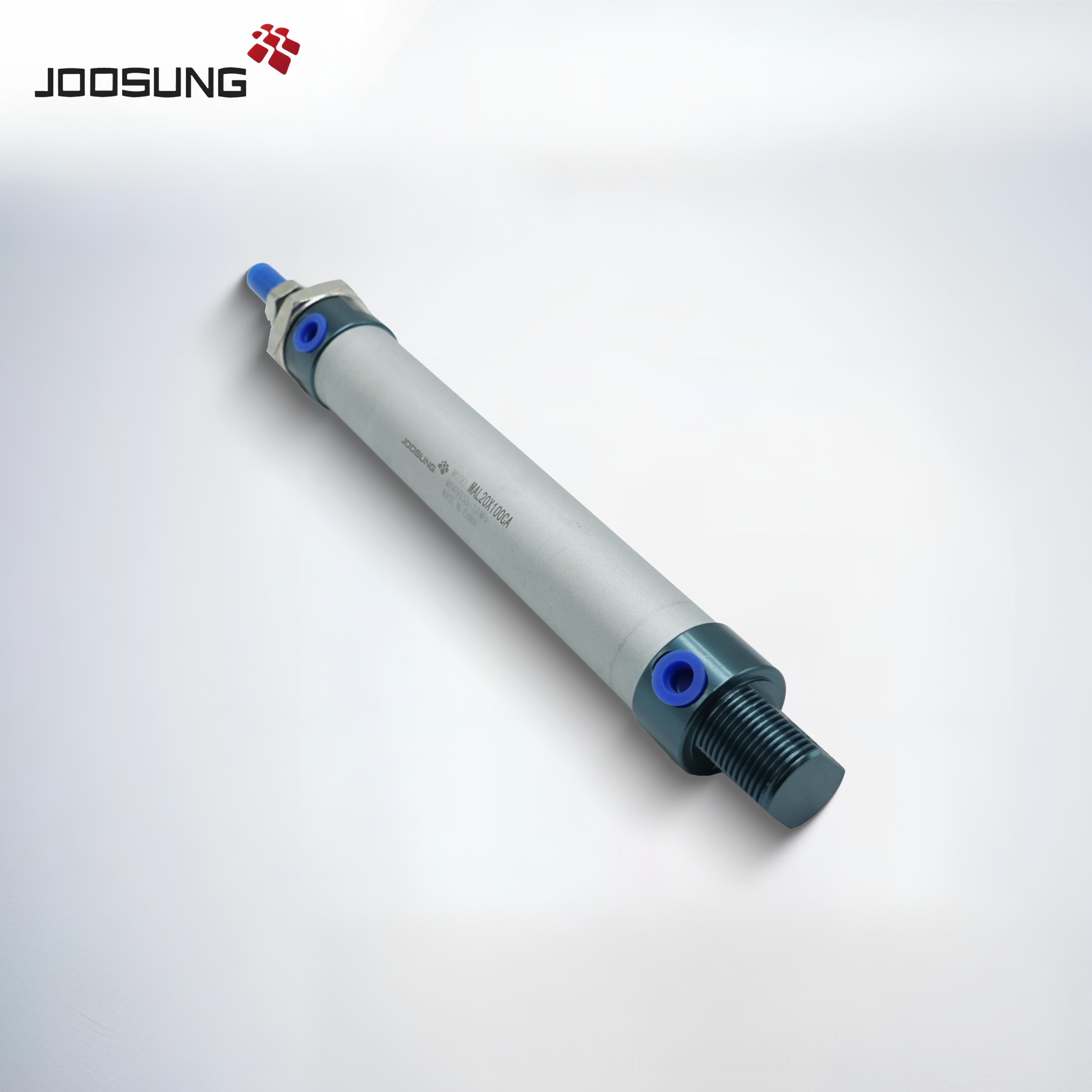

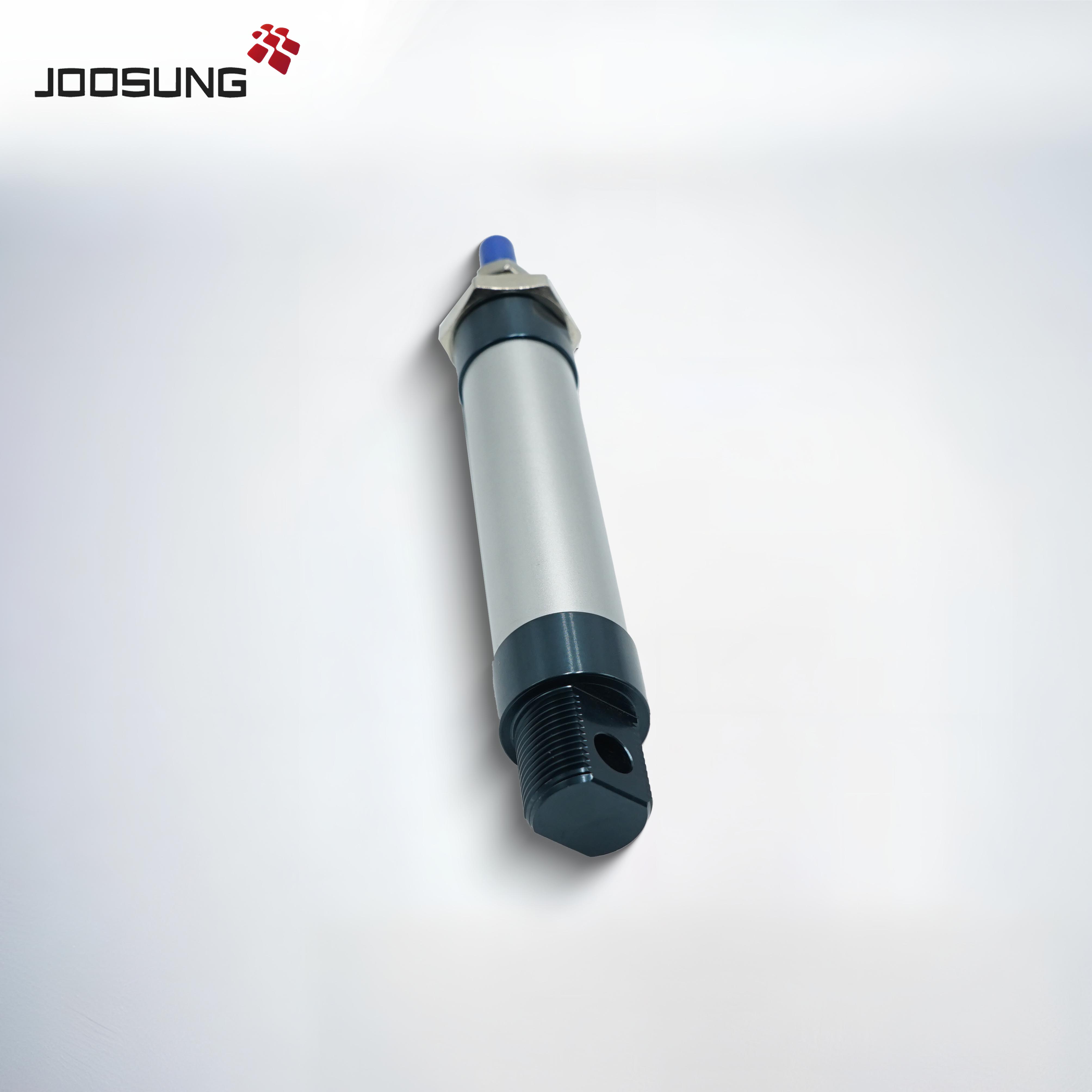

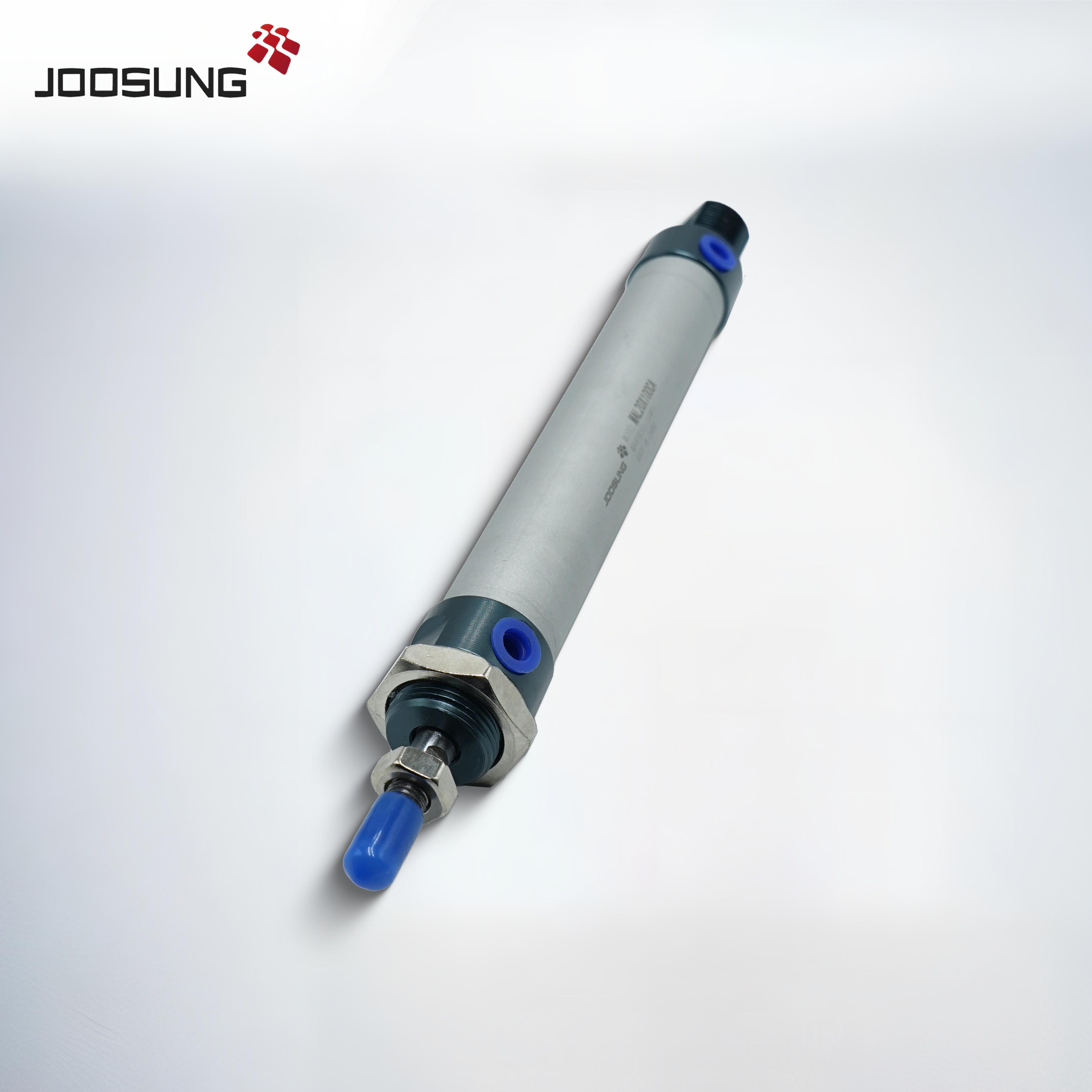

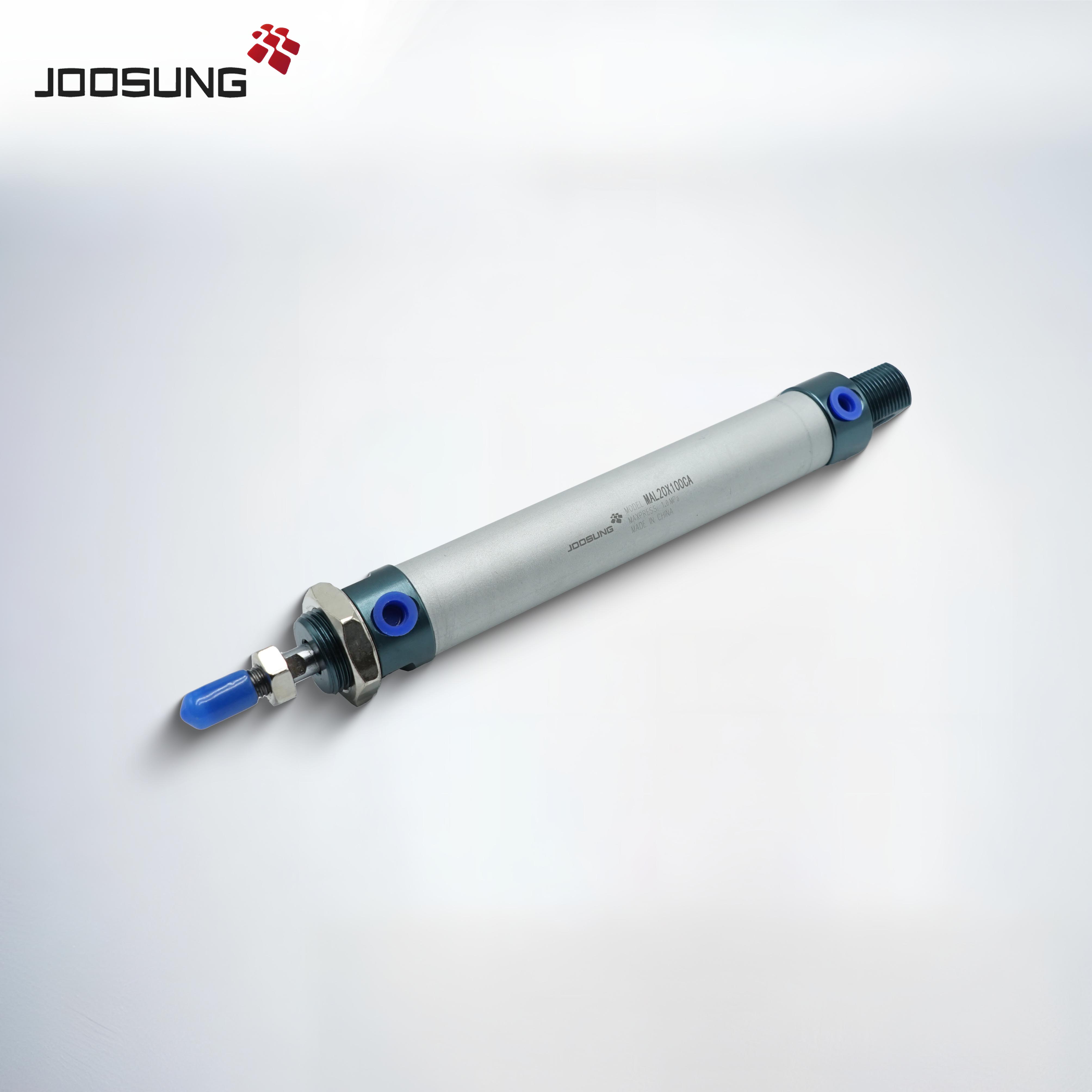

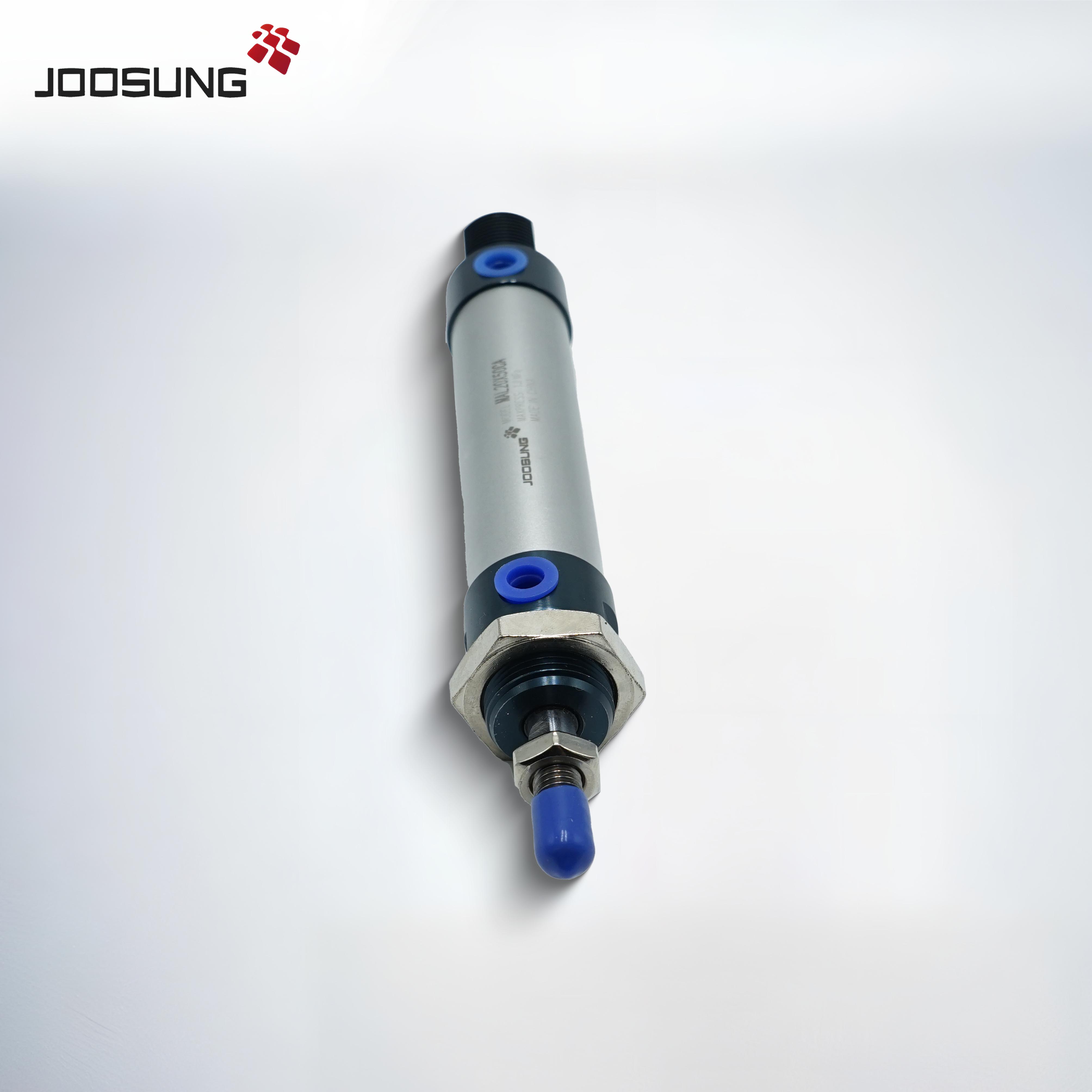

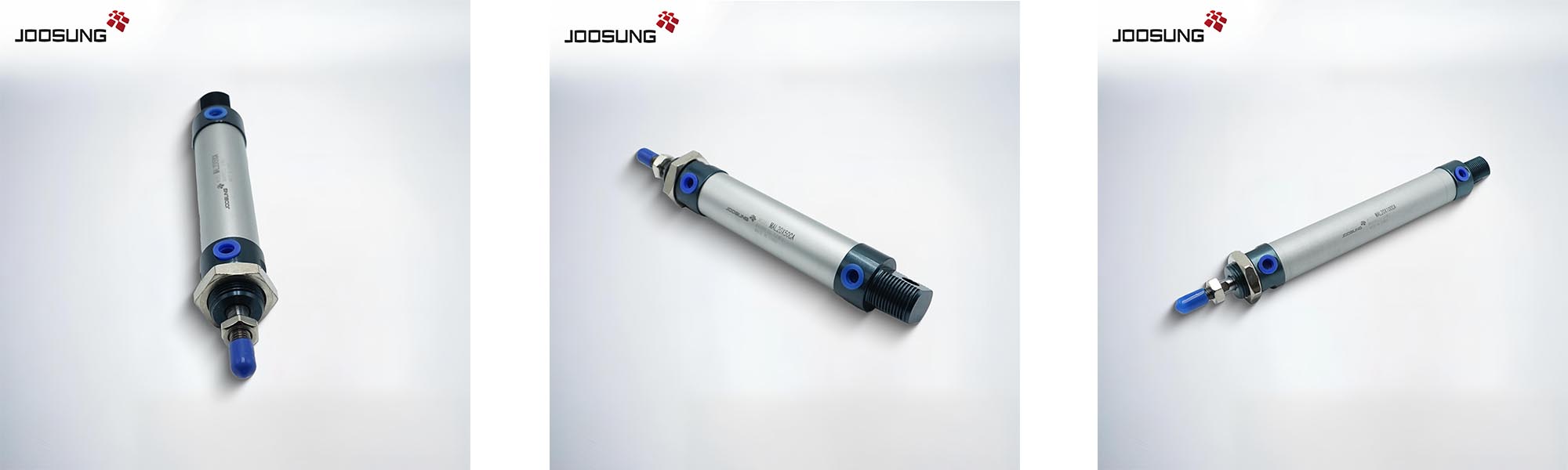

The MAL Stainless Steel Mini Cylinder is crafted from premium-grade stainless steel, ensuring long-lasting performance in humid, chemical, or saline environments.
Space-Saving Design
With its ultra-compact footprint, the MAL Stainless Steel Mini Cylinder fits seamlessly into tight spaces, ideal for automated machinery, medical devices, and robotics.
High Accuracy & Speed
Precision-engineered for smooth operation, the MAL Stainless Steel Mini Cylinder offers rapid response times and consistent force output, even under high-cycle conditions.
Easy Maintenance
The MAL Stainless Steel Mini Cylinder features a modular design for quick disassembly, reducing downtime and operational costs.
Series Model | Available Models |
MAL16 Series | MAL16-25,MAL16-50,MAL16-75,MAL16-80,MAL16-100,MAL16-125, MAL16-150,MAL16-160 MAL16-175,MAL16-200 |
MAL20 Series | MAL20-25,MAL20-50,MAL20-75,MAL20-80,MAL20-100,MAL20-125,MAL20-150, MAL20-160 MAL20-175,MAL20-200,MAL20-250,MAL20-300 |
MAL25 Series | MAL25-25,MAL25-50,MAL25-75,MAL25-80,MAL25-100,MAL25-125,MAL25-150, MAL25-160 MAL25-175,MAL25-200,MAL25-250,MAL25-300,MAL25-350,MAL25-400,MAL25-450,MAL25-500 |
MAL32 Series | MAL32-25,MAL32-50,MAL32-75,MAL32-80,MAL32-100,MAL32-125,MAL32-150, MAL32-160 MAL32-175,MAL32-200,MAL32-250,MAL32-300,MAL32-350,MAL32-400,MAL32-450,MAL32-500 |
MAL40 Series | MAL40-25,MAL40-50,MAL40-75,MAL40-80,MAL40-100,MAL40-125,MAL40-150, MAL40-160 MAL40-175,MAL40-200,MAL40-250,MAL40-300,MAL40-350,MAL40-400,MAL40-450,MAL40-500 |
