Product Specifications | |||
Working medium | Air | ||
Working pressure | Double acting | Ф10: 0.2 to 0.7 MPa | |
Ф16 to Ф25: 0.1 to 0.7 MPa | |||
Single acting | Normally open | Ф10: 0.35 to 0.7 MPa | |
Normally closed | Ф16 to Ф25: 0.25 to 0.7 MPa | ||
Working temperature | -10 to 60 ℃ | ||
Repeatability | ±0.01 mm | ||
Max.operating frequency | 120 c.p.m. | ||
Lubrication | Not required | ||
Action | Double acting/Single acting | ||
Auto switch (Option) | Solid state auto switch (3-wire, 2-wire) | ||

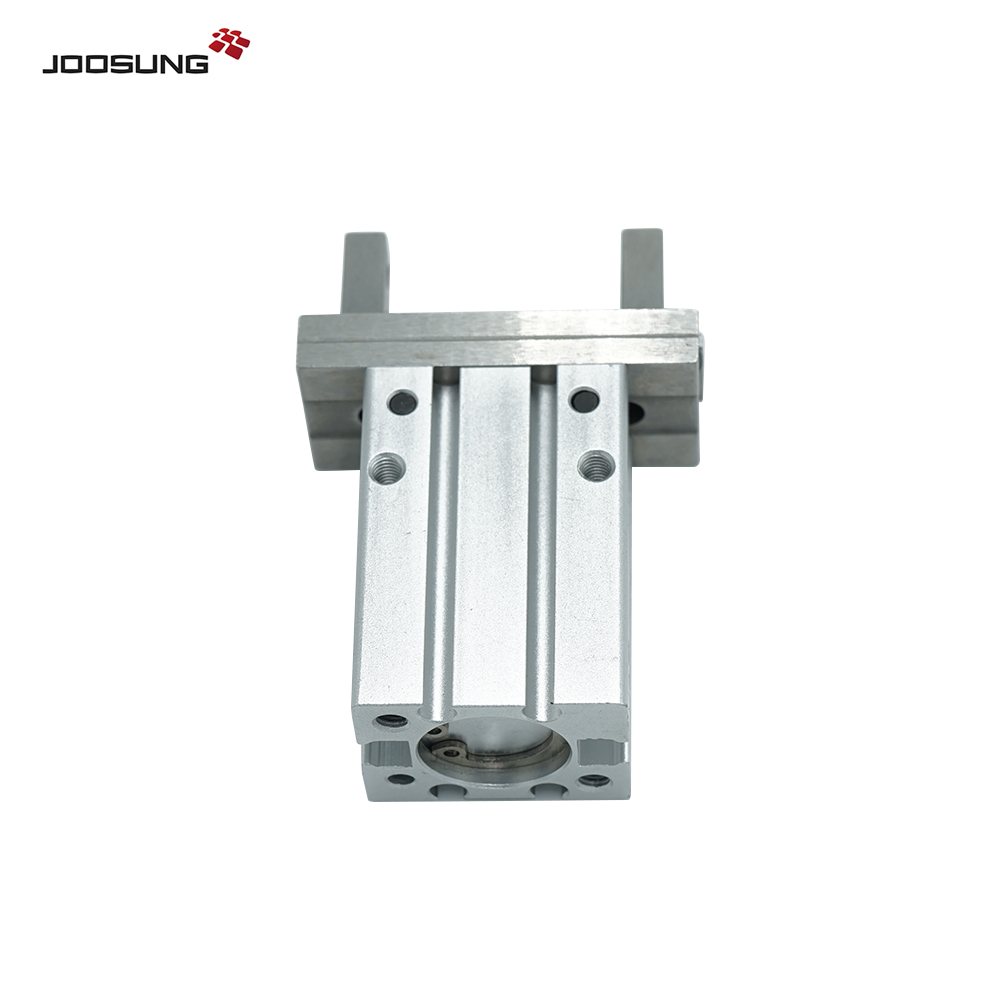

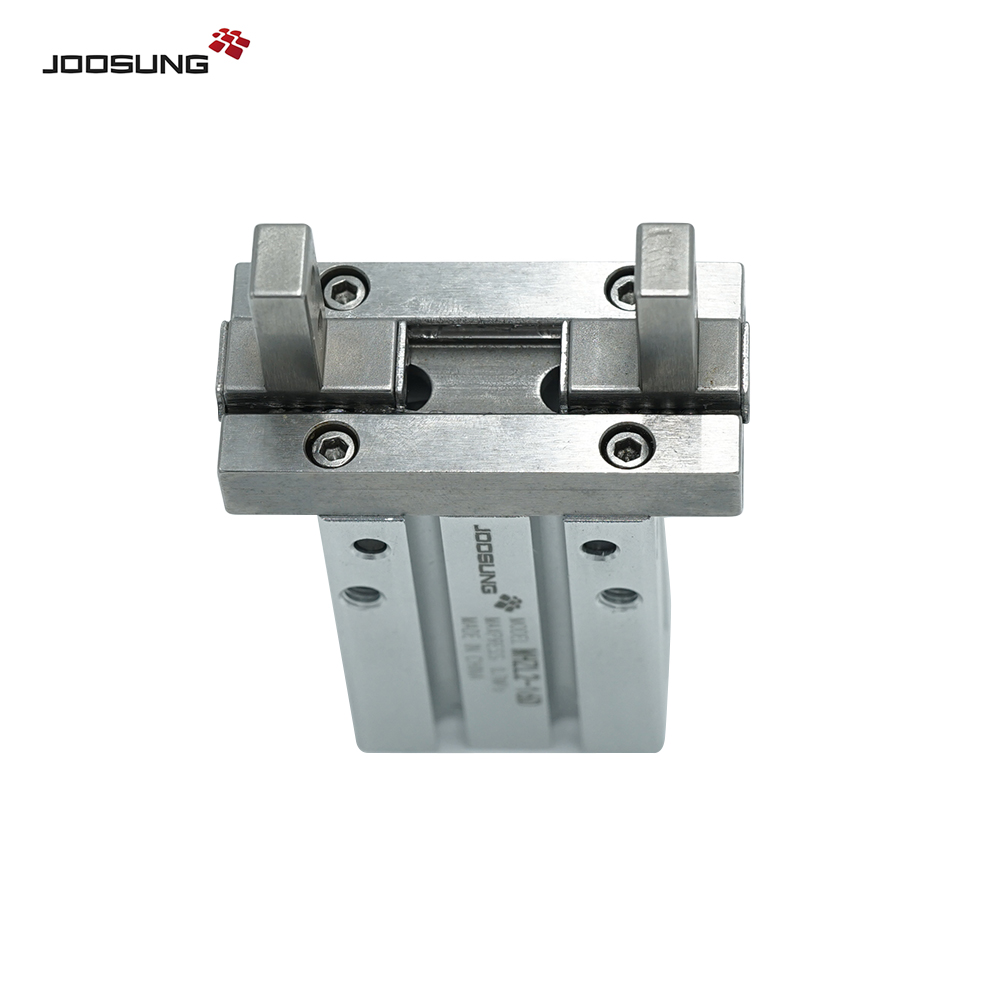

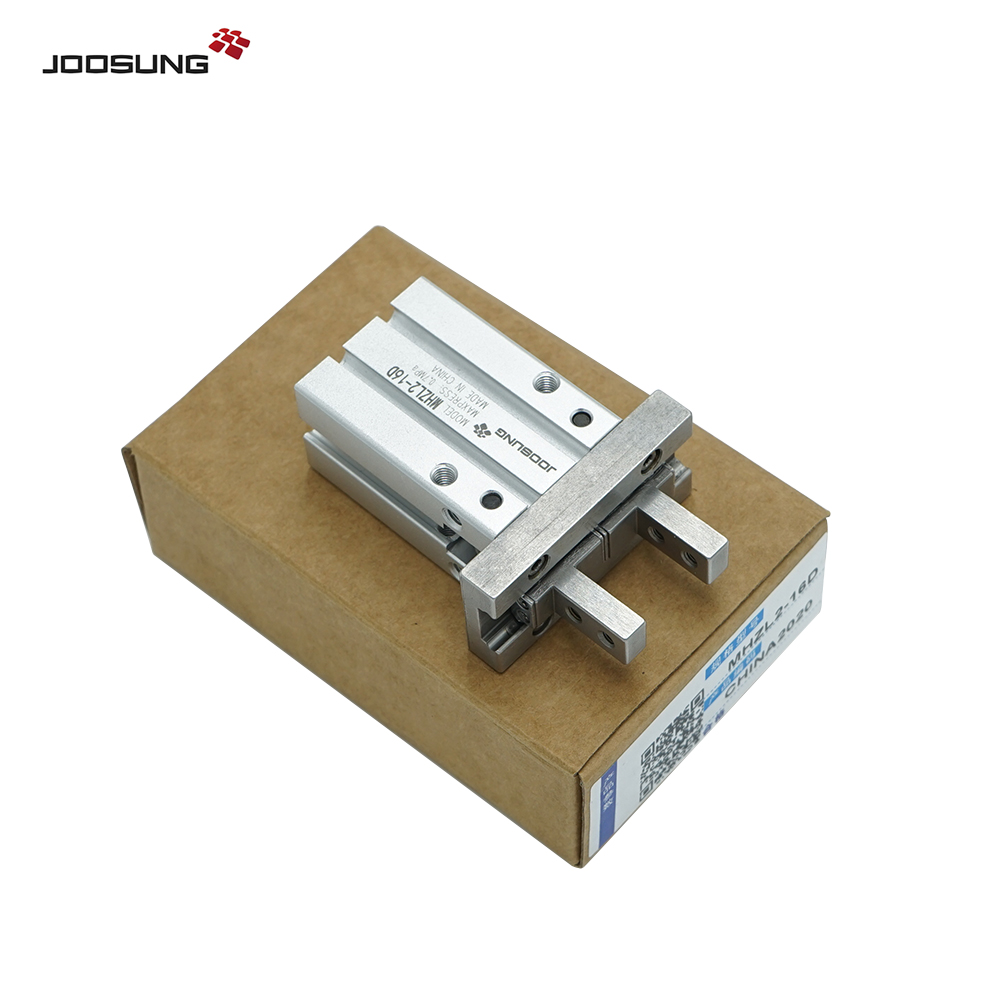

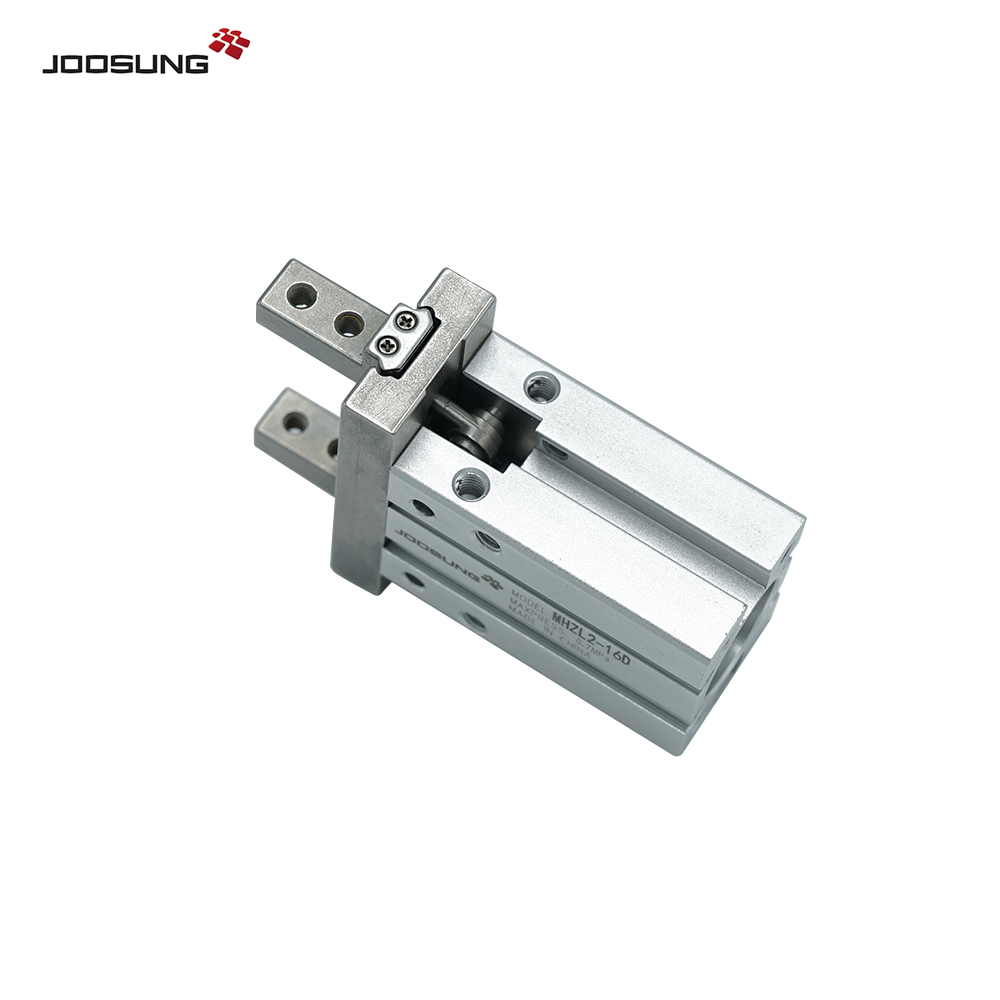

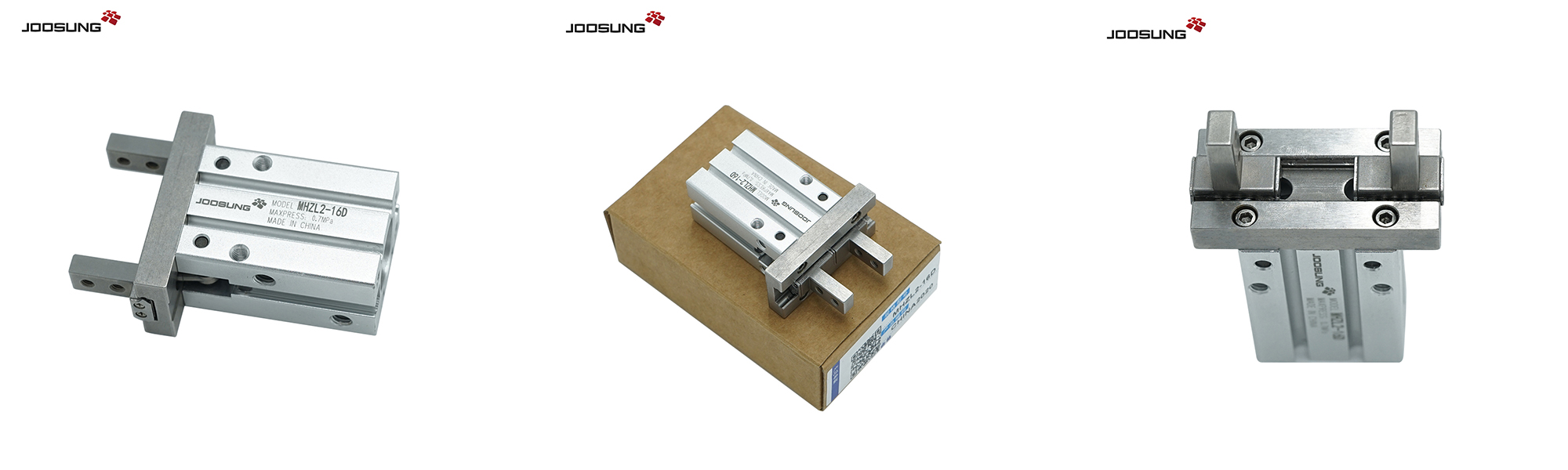

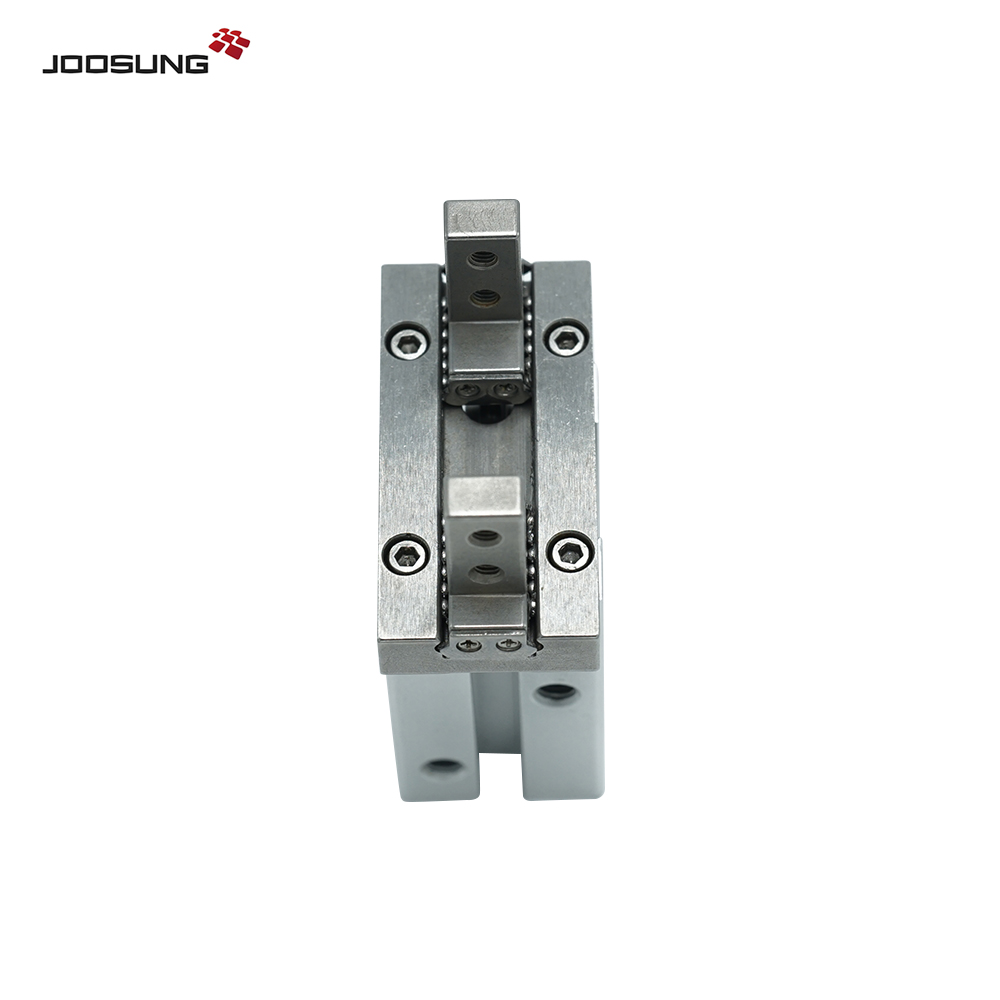

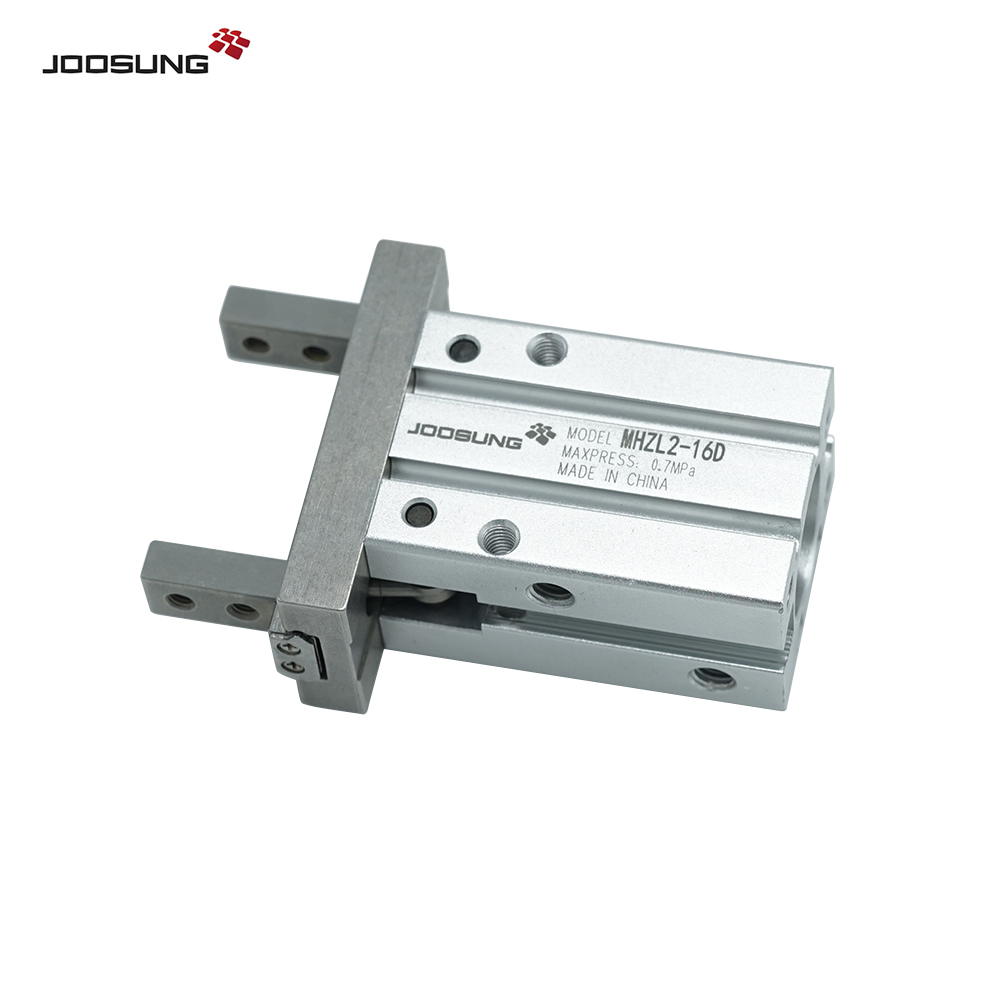

MHZL2 Series Parallel Pneumatic Gripper – Long Stroke Type
CompactPreciseExtended Reach
The MHZL2 Series Parallel Gripper is a long-stroke pneumatic gripper designed for handling a wide range of object sizes. Built with a linear guide and double piston mechanism, it delivers stable, strong, and accurate gripping for demanding automation tasks. Available in both single and double acting types, the MHZL2 Series is ideal for applications requiring greater opening range without compromising precision.
Key Features of MHZL2 Series Grippers
Long stroke design handles larger or varying-sized parts with ease.
Integrated linear guide provides high rigidity and smooth movement.
Double piston structure ensures powerful and reliable gripping force.
Compact and lightweight, suitable for installations in limited spaces.
High precision, ideal for delicate or repeatable handling tasks.
Multiple mounting options (3 sides, 5 positions) for easy integration.
Available in N.O., N.C., and double acting versions for flexible use.
Application Fields
The MHZL2 Series Long Stroke Pneumatic Gripper is widely used in:
Pick-and-place operations with varied part sizes
Material handling in automated production lines
Robotic gripping systems and end-of-arm tooling
Assembly, testing, and packaging processes
Any automation task requiring extended jaw travel with reliable precision
Request a Quote Today
JoosungAuto is your trusted manufacturer of pneumatic automation components from China. Our products include MHZL2 Long Stroke Grippers, MHZ2 standard grippers, MHY2 angular grippers, and more standard cylinders and solenoid valves.
With fast delivery, OEM support, and flexible customization, JoosungAuto offers reliable and cost-effective solutions to customers worldwide. All MHZL2 grippers are engineered for long life, high performance, and easy installation.
Visit us:
www.joosungauto.com
www.autojoosung.com
Contact Us:
Email: bob@joosungauto.com
WhatsApp: +86 137 8010 1113
#MHZL2Gripper #LongStrokeGripper #ParallelGripper #PneumaticAutomation #JoosungAuto #OEMGrippers
Action | Model | Bore Size | Gripping force | Opening/Closing stroke | ||
(mm) | Gripping force per finger | (Both sides) (mm) | ||||
Effective value (N) | ||||||
External | Internal | |||||
Double acting | MHZL2-10D | 10 | 11 | 17 | 8 | |
MHZL2-16D | 16 | 34 | 45 | 12 | ||
MHZL2-20D | 20 | 42 | 66 | 18 | ||
MHZL2-25D | 25 | 65 | 104 | 22 | ||
Single acting | Normally open | MHZL2-10S | 10 | 7.1 | - | 8 |
MHZL2-16S | 16 | 27 | 12 | |||
MHZL2-20S | 20 | 33 | 18 | |||
MHZL2-25S | 25 | 50 | 22 | |||
Normally closed | MHZL2-10C | 10 | - | 13 | 8 | |
MHZL2-16C | 16 | 38 | 12 | |||
MHZL2-20C | 20 | 57 | 18 | |||
MHZL2-25C | 25 | 85 | 22 | |||
